ADVANTEST R3162 User Manual

R3132 Series Spectrum Analyzer Operation Manual
2.1.2 Screen Annotation
2-12
2.1.2 Screen Annotation

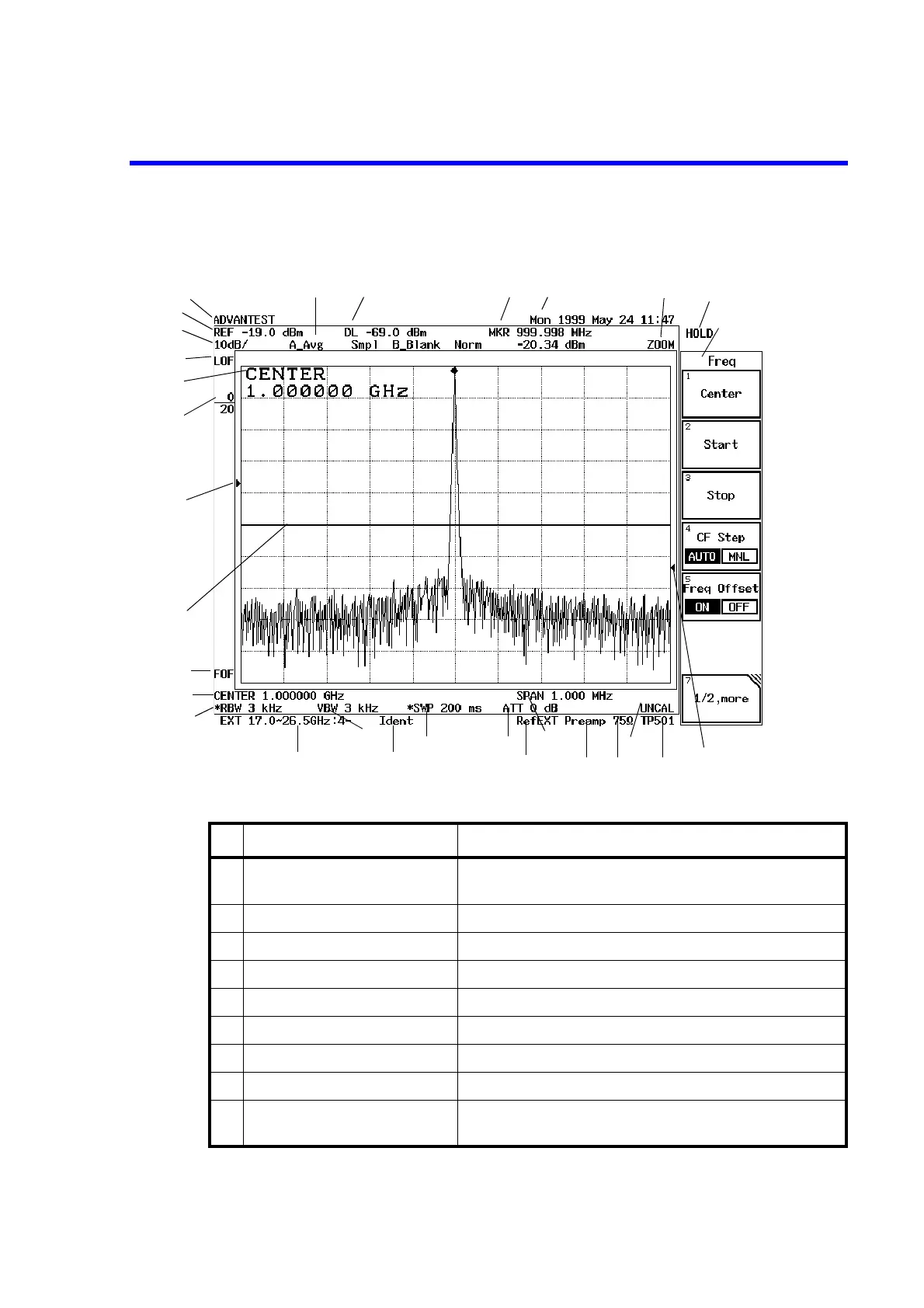

Figure 2-4 Screen Annotation
Annotation Description
1 Title Displays the title you have entered to distinguish the current
data from other data
2 Reference level Current reference level
3 Amplitude scale Current amplitude scale graduation
4 Trace Trace mode and search mode which are currently selected
5 Line setup display Shows values for the display line
6 Marker area Frequency and level of a marker
7 Date Current date and time
8 Soft-menu Menu item corresponding to the soft key
9 Center frequency or
Start frequency
Indicates the frequency at the center of the current display
1
2
3
45 67
8
9
10
11
12
13
14 15
16 17
18
19
20
21
22
23
24
25
26
27 28
29
30
