R3132 Series Spectrum Analyzer Operation Manual
2.2.14 Entering User-definable Antenna Correction Data
2-51
11. Press RECALL.
The Recall menu used and the file list are displayed.
12. Press Device RAM/FD to specify FD.
Floppy disk is selected.
13. Select the file and press Recall.
The correction data table is read out.
Verifying the imported correction data table
This confirms that the correction data table has been read into the spectrum analyzer.
14. Press SHIFT and 1(EMC).
The EMC menu is displayed.

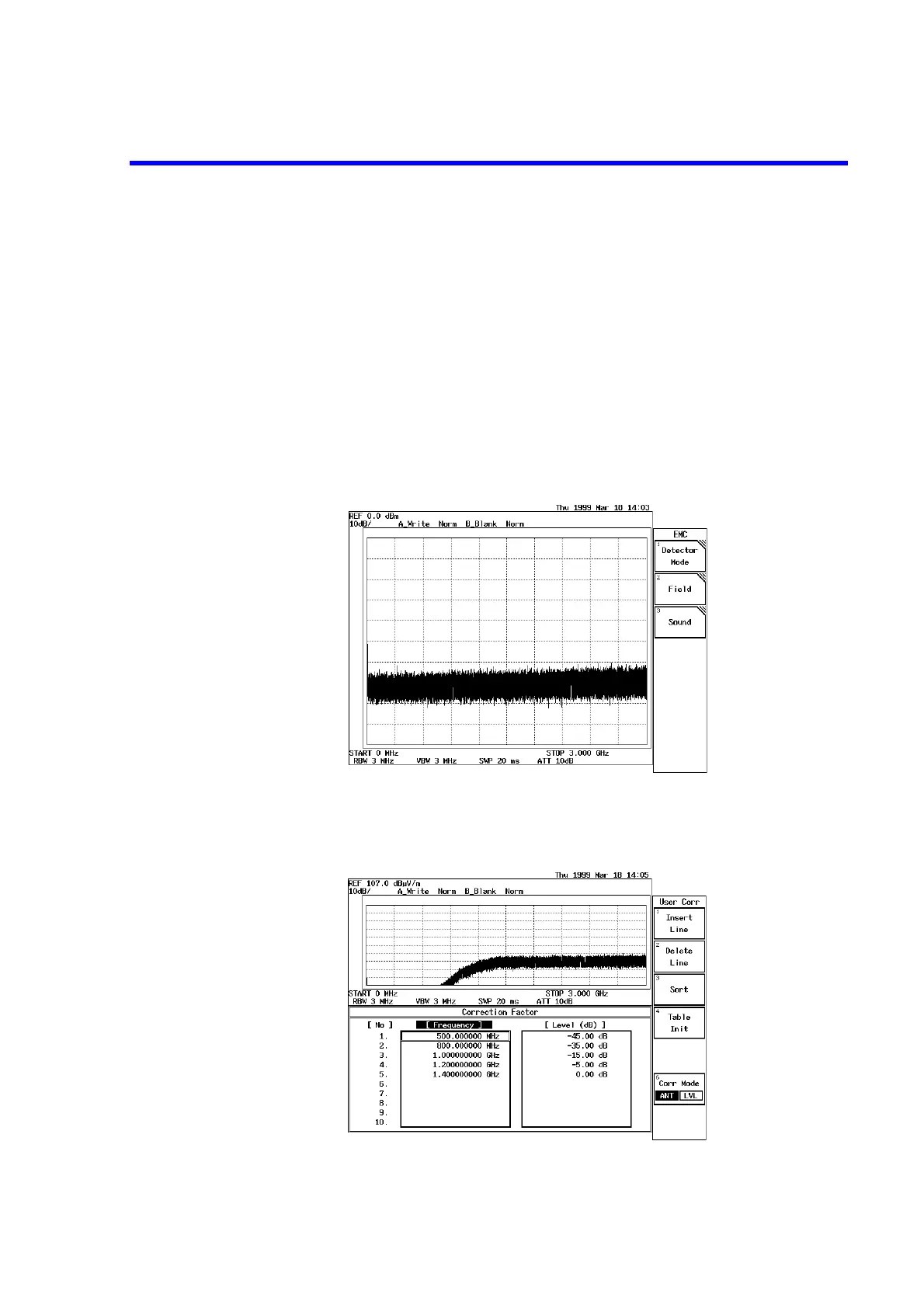

Figure 2-44 Screen for the EMC Menu
15. Press Field, User ANT Corr.
The edited data in the correction data table is displayed.
Figure 2-45 Screen Display Showing the User-Definable Correction Data Table
