2.2.9 Measuring low level signals
2-38
2.2.9 Measuring low level signals
Reducing the noise level allows you to measure low-level signals. The noise level can be reduced by nar-
rowing the resolution bandwidth. If the video bandwidth is set or the averaging function is used, you can
observe the signals that are lost in the noise. Additionally, using the built-in pre-amplifier allows you to
measure still lower level signals.
Setup
1. Connect the signal generator as shown in Figure 2-27.

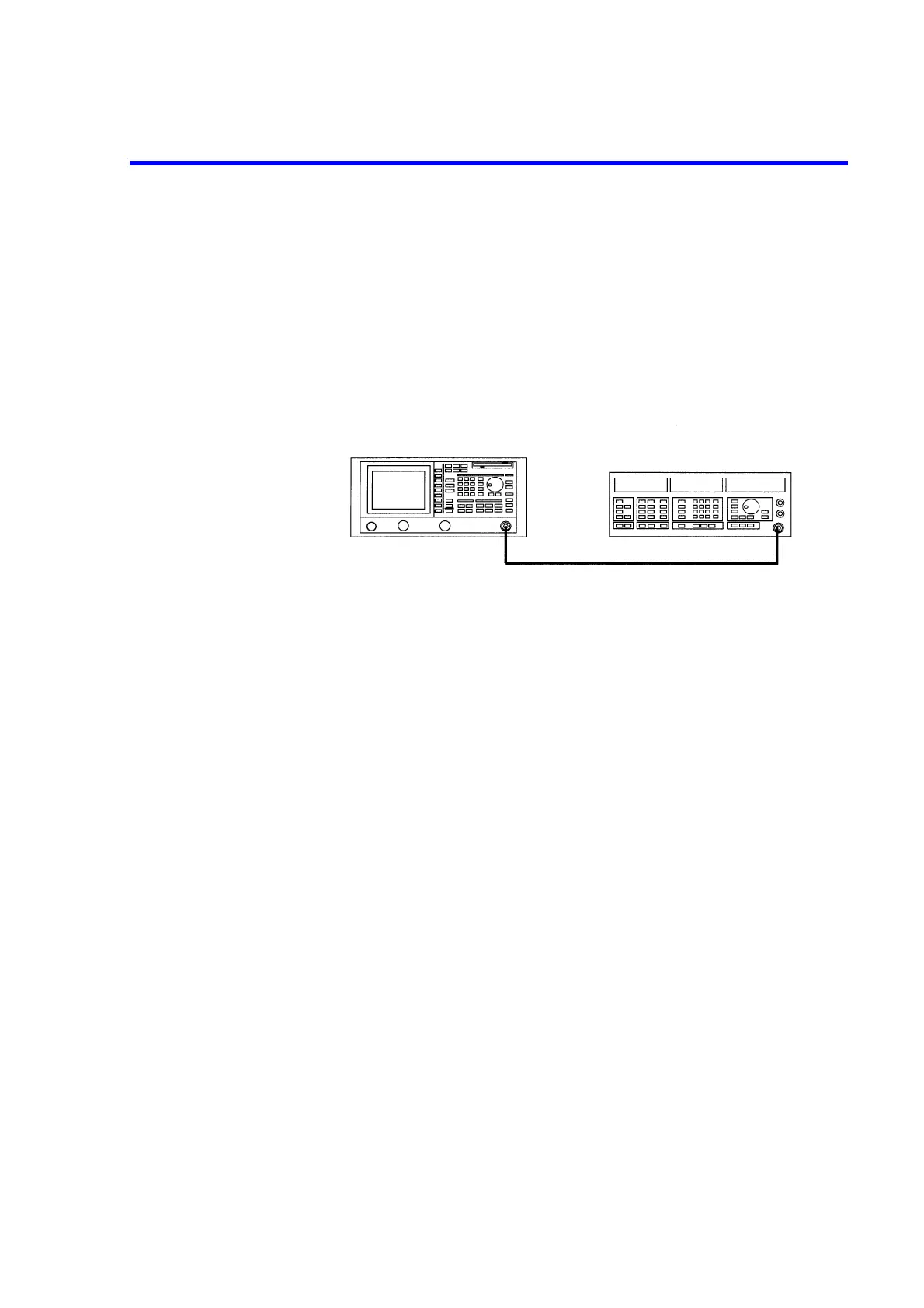

Figure 2-27 Setup for Verifying the Dynamic Range
Power on
2. Turn the power on.
Setting the signal generator
This prepares the signal generators for output.
3. Set the SG frequency to 200 MHz; the SG1 level to -80 dBm; modulation mode
to non-modulated; and output to ON.
Initialization
This resets the current settings to the factory defaults
4. Press SHIFT and CONFIG(PRESET).
The default settings have now been reset.
Setting the measurement conditions
This changes the analyzer settings so that the input signal is displayed more clearly.
5. Press FREQ, 2, 0, 0 and MHz.
A center frequency of 200 MHz is set.
6. Press SPAN, 5, 0, 0 and kHz.
A frequency span of 500 kHz is set.
Signal generator
RF INPUT 1
connector
OUTPUT
connector
R3132 Series Spectrum analyzer
