R3132 Series Spectrum Analyzer Operation Manual
5.2.11 Residual FM
5-42

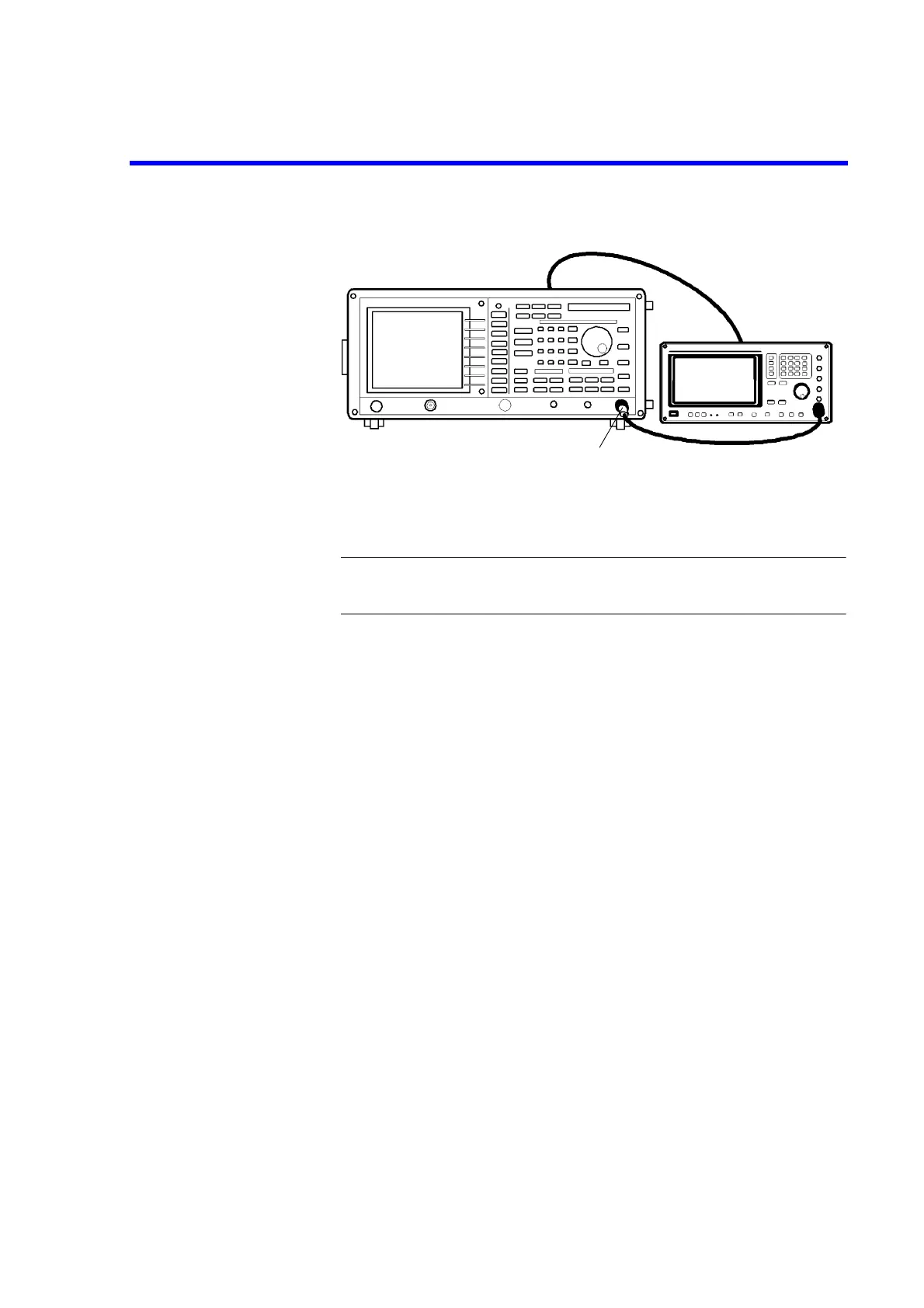

Figure 5-11 Setup of Residual FM Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
2. On the signal generator, set controls as follows:
Frequency: 2.5 GHz
Output Level: -10 dBm
3. On the R3132 series, after preset, set controls as follows:
Center Frequency: 2.5 GHz
Frequency Span: 2 kHz
4. On the R3132 series, press PK SRCH to capture the signal peak.
5. On the R3132 series, press as follows to set signal track mode to on.
MKR, Sig Track ON/OFF(ON)
6. On the R3132 series, set controls as follows:
Frequency Span: 1 kHz
RBW: 1 kHz
7. On the R3132 series, press as follows to set signal track mode to off.
MKR, Sig Track ON/OFF(OFF)
8. On the R3132 series, set controls as follows:
Reference Level: -5 dBm
dB/div: 1 dB/div
Frequency Span: 2.5 kHz
Minimum
Loss Pad (*1)
*1 R3132N only
