R3132 Series Spectrum Analyzer Operation Manual
6.2.1 External Mixer Performance Verification Test Procedures
6-18
6.2.1.2 Frequency Response
Description:
Verify the external mixer frequency response against specification.
Firstly measure the source module out power with RF power meter and RF power sensor in the entire
frequency range by 100 MHz step, and record it as calibrated value.
Use two type power sensor depending frequency range, one is Q8486A for 40 GHz to 50 GHz. The
other is V8486A for 50 GHz to 60 GHz.
Secondary connect external mixer to the source module, and then measure the frequency response on
the R3172/R3182 screen in the entire frequency range by 100 MHz step, and record it as measured
value.
Calculate between the calibrated value and measured value for the frequency response.
Specification:
Frequency Range: 40.0 to 60.0 GHz, ±5 dB
Equipment required:
Sweeper: 83640 (SG)
Source Module: 83556A
10 dB Fixed Attenuator: 521U
RF Cable: DCP-FF00092X02
RF Power Meter: 437B
RF Power Sensor: Q8486A (40 GHz to 50 GHz)
V8486A (50 GHz to 60 GHz)
Spectrum Analyzer: R3172/R3182
Setup
Source Module Calibration

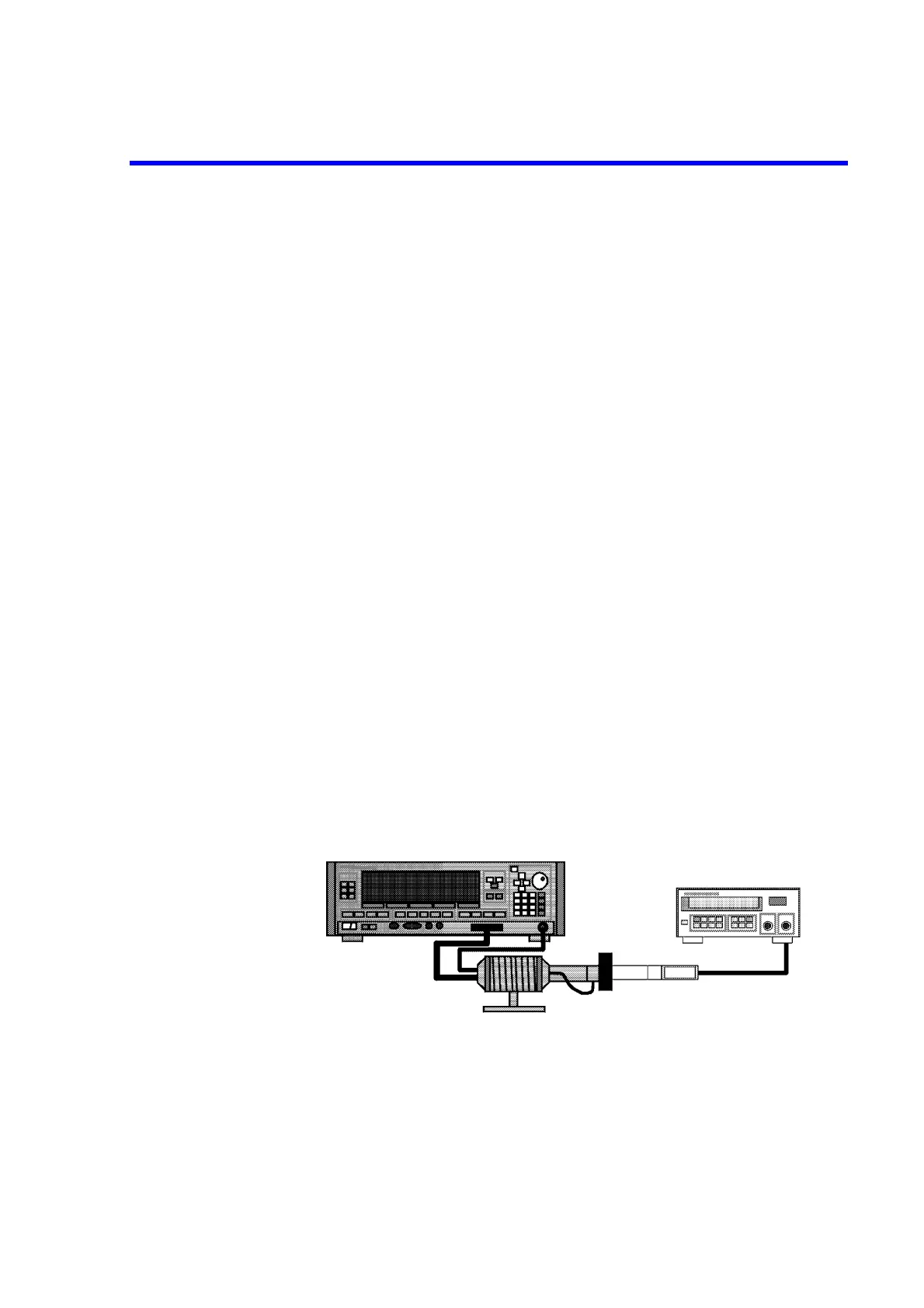

Figure 6-5 Setup of Source Module Calibration
Sweeper (83640)
Power Meter
(437B)
Source Module
(83554A)
10 dB
(521U)
Power Sensor
Q8486A (40 GHz to 50 GHz)
V8486A (50 GHz to 60 GHz)
