R3132 Series Spectrum Analyzer Operation Manual
5.2.20 Sweep Time Accuracy
5-83
5.2.20 Sweep Time Accuracy
A Square Wave is displayed on the R3132 series in ZERO span mode, and measure the frequency of the
displayed signal using video trigger.
Specification:
±2% of sweep time setting
Instruments Required:
Procedures:
Setting the measurement conditions
1. Connect the signal generator as shown in Figure 5-20.

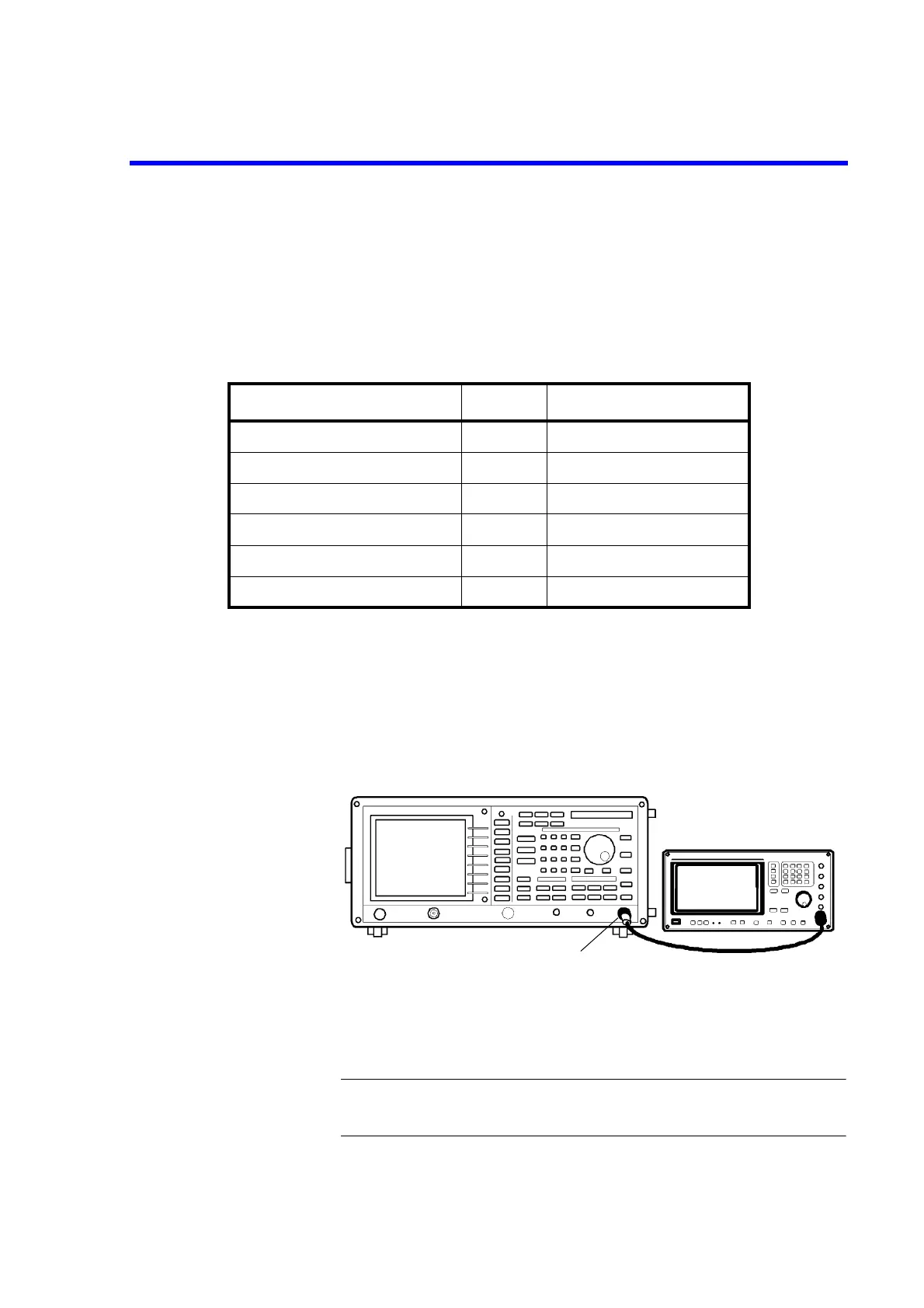

Figure 5-20 Setup of Sweep Time Accuracy Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
Instruments Qty. Recommended Model
Signal Generator 1 SMT02
RF Cable BNC(m)-BNC(m) 1 MI-09
Minimum Loss Pad 1
* 1
HP11852B
Adapter N(m)-BNC(f) 2
Adapter SMA(f)-SMA(f) 1
*2
Adapter SMA(m)-BNC(f) 1
*2
*1 R3132N Only
*2 R3182 Only
Minimum
Loss Pad (*1)
*1 R3132N only
