R3132 Series Spectrum Analyzer Operation Manual
4.2.10 Example Programs
4-56
4.2.10.3 Sample Programs for Inputting or Outputting Trace Data
Trace data on the screen includes data for 501 or 1001 points on the frequency axis. For inputting and out-
putting data, it is necessary to transfer data for 501 or 1001 points from the left side (start frequency) in
order. Each point level is expressed by an integer from 1792 to 14592 (however, if the trace exceeds the
upper limit of the vertical scale, a value greater than 14592 is transferred).

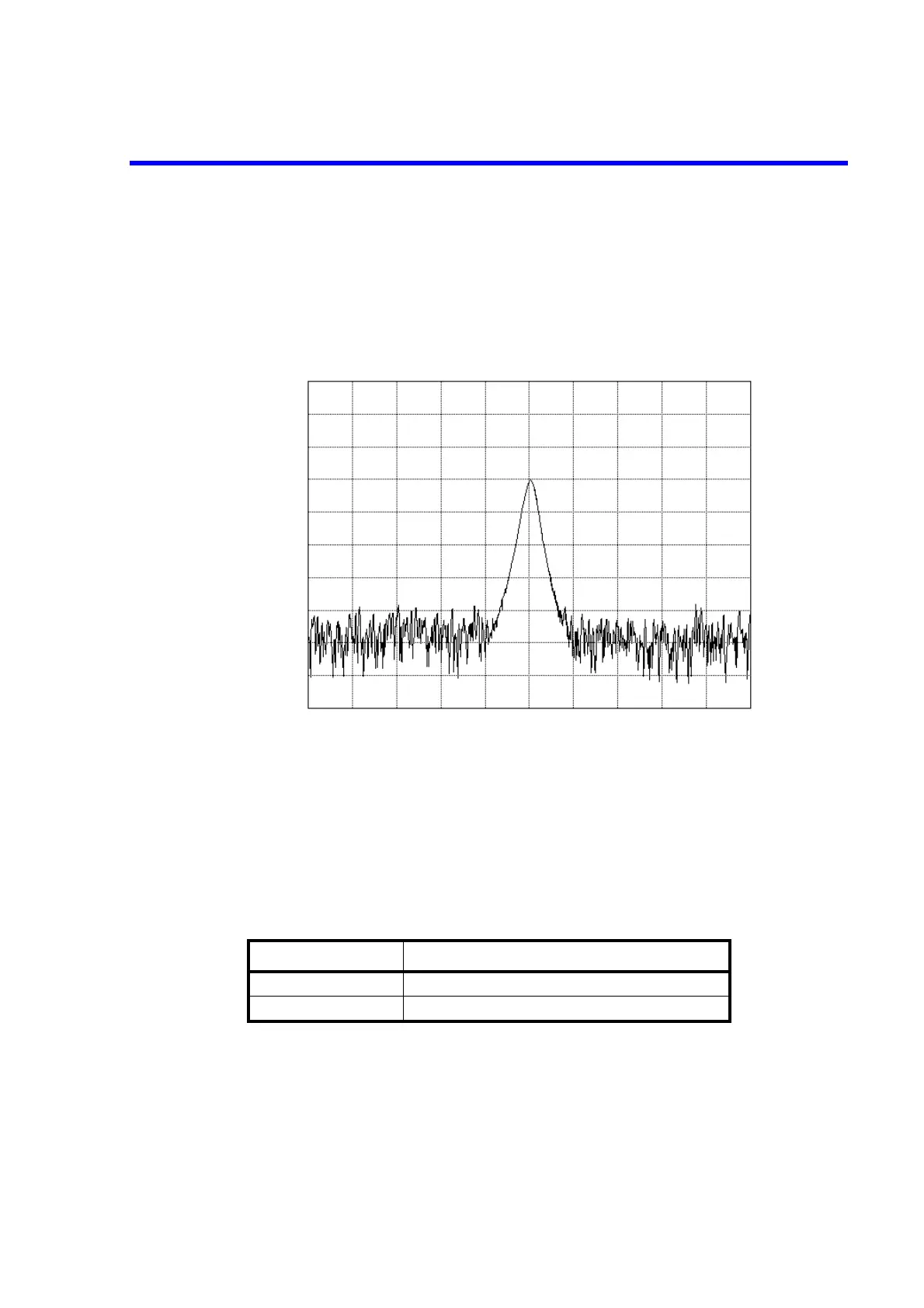

Figure 4-4 Relationship between Screen Graticule and Trace Data
Trace data can be input or output in either ASCII or binary format.
Table 4-26 Trace Accuracy Specification Codes
GPIB Code Description
TPS Sets the number of measurement points to 501.
TPL Sets the number of measurement points to 1001.
14592
1792
Trace data value
1 101 201 301 401 501 601 701 801 901 1001
(51) (101) (151) (201) (251) (301) (351) (401) (451) (501)
Number of data points
