R3132 Series Spectrum Analyzer Operation Manual
2.4.2 Saving or Recalling Data
2-111

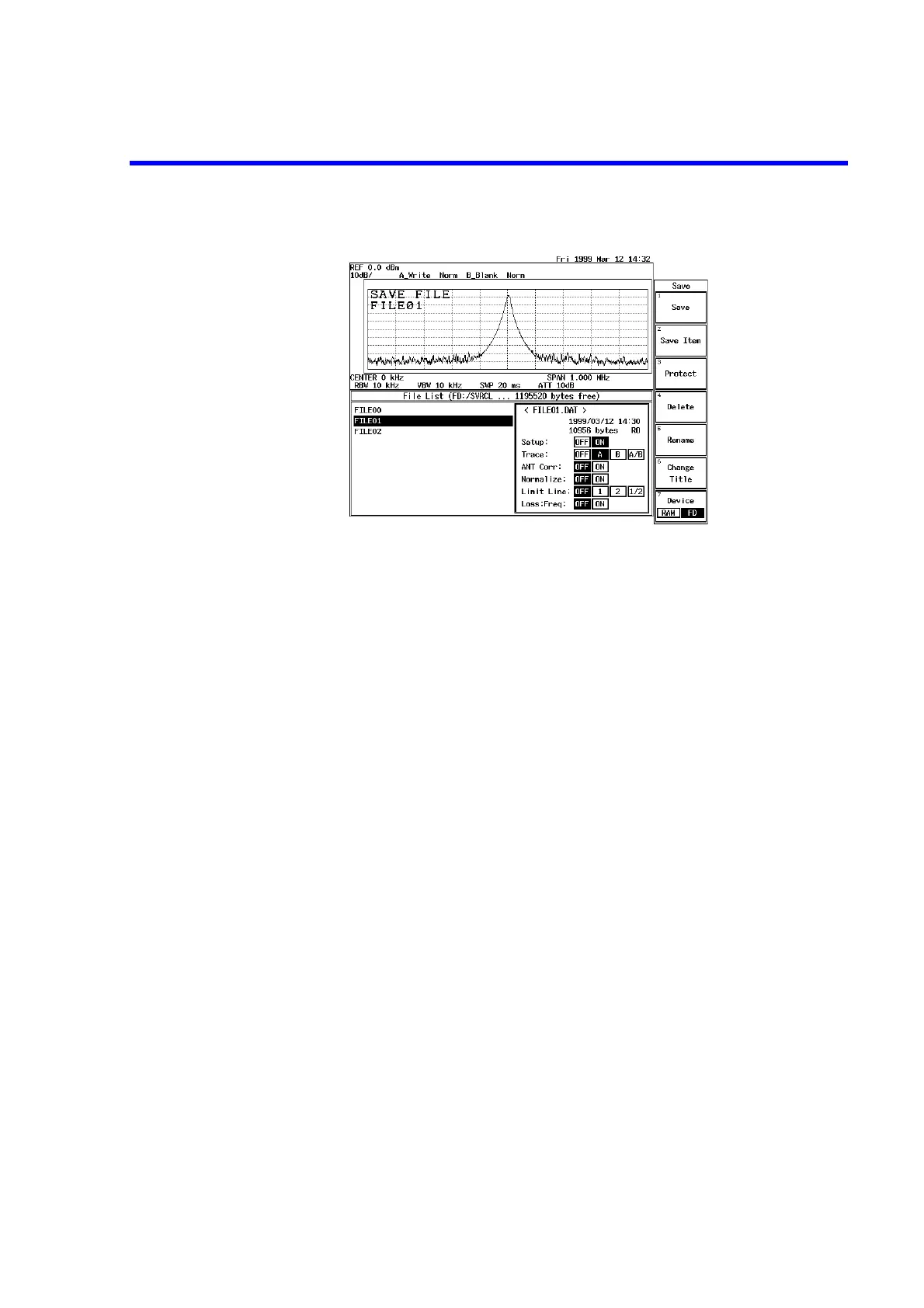

Figure 2-111 Screen Display Showing File Protection Enabled
(3) Loading Data
The saved conditions and trace data can be used for measurements. Use the following procedure to
access this data.
Selecting the file source
1. Press RECALL.
The Recall menu and file list are displayed.
2. Press Device RAM/FD.
Select either RAM (internal memory) or FD (floppy disk). For this example, FD
is selected.
Selecting the file
3. Select the file from the file list using the data knob.
To Next Page
