R3132 Series Spectrum Analyzer Operation Manual
5.2.13 Image, Multiple and Out-of-Band Responses
5-48
Procedures:
Setting the measurement conditions
1. On the power meter, perform the zeroing and calibration with power sensor.
2. On the power meter, set the unit into dBm mode, after calibration has done.
3. On the power meter, set the correction frequency to 2 GHz.
4. Connect the power meter and signal generator as shown Figure 5-13.

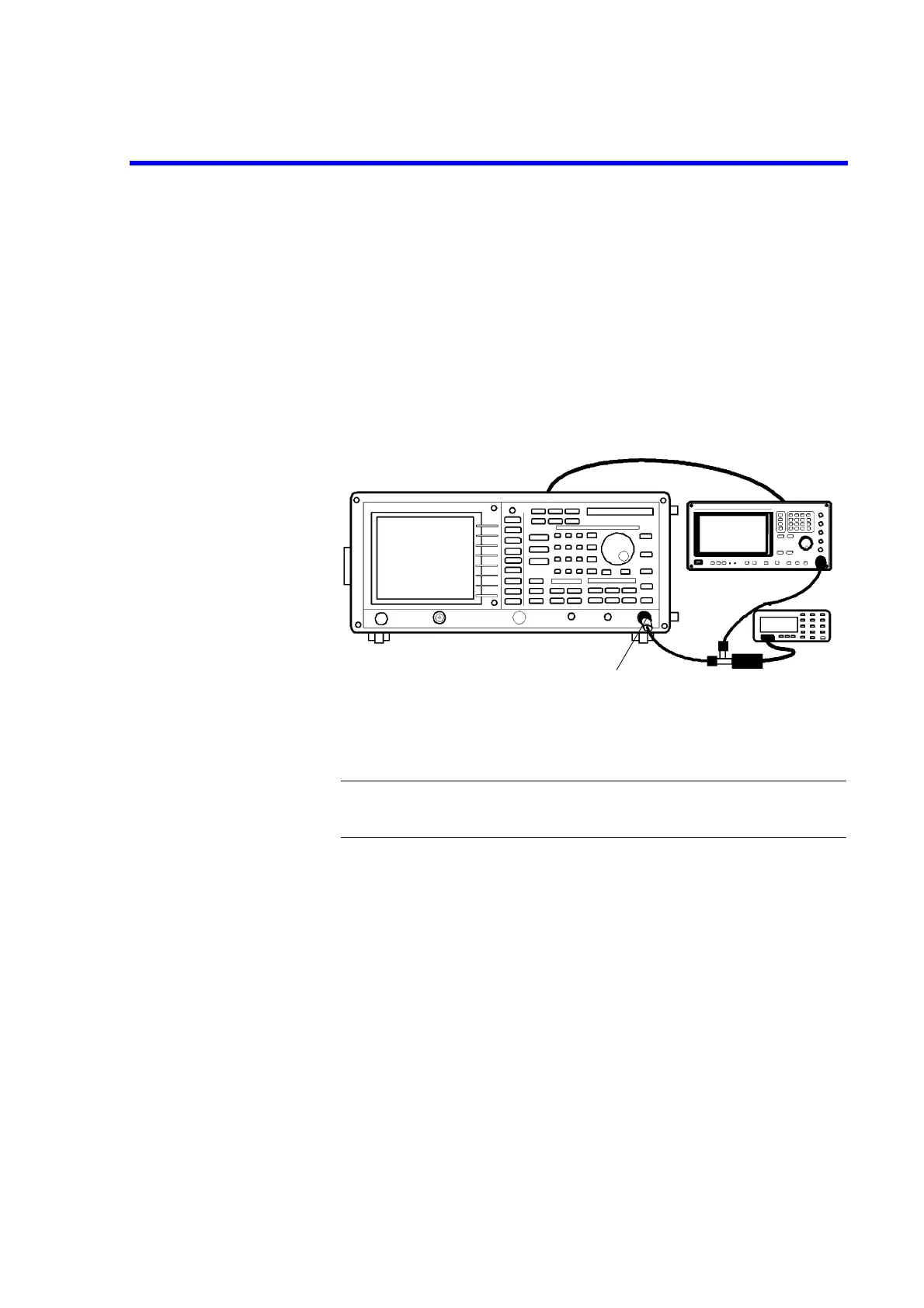

Figure 5-13 Setup of Image, Multiple and Out-of-Band Responses Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
5. On the signal generator, set controls as follow:
Output Level: 0 dBm
6. On the R3162/72/82, after preset, set controls as follows:
Frequency Span: 5 MHz
RBW: 100 kHz
VBW: 300 kHz
Measuring the Image, Multiple and Out-Of-Band Response
7. On the signal generator, set controls as follow:
Frequency: 2 GHz
8. On the R3162/72/82, set controls as follow:
Center Frequency: 2 GHz
Minimum
Loss Pad (*1)
*1 R3132N only
To Next Page
