R3132 Series Spectrum Analyzer Operation Manual
5.2.2 Calibrator Amplitude Accuracy
5-10

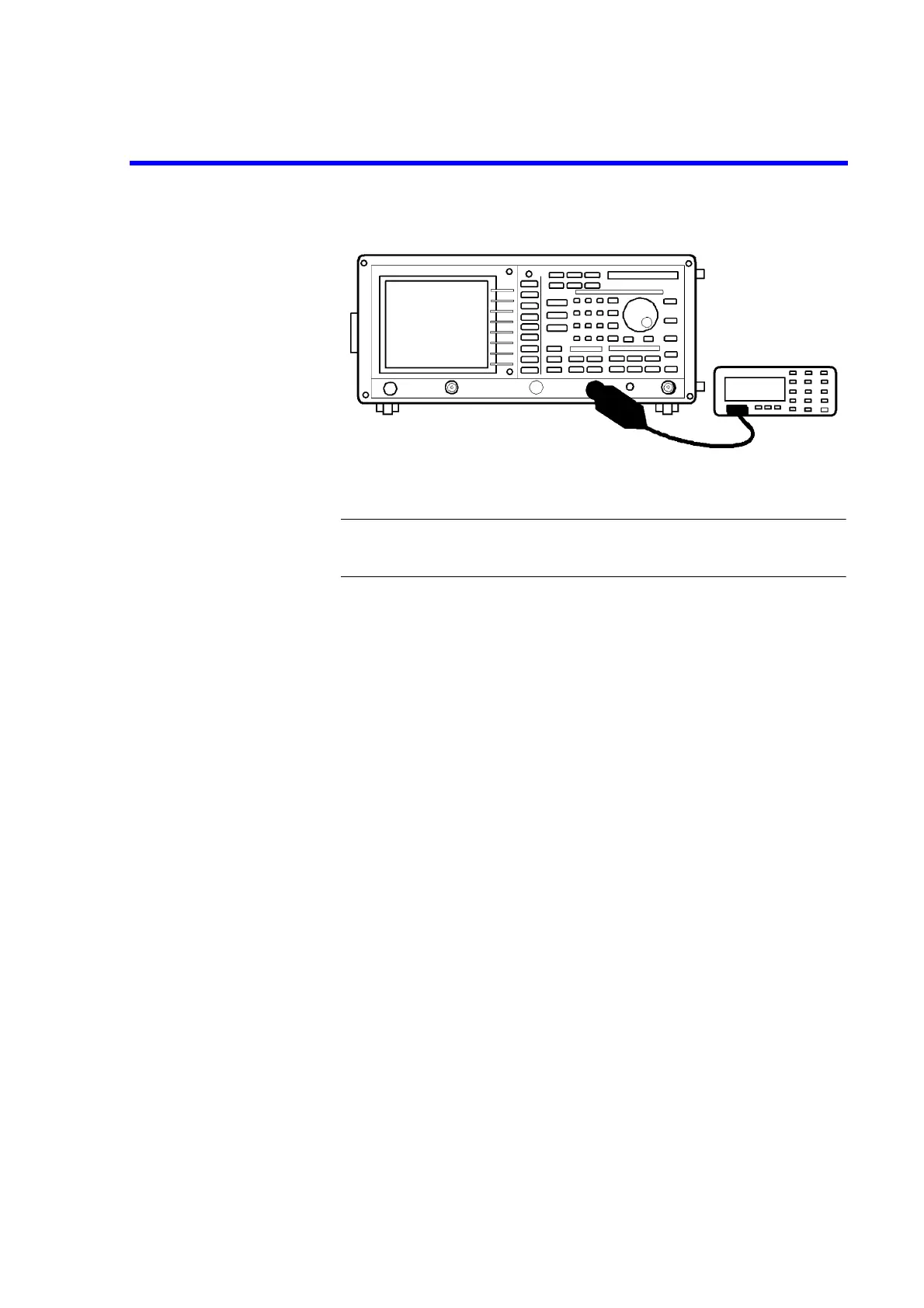

Figure 5-2 Setup of CAL OUT Level Accuracy Test
CAUTION: Use only 75
Ω
ΩΩ
Ω
cables, connectors, or adapters on R3132N, or damage
to the input connector will occur.
6. Record the level of the power meter reading on the performance verification
check sheet.
