R3132 Series Spectrum Analyzer Operation Manual
6.3.1 External Mixer Performance Verification Test Procedures
6-35
Frequency Response

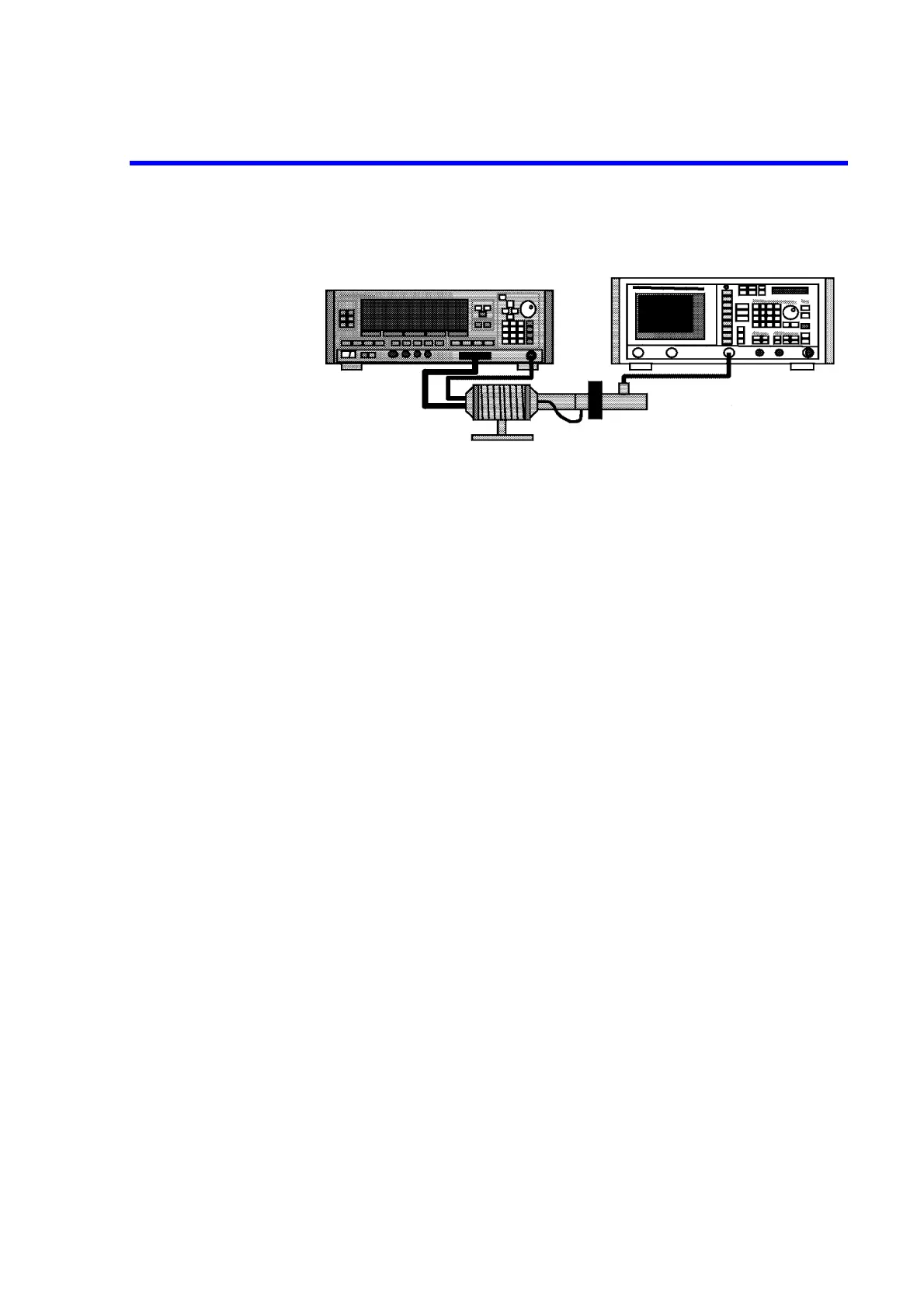

Figure 6-9 Setup of Frequency Response Test
Procedure
Part 1 Source Module Calibration
1. On the RF power meter, perform ZERO and calibration with the RF power sen-
sor.
2. Connect equipment as shown in Figure 6-8.
3. On the SG, set controls as follows;
Output Frequency: 50.0 GHz
Output Level: 0 dBm
4. On the RF power meter set correction data for 50.0 GHz.
5. Measure the source module output level, and then record it in calibrated value
column on the performance verification test record sheets.
6. On the SG, set control as follow;
Output Frequency: 50.1 GHz
7. On the RF power meter set correction data for 50.1 GHz.
8. Measure the source module output level, and then record it in calibrated value
column on the performance verification test record sheets.
9. Repeat steps 6 through 8 for the SG output frequency and RF power meter cor-
rection data up to 80 GHz by 100 MHz steps.
Part 2 Frequency Response Test (Frequency Range: 50 GHz to 75 GHz)
10. Connect equipment as shown in Figure 6-7.
11. Insert the correction data floppy disk.
Sweeper (83640)
R3172/R3182
Source Module
(83557A)
10 dB
(5421V)
Ext. Mixer
(WHMB-15S)
RF Cable
(DCP-FF00092X02)
