R3132 Series Spectrum Analyzer Operation Manual
2.2.3 Measuring Window and the Display Line
2-26
Removing the lines
This removes the display and reference lines.
10. Press Disp Line ON/OFF two times.
OFF is selected and the display line is removed.
11. Press Ref Line ON/OFF two times.
OFF is selected and the reference line is removed.
Setting up the measuring window
12. Press Measuring Window.
The measuring window appears and the Window menu associated with the win-
dow settings is displayed.
The frequency for the current window position is listed in the active area, and the
window position can now be changed.
13. Move the measuring window by turning the data knob so that the measuring win-
dow center is aligned with the center of the peak to the right.
14. Press Window Width, 5, and MHz.
The width of the measuring window is set to 5 MHz.
(The width depends on the set frequency span.)

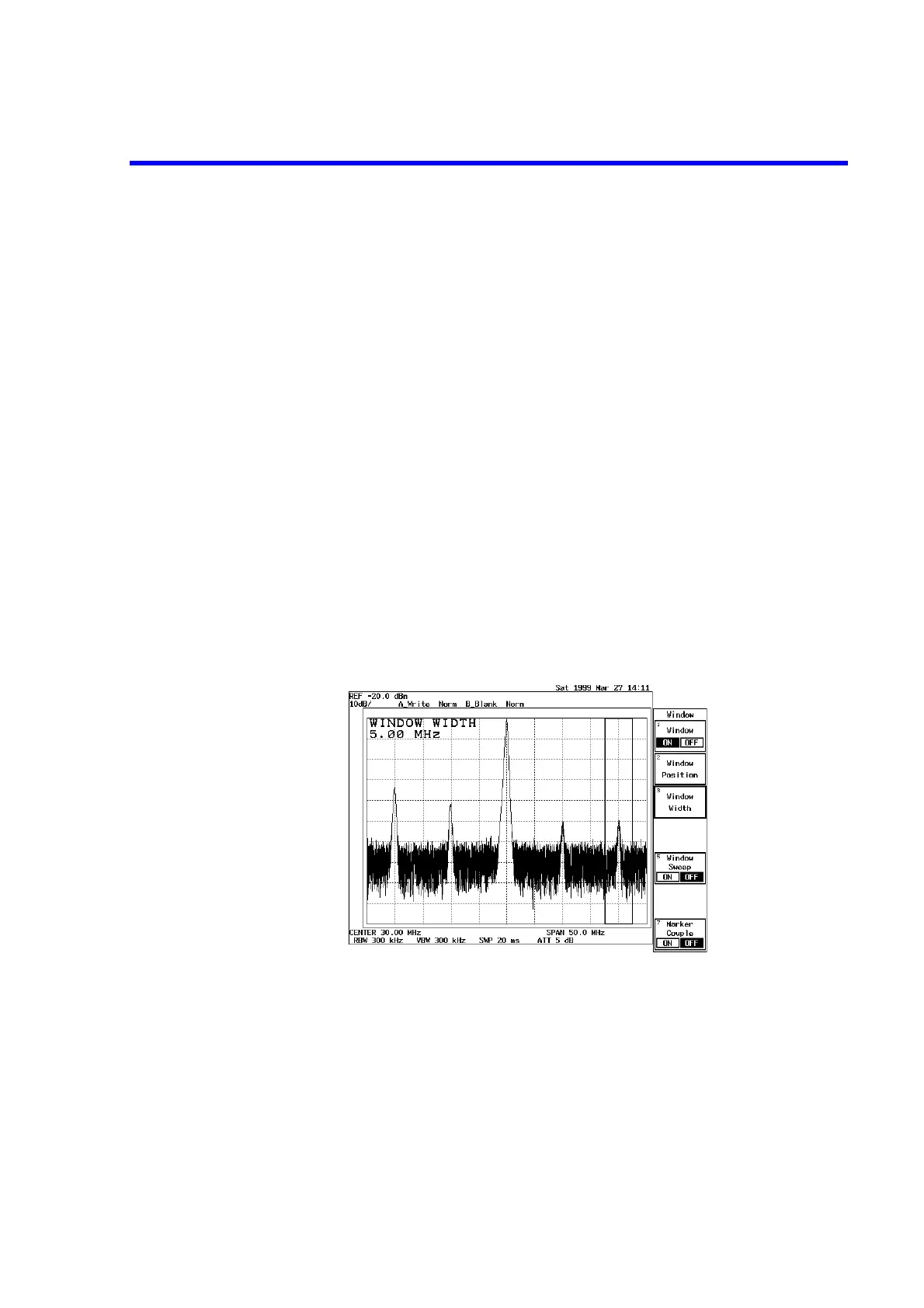

Figure 2-13 Screen Display Showing the Measuring Window
Stopping/starting a sweep within the measuring window:
15. Press Window Sweep ON/OFF(ON).
The area within the measuring window is swept.
16. Press Window Sweep ON/OFF(OFF).
The area within the measuring window is not swept.
To Next Page
