R3132 Series Spectrum Analyzer Operation Manual
2.2.8 Separating Two Signals
2-35

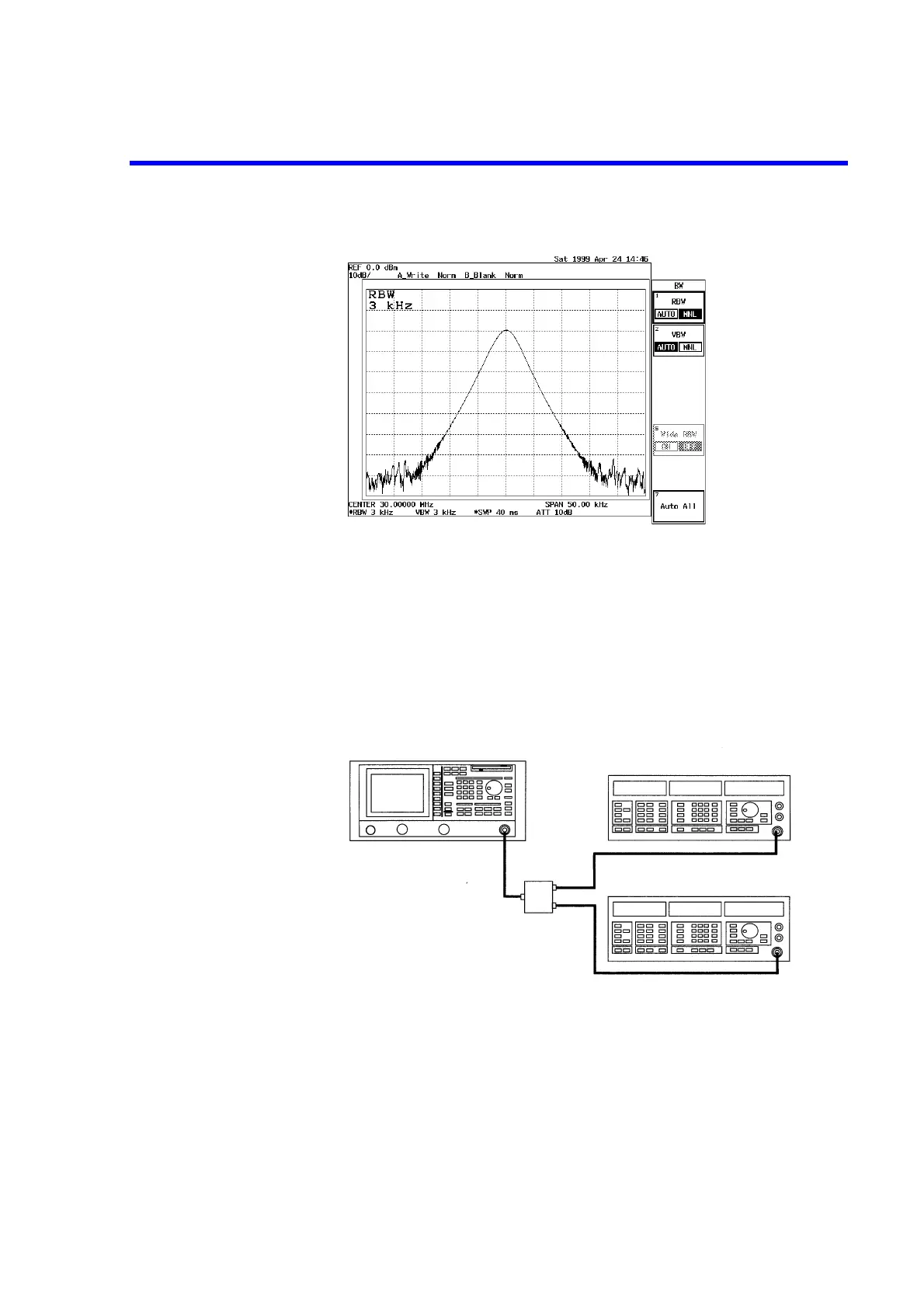

Figure 2-22 UNCAL Message Removed
2.2.8 Separating Two Signals
This section describes how RBW should be set to properly observe adjacent signals using the spectrum
analyzer.
Setup
1. Connect the signal generators as shown in Figure 2-23.
Figure 2-23 Setup for Measuring Two Signals Separately
Power on
2. Turn the power on.
R3132 Series Spectrum analyzer
Signal generator (SG1)
Signal generator (SG2)
Power combiner
(Insertion loss: 6 dB)
RF INPUT 1
connector
OUTPUT
connector
OUTPUT
connector
To Next Page
