R3132 Series Spectrum Analyzer Operation Manual
5.4 Performance Verification for OPT73 (FM Demodulation)
5-109
5.4 Performance Verification for OPT73 (FM Demodulation)
5.4.1 Offset Error (Internal Mixer Mode)
This section describes how to measure the difference between the frequency output from the frequency
generator and the frequency reading on FM Demod.
In the R3132 series, the frequency is phase locked on the signal generator’s 10 MHz reference signal.
Specification:
≤ (4% of the screen display range + K + Frequency reading × Frequency reference accuracy)
K: 8 kHz (Screen display range: 2.5 MHz to 250 kHz)
2 kHz (Screen display range: 100 kHz to 10 kHz)
Instruments Required
Procedures:
Setting the measurement conditions
1. Connect the instruments as shown in Figure 5-28.

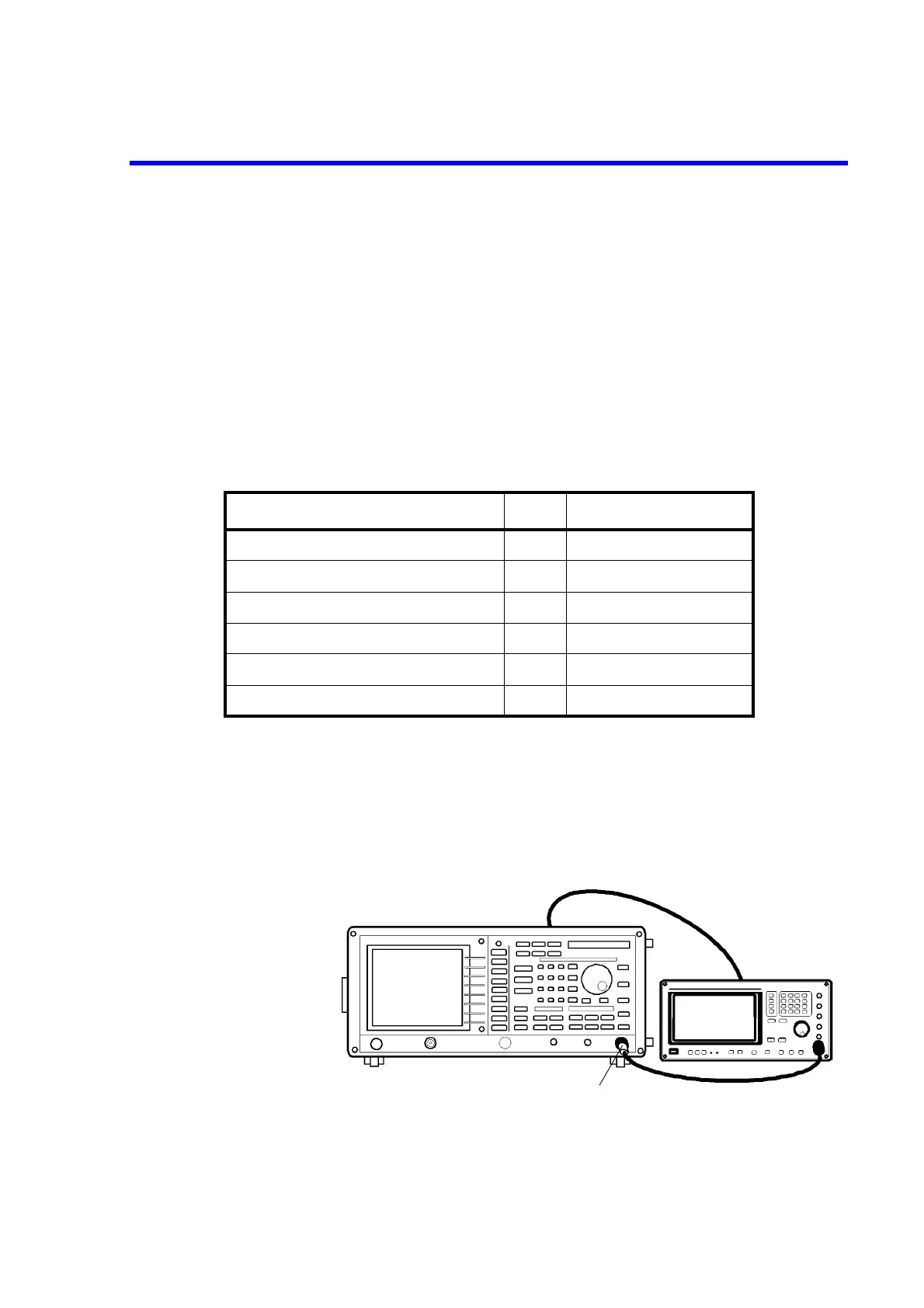

Figure 5-28 Setup for Checking the Offset Error (Internal Mixer Mode)
Instruments Qty. Recommended Model
Signal Generator 1 SMT02
Minimum Loss Pad 1
*1
HP11852B
RF Cable BNC(m)-BNC(m) 1 MI-09
RF Cable SMA(m)-SMA(m) 1 A01002
Adapter N(m)-SMA(f) 2
Adapter SMA(f)-SMA(f) 1
*2
*1 R3132N Only
*2 R3182 Only
Minimum
Loss Pad (*1)
*1 R3132N only
