310 Flame Ionization Detector (FID)
Replacement procedures
18 of 24
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
5. Route the ribbon cable behind the manifold assembly as shown in
Figure 310-14. Then, slide the manifold and bracket assembly into the
slot until the bracket seats flush against the end of the rails. See
Figure 310-15.

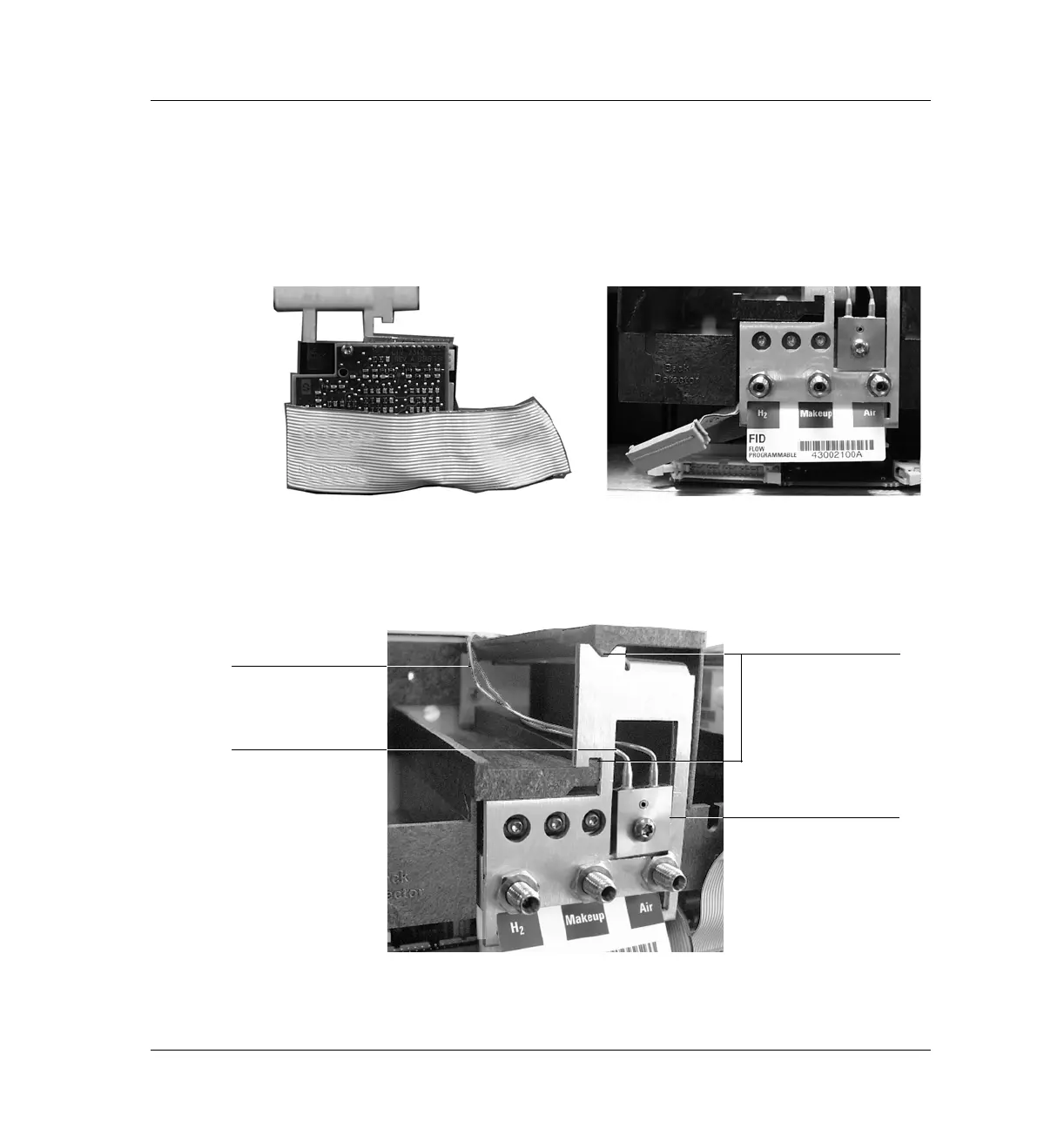

Figure 310-14 Routing the ribbon cable
Figure 310-15 Manifold, after installation
Back view of manifold Manifold installed with cable routed to left
Attach gang fitting
Bracket is flush with
Route tubing along
carrier rails
Check for interference
this path
