360 Auxiliary EPC
Replacement procedures
8 of 16
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual

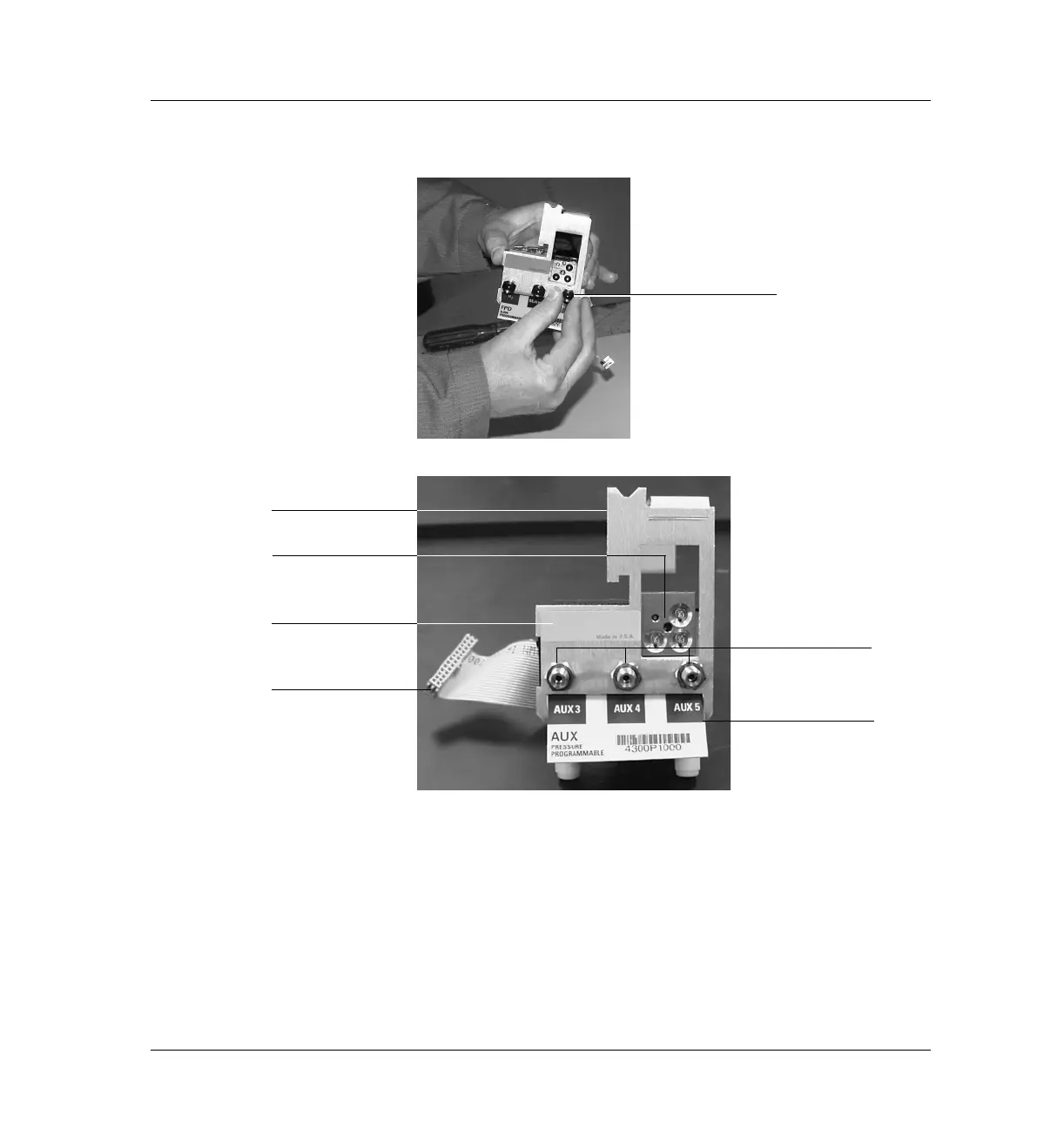

Figure 360-4 Bracket mounted onto the manifold
3. Peel the blank label from its backing and paste it on the mounting bracket
over the screw heads. See Figure 360-4.
4. If you need to change one or more auxiliary channel frits, do so now. See
the Agilent 6890 GC Operating Manual/CD-ROM.
Finger-tighten nuts.
Do not use a wrench.
(FPD shown above)
7/16-inch hex nuts
Mounting bracket
Gang fitting
Label ID tag
Ribbon cable
installs here
through slot
Apply blank label
in bracket
