118 Installation, Operation, and Maintenance
Part 2, Operation
6 Vials and Bottles
Placing Vials and Bottles in the Sampler
Two turrets are provided with the G2913A injector (Figure 53).
The labeled positions for the Hi-density turret are defined in Table 16. See
Table 17 for the positions in the Transfer turret.

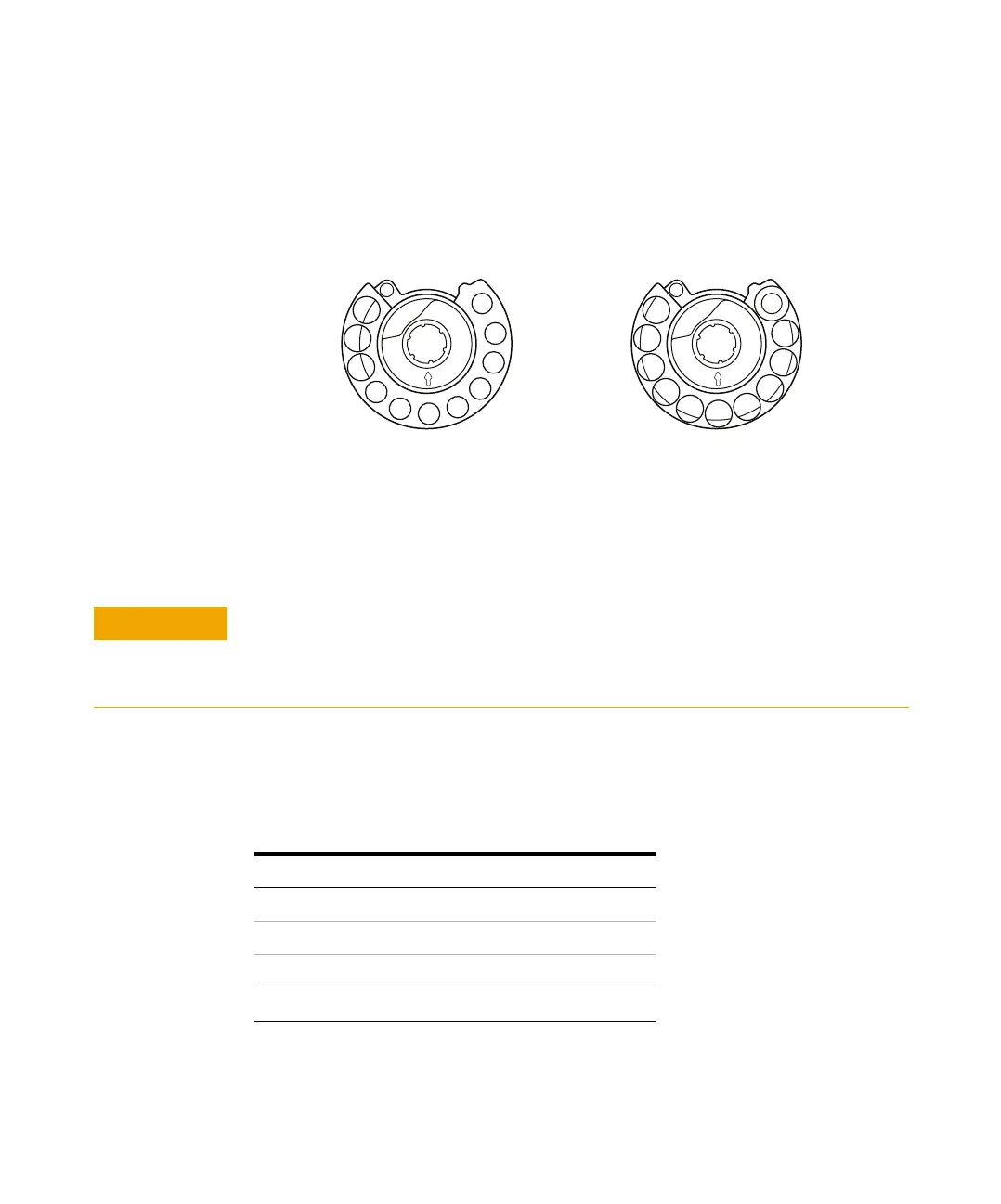

Figure 53 G2913 Injector turrets
Transfer turret
(1-sample)
Hi-density turret
(8-samples)
A
B
WA
8
2
1
3
4
5
6
7
SAMPLE
WB
WB
WA
WA
B3
B2
B
A3
A2
A
Top views. Labels are on sides.
11
10
9
8
7
6
5
4
3
2
1
CAUTION
We strongly recommend that all waste positions in all turrets contain bottles at all
times, regardless of which ones are actually used in the current configuration. This
protects against accidental discharge of solvent into the turret body, which could
damage it.
Table 1 6 Hi-density turret labels
Label Bottle/Vial
A Solvent bottle A
B Solvent bottle B
WA Waste bottle
1 through 8 Sample vials
