Tray quadrant temperatures and pressures
Do not allow the tray inlet pressure and temperature to exceed the limits in
Figure 75. If you operate outside this range, the quadrants could be damaged.
Water bath and pump specifications
The water bath and pump system used to control the sample vial temperatures
must meet these specifications.
• The components must meet national standards for safety requirements, be
suitable for unattended operation, be suitable for continuous operation,
and be controllable for high-temperature protection.
• The minimum cooling power required for the water bath is 100 W at bath
temperatures of 5 °C.

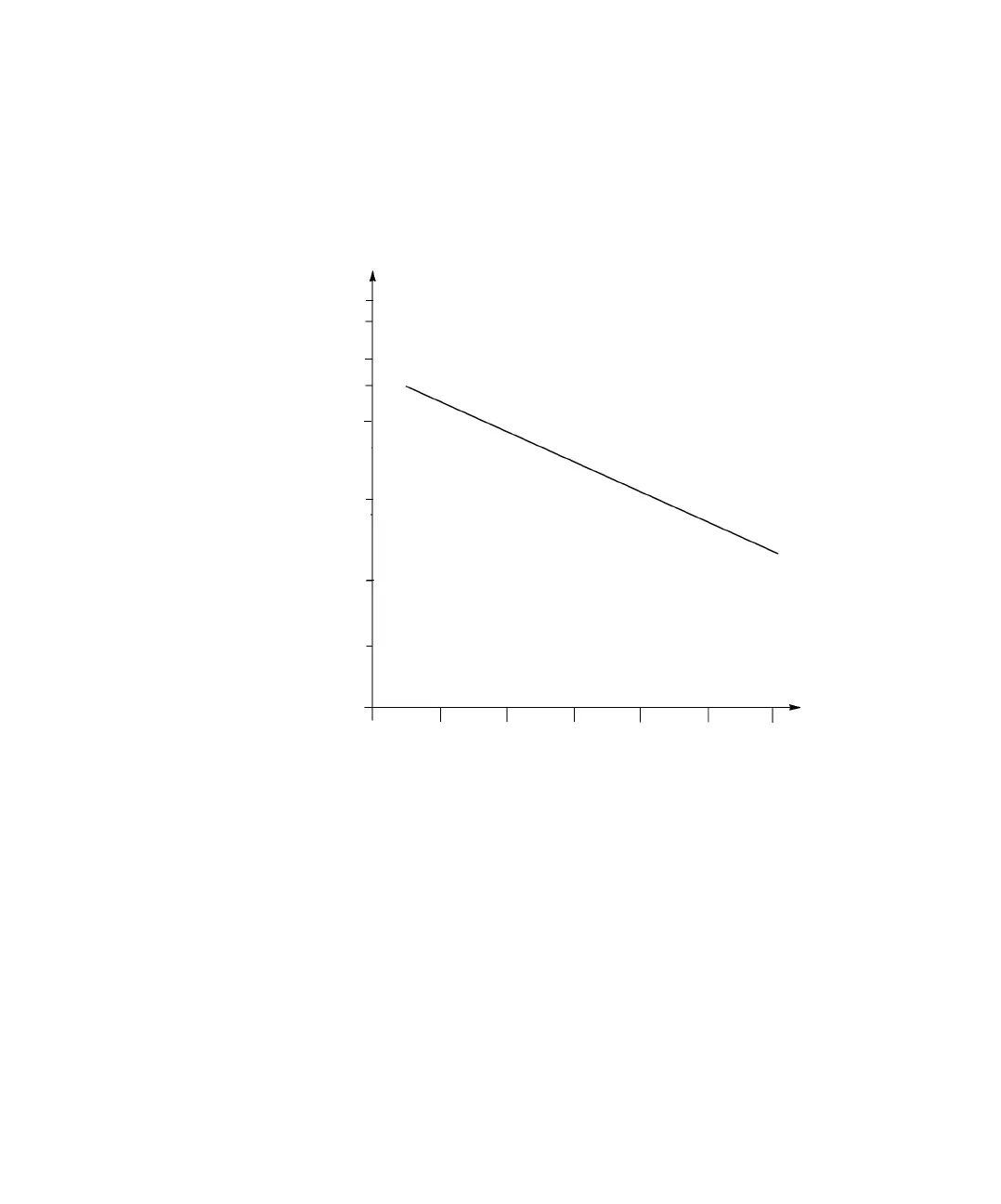

Figure 75 Maximum tray inlet pressures and temperatures
Tray inlet
pressure, psi
Tray inlet temperature, °C
6
5
3
2
1
0
0
10 20 30 40 50 60
