Maintenance 8
Installation, Operation, and Maintenance 141
Part 3, Maintenance and Troubleshooting
Installing a Syringe
To install a syringe (Figure 56):
1 Open the injector door.
2 Slide the syringe carriage up (or down) until the syringe is accessible. See
Figure 56.
3 Pass the syringe needle through the hole in the needle support foot.
4 Align the syringe barrel with the flange guide and syringe clip and press the
syringe into place, keeping the needle in the hole of the needle support foot.
5 Close the syringe latch by swinging it clockwise.
6 Move the plunger carrier loop down and tighten the plunger screw.

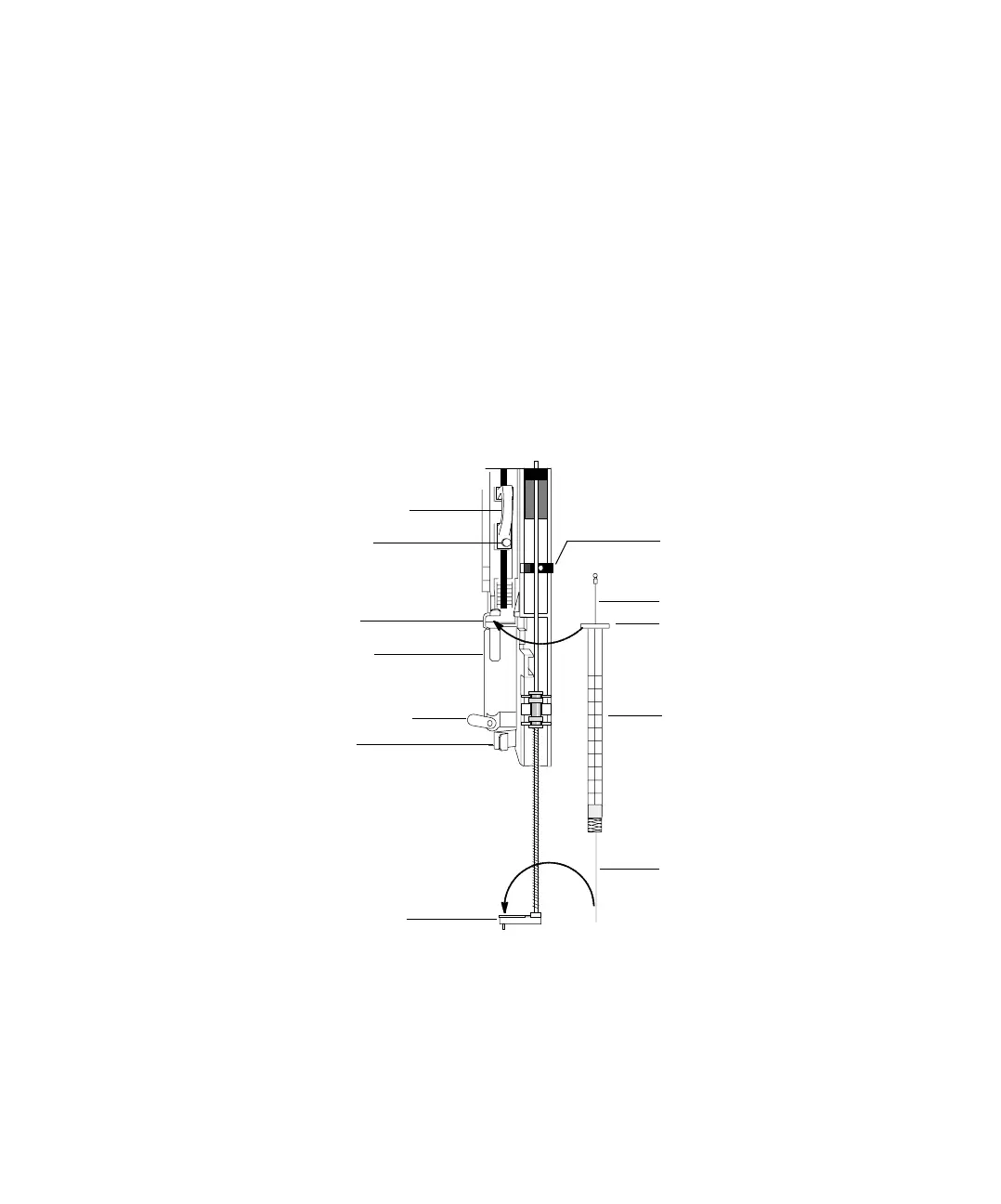

Figure 56 Installing a syringe
Plunger carrier loop
Plunger screw
Flange guide
Syringe carrier
Syringe latch (open)
Syringe clip
Needle support foot
Slide
Plunger
Flange
Needle
Barrel
