Agilent Technologies agilent 7683B User Manual

200 Installation, Operation, and Maintenance
A Cables and Connectors
G1530-60930 — Remote Start/Stop Cable for 6890A GC

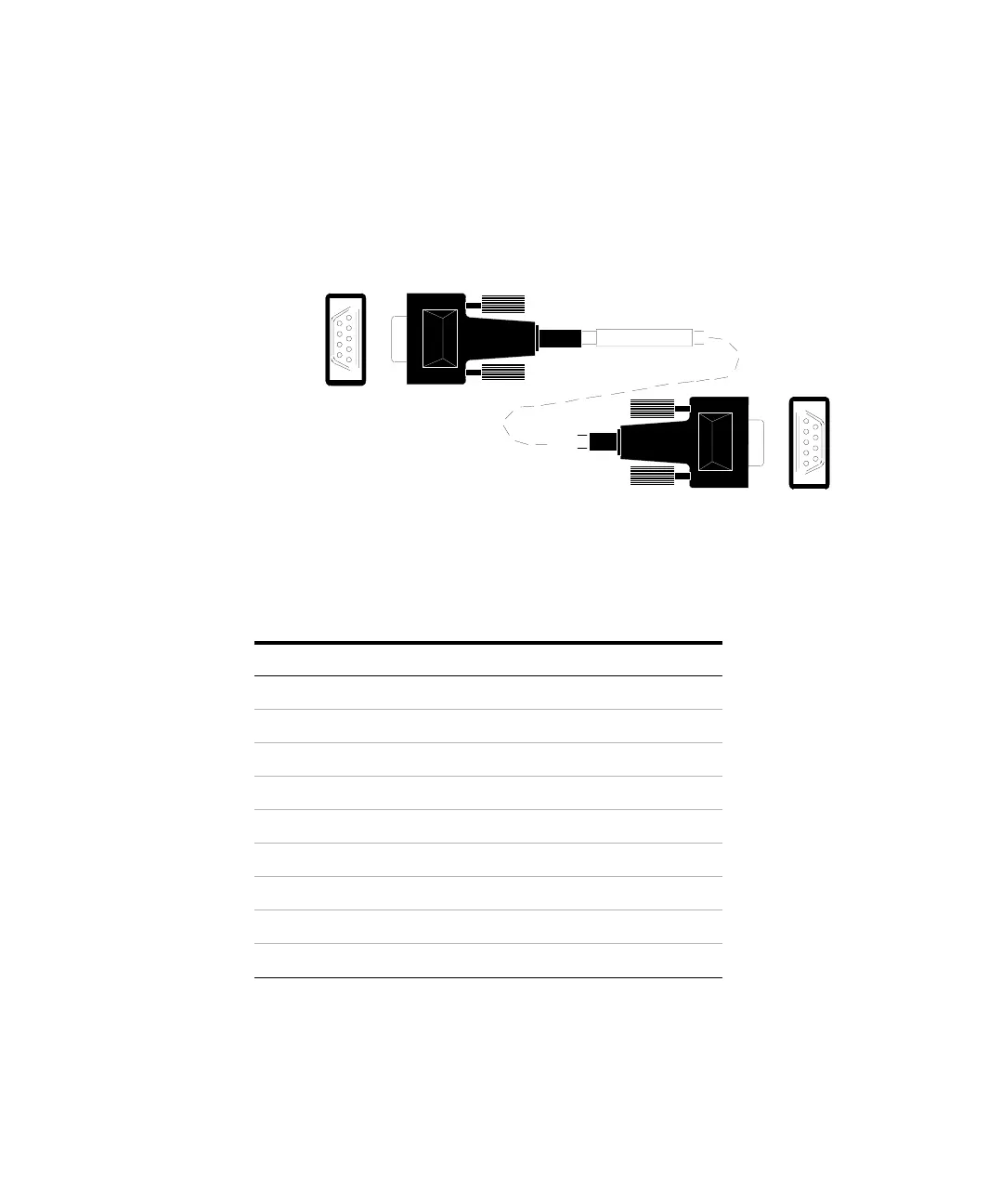

Figure 83 G1530-60930 cable
Table 4 3 G1530-60930 cable
Pin # Description
1Ground
2 Prepare
3Start
4 Shut down (6890A/Plus), start relay (6890N)
5 Reserved
6 Power on (6890A/Plus, no connection (6890N)
7Ready
8Stop
9 Start request (6890A/Plus), no connection (6890N)
1020_11.wmf
1
1
5
5
6
6
9
9
Connector 1
Connector 2
