Installation 2
Installation, Operation, and Maintenance 51
Part 1, Installation
Procedure 6. Installing the G2614A Tray
1 Remove the three inlet cover Torx screws (Figure 21).
2 Align the tray over the two left holes in the inlet cover. Tighten the short
screw in the center of the tray mounting arm to hold the tray. Install the
two long mounting screws into the tray and tighten until the tray is secure.
3 Install the tray quadrants (Figure 22). Be sure to match the numbers on the
quadrants with the tray base numbers.
Slide the leading edge of each quadrant under the guides on the tray, then
snap the front tab into the slot on the tray.

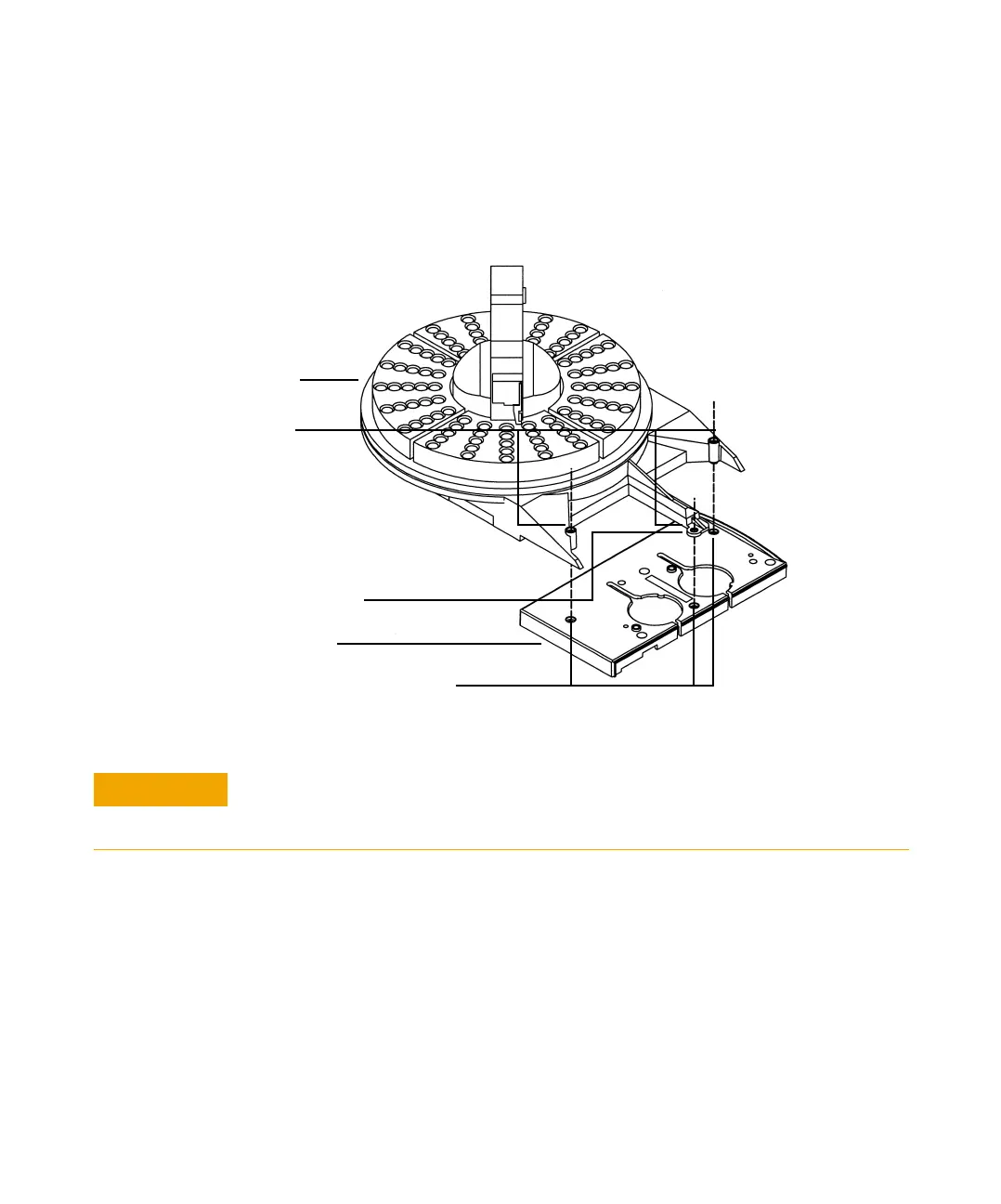

Figure 21 Installing the tray
Tra y
Screw (short)
Remove screws from cover
Inlet cover
Tra y
mounting
screws
(long)
CAUTION
Do not move or manipulate the robotic arm or gripper. Moving the arm or gripper back
and forth can cause damage. If necessary, rotate the arm assembly a few degrees until
there is enough clearance.
