Installation 2
Installation, Operation, and Maintenance 49
Part 1, Installation
6850 GC
Connect the injector cable as shown. Use the top connector on the back of the
GC.
Testing the connections
When the cables are connected, turn on the GC power. The tray will beep
twice. After the start-up process ends:
• The Ready light on the injector tower should be on.
• If the Align Mode light is on, see “Align Mode” on page 150.
• If either the Fault or Run light is on, see “Faults” on page 160.

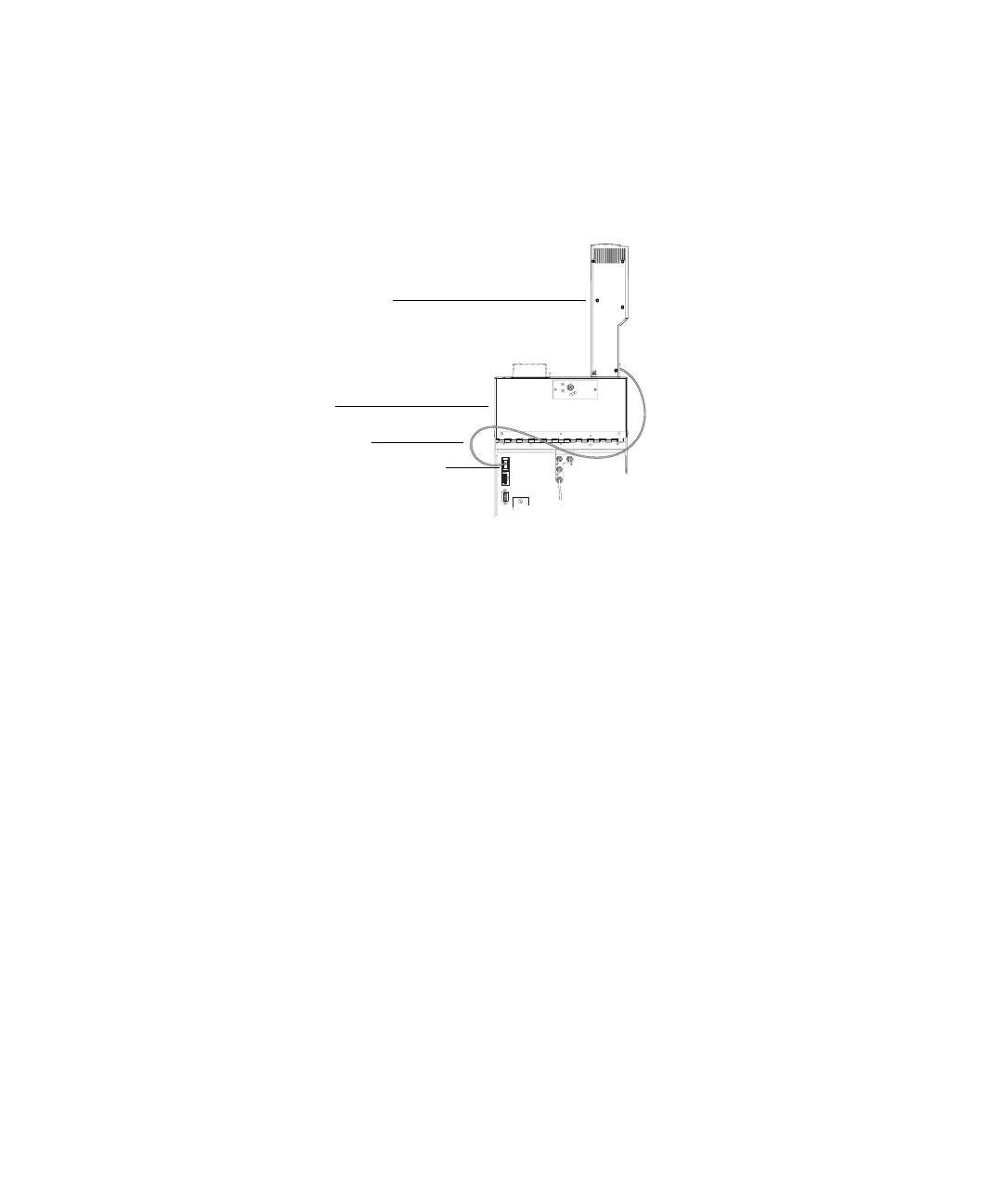

Figure 20 Cable for 6850 GC
6850 GC
G2913A injector
Injector cable
Connect to top connector
