Syringes and Needles 5
Installation, Operation, and Maintenance 103
Part 2, Operation
Installing a Syringe
To install a syringe (Figure 41):
1 Open the injector door.
2 Slide the syringe carriage up (or down) until the syringe is accessible. See
Figure 41.
3 Pass the syringe needle through the hole in the needle support foot.
4 Align the syringe barrel with the flange guide and syringe clip and press the
syringe into place, keeping the needle in the hole of the needle support foot.
5 Close the syringe latch by swinging it clockwise.
6 Loosen plunger screw until the stop is reached.

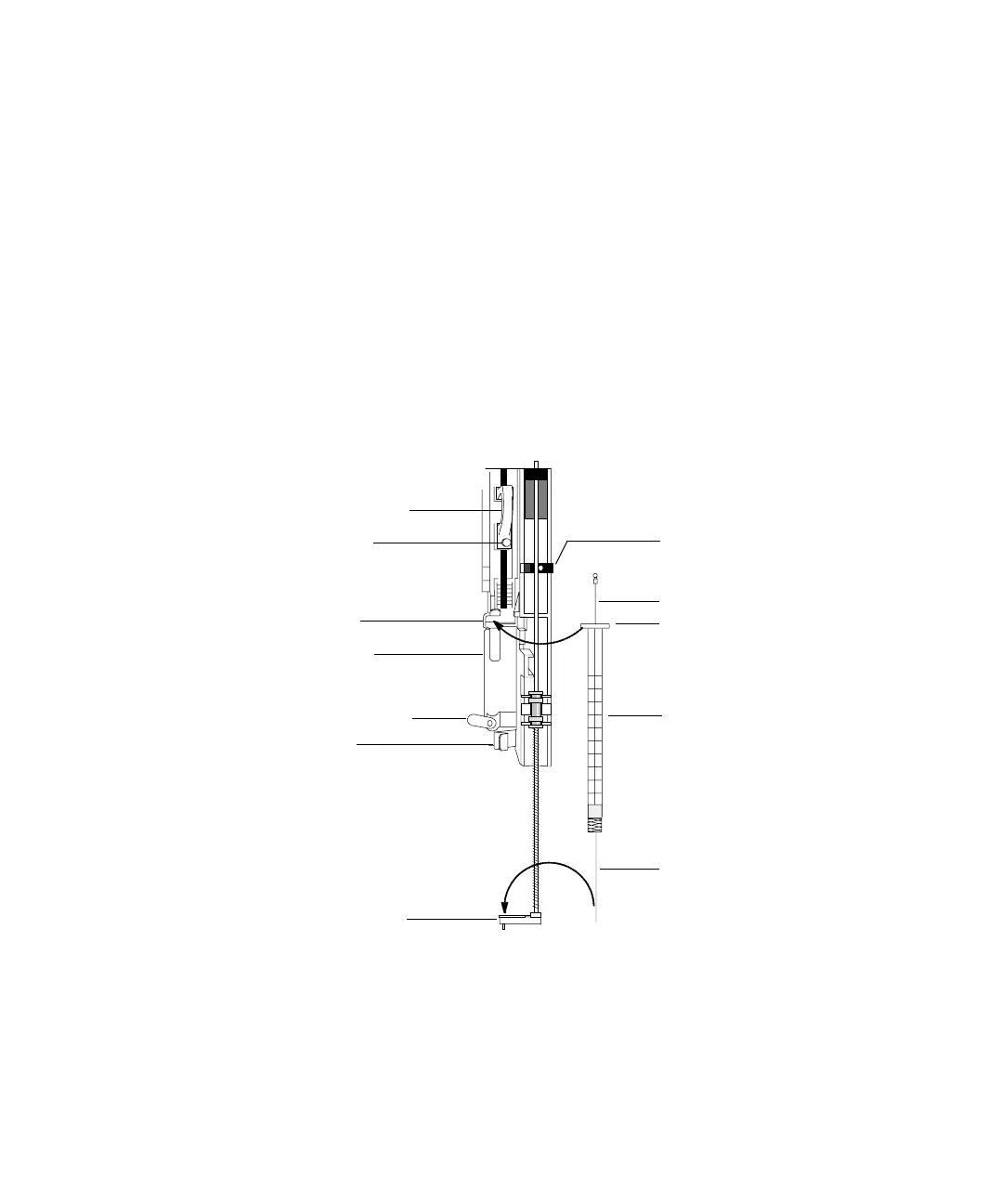

Figure 41 Installing a syringe
Plunger carrier loop
Plunger screw
Flange guide
Syringe carrier
Syringe latch (open)
Syringe clip
Needle support foot
Slide
Plunger
Flange
Needle
Barrel
