30 Installation, Operation, and Maintenance
Part 1, Installation
2 Installation
3 Replace the existing lid shaft with the new lid shaft–5890 from the bracket
kit. The lid shaft is held by a screw on one end.
4 If tubing for a split/splitless inlet is routed on top of the bracket, remove the
inlet nut.

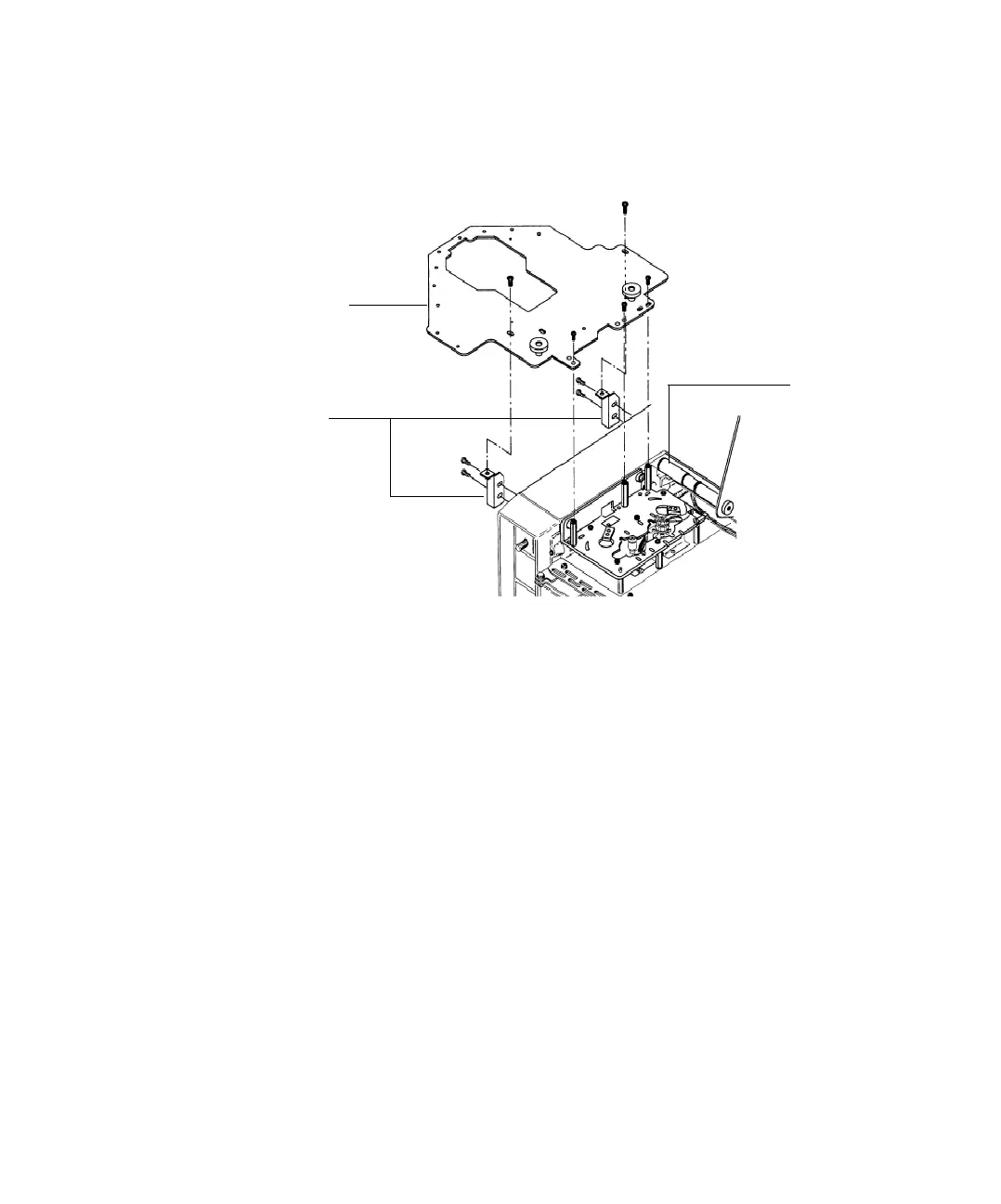

Figure 3 Removing a tray bracket
Tray bracket
Supports
Lid shaft
