Agilent Technologies U3606A User Manual

Disassembly and Repair 7
Mechanical Disassembly
U3606A User’s and Service Guide 227

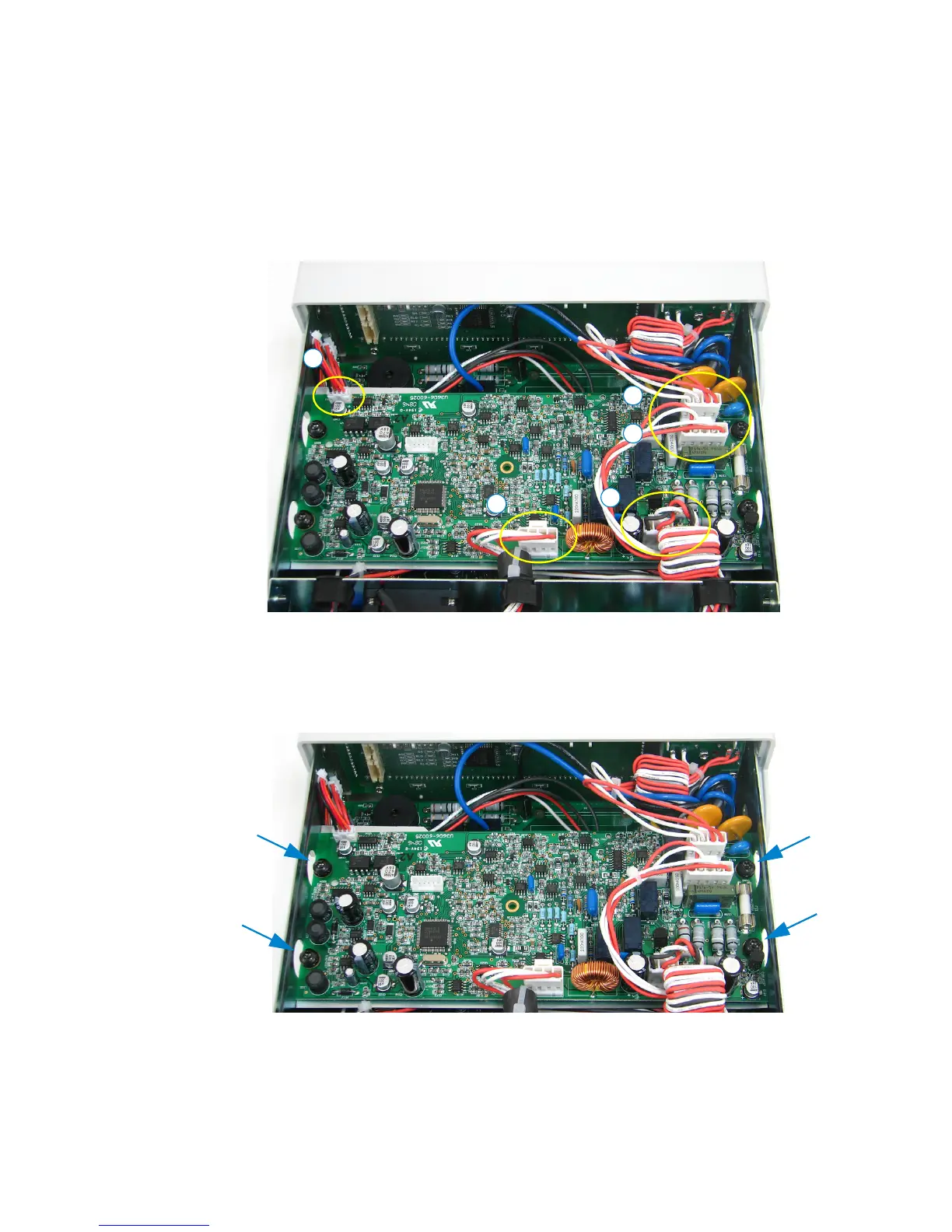

c Disconnect the individual wires from the top layer circuit board as
shown below.
8 Remove the top layer circuit board. Loosen the four captive screws in
the top layer circuit board and remove the top layer circuit board.
Remove the protective metal sheet as well.
1
2
3
4
5
