7
Disassembly and Repair
Mechanical
Disassembly
228
U3606A User’s and Service Guide
9

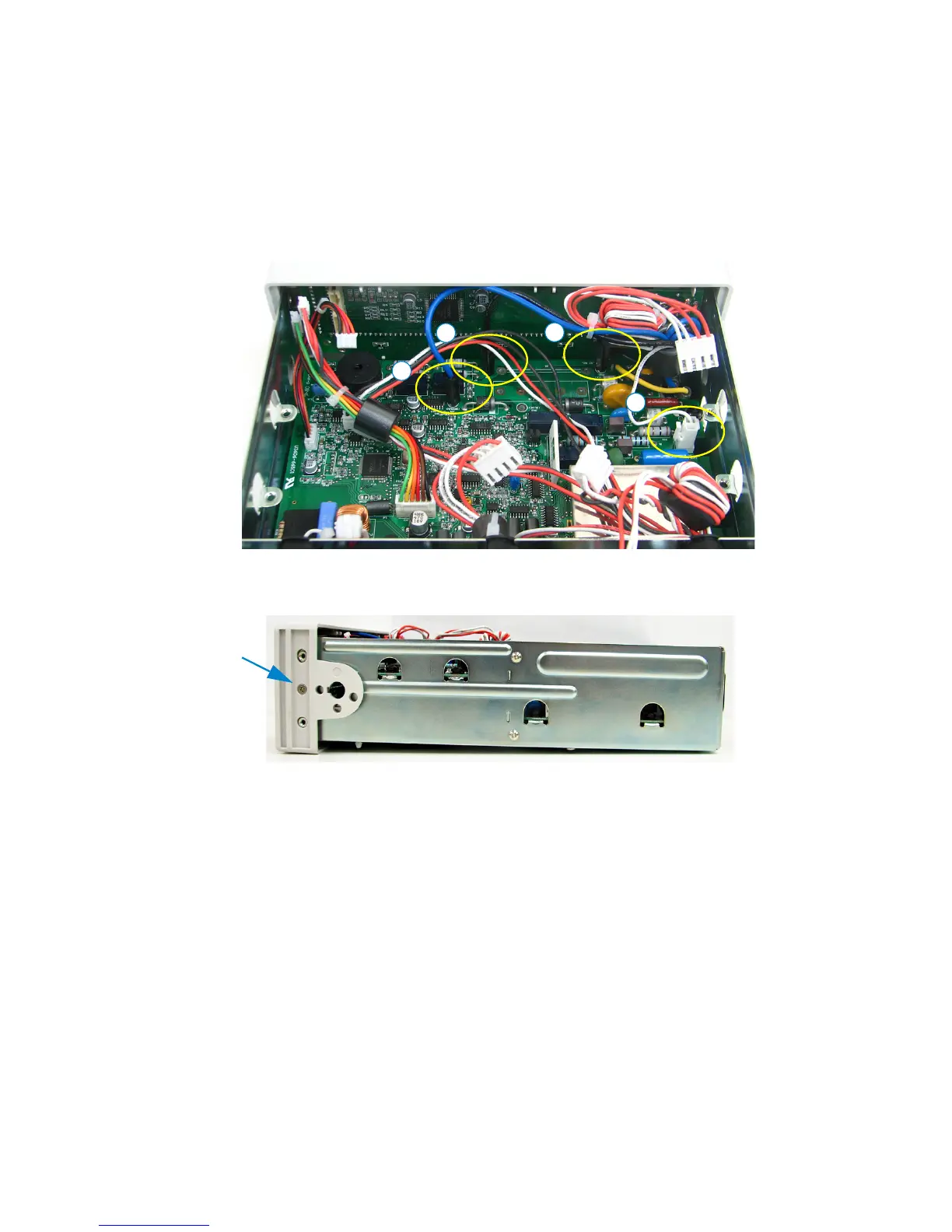

Dis
connect the individual wires
fr
om
the bottom lay
er circuit board as
sho
wn below
.
10
Remo
ve the two scre
ws holding the front panel.
1
2
3
4
249
251
