Getting Started 1
Product at a Glance
U3606A User’s and Service Guide 17
Press Shift > Limit to enable the limit math operation. See “Limit” on page 64 for more
information.
Press Hold to capture and hold a reading within the specified variation and threshold
values.
[2]
See “Hold” on page 67 for more information.
• Press to select a higher range and disable autoranging.
• Press to select a lower range and disable autoranging.
• See “Selecting a Range” on page 54 for more information.
Press Shift > Auto to enable autoranging and disable manual ranging. See “Selecting a
Range” on page 54 for more information.
Press Shift > 4½ 5½ to toggle between 4½ digit and 5½ digit mode. See “Setting the
Resolution” on page 55 for more information.
[3]
Press Shift > Tri g to enable the single trigger mode. See “Triggering the Multimeter” on
page 69 for more information.
Source operation
Press Voltage to select CV output. Use the directional keys to select a suitable voltage
value. See “Constant voltage (CV) mode” on page 74 for more information.
Press Current to select CC output. Use the directional keys to select a suitable current
value. See “Constant current (CC) mode” on page 76 for more information.
• Press to select the square-wave output. Use the directional keys to set the
voltage amplitude.
• Press again to cycle through the duty cycle, pulse width, and voltage amplitude
settings.
• See “Square-wave Output” on page 88 for more information.

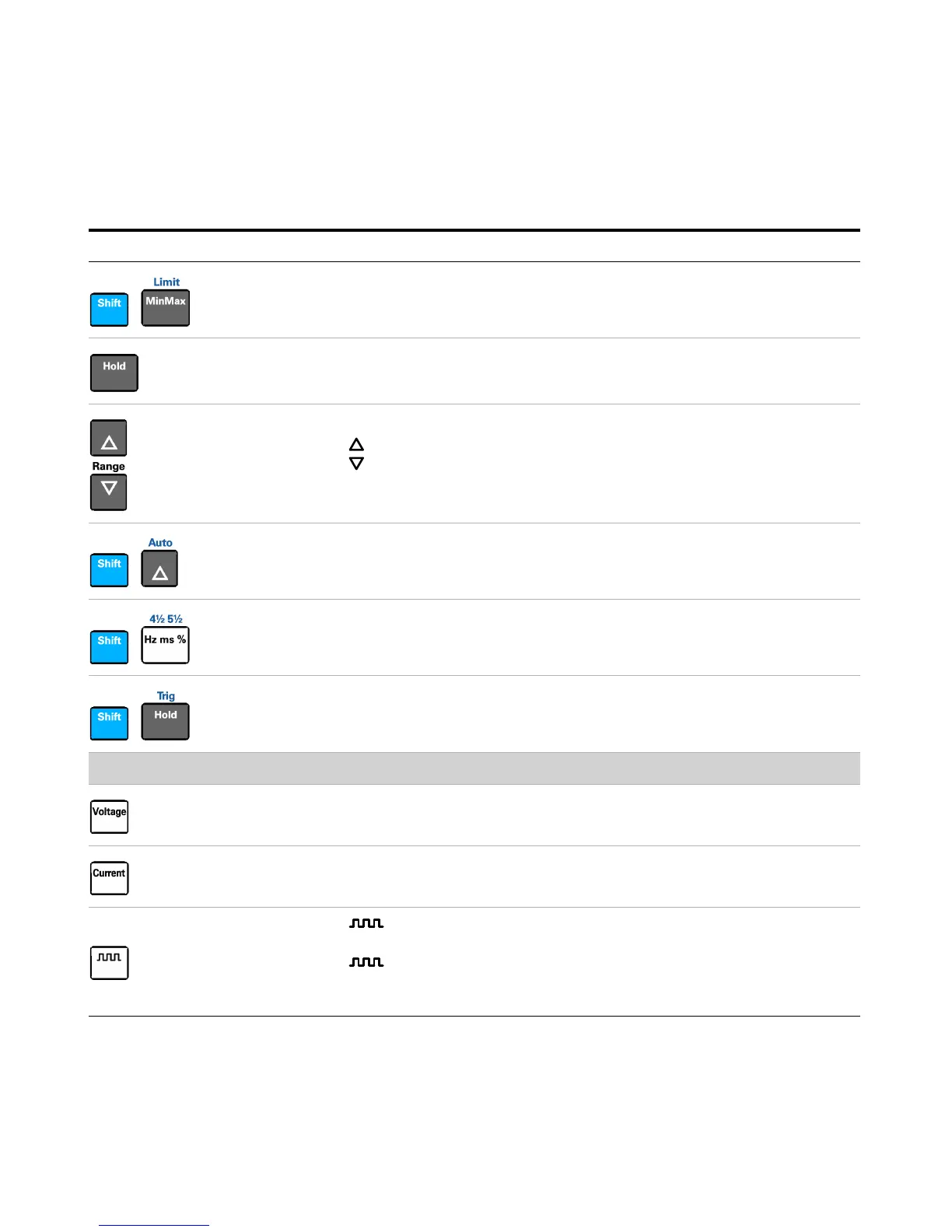

Table 1 - 2 U3606A keypad functions (continued)
Key Description
