Chapter 2: Virtual Chassis Stacking
66
Figure
23 is a stack of eight switc
hes.

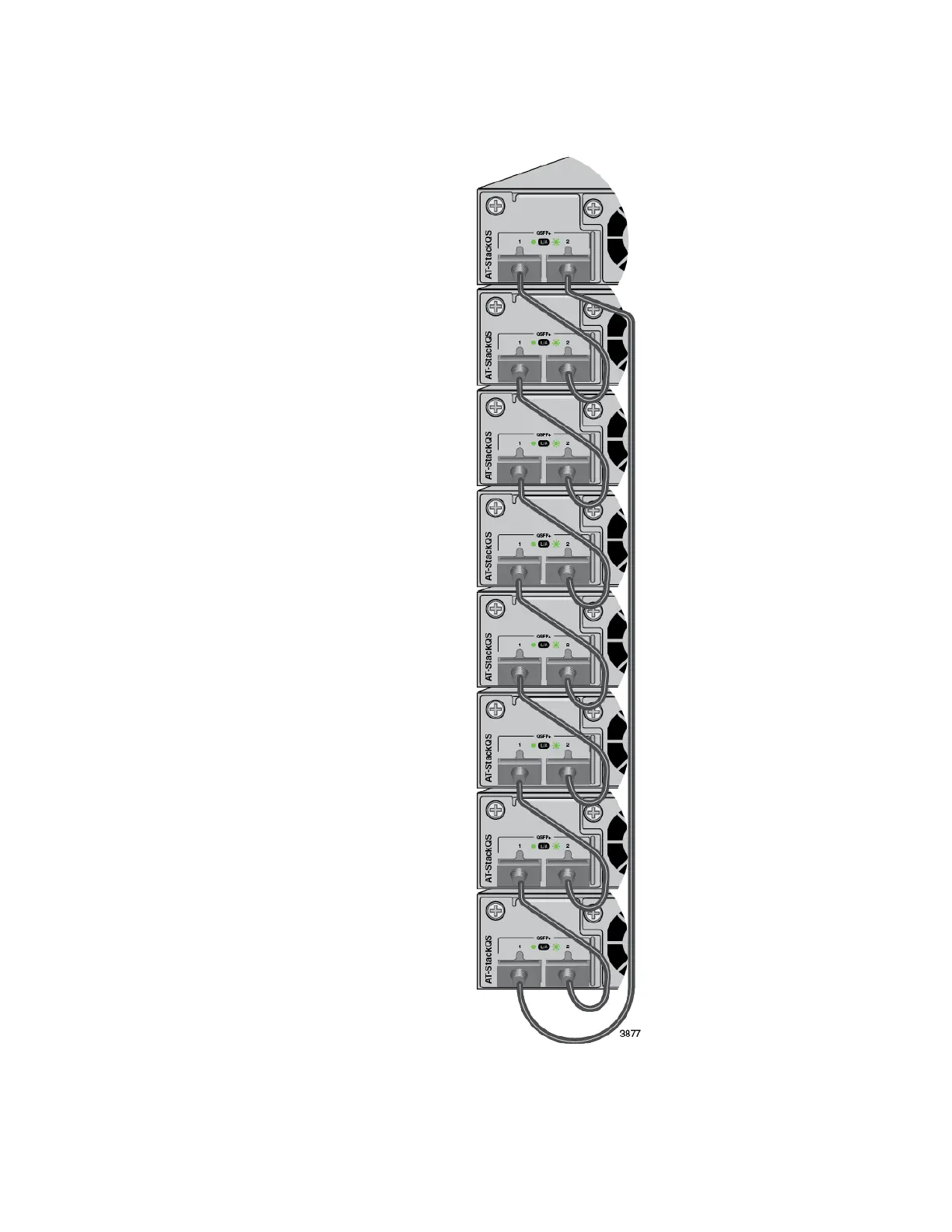

Figure 23. Trunk of AT-StackQS
Cards for a Stack of Eight Switches
