Chapter 2: Virtual Chassis Stacking
70

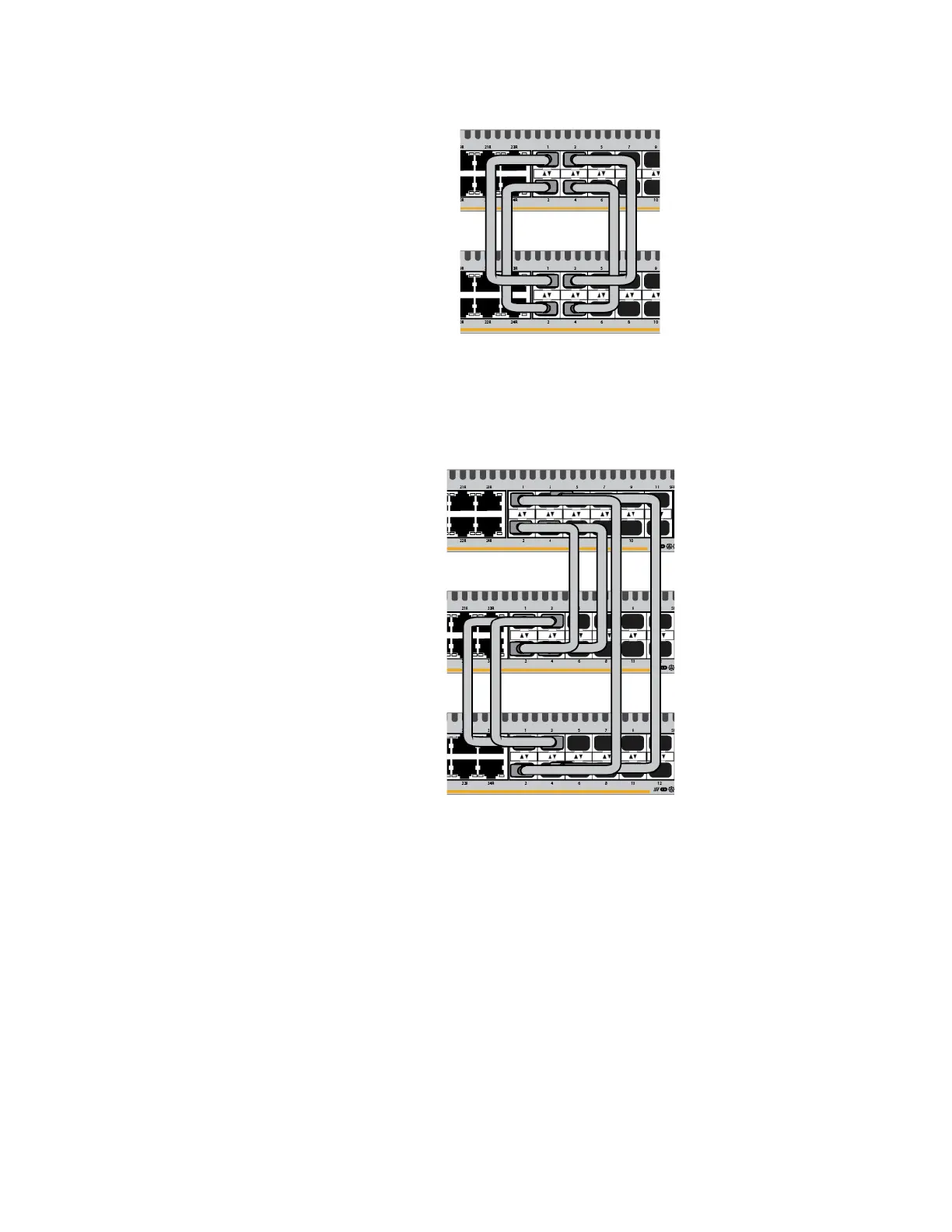

Figure 27. Trunk of SFP Gigabit Ports for a Stack of Two AT-x930-
28GSTX Switches
The example in Figure 28 is a stack of three AT-x930-28GSTX Switches.
As in the previous example, the trunk contains SFP Gigabit ports 1 to 4.
Figure 28. Trunk of SFP Gigabit Ports for a Stack of Three AT-x930-
28GSTX Switches
For mixed stacks of AT-x930-28GSTX Switches and other x930 Switches,
trunks can have both Gigabit copper ports and SFP ports. In Figure 29 on
page 71, the trunk for the stack of two AT-x930-28GSTX Switches and two
other x930 Switches has both Gigabit copper and SFP ports, The trunk
ports on the AT-x930-28GSTX Switches are copper ports 21R and 22R,
and SFP ports 1 and 2, The trunk ports on the other switches are copper
ports 21 to 24.
