Chapter 14: Cabling the Networking Ports
192
Installing AT-SP10TW Direct Connect Cables
This section contains the procedure for installing AT-SP10TW direct
connect cables in SFP+ ports. Here are the guidelines:
The cables are supported in ports 25 to 28 on 28-port x930
Switches and ports 49 to 52 on 52-port switches.
If you are using SFP+ ports S1 and S2 as the VCStack trunk,
review the guidelines in “Trunks of Ports S1 and S2” on page 60
before performing this procedure.
The cables are hot-swappable. You may install them while the
switch is powered on.
Warning
A transceiver can be damaged by static electricity. Be sure to
observe all standard electrostatic discharge (ESD) precautions,
such as wearing an anti-static wrist strap, to avoid damaging the
device. E92
To install AT-SP10TW direct connect cables, perform the following
procedure:
1. If the SFP+ port has a dust cover, remove it. Refer to Figure 86 on
page 190.
2. Remove the AT-SP10TW direct connect cable from its shipping
container and store the packaging material in a safe location.
3. Remove the dust cap from a connector on the cable. Refer to
Figure 89.

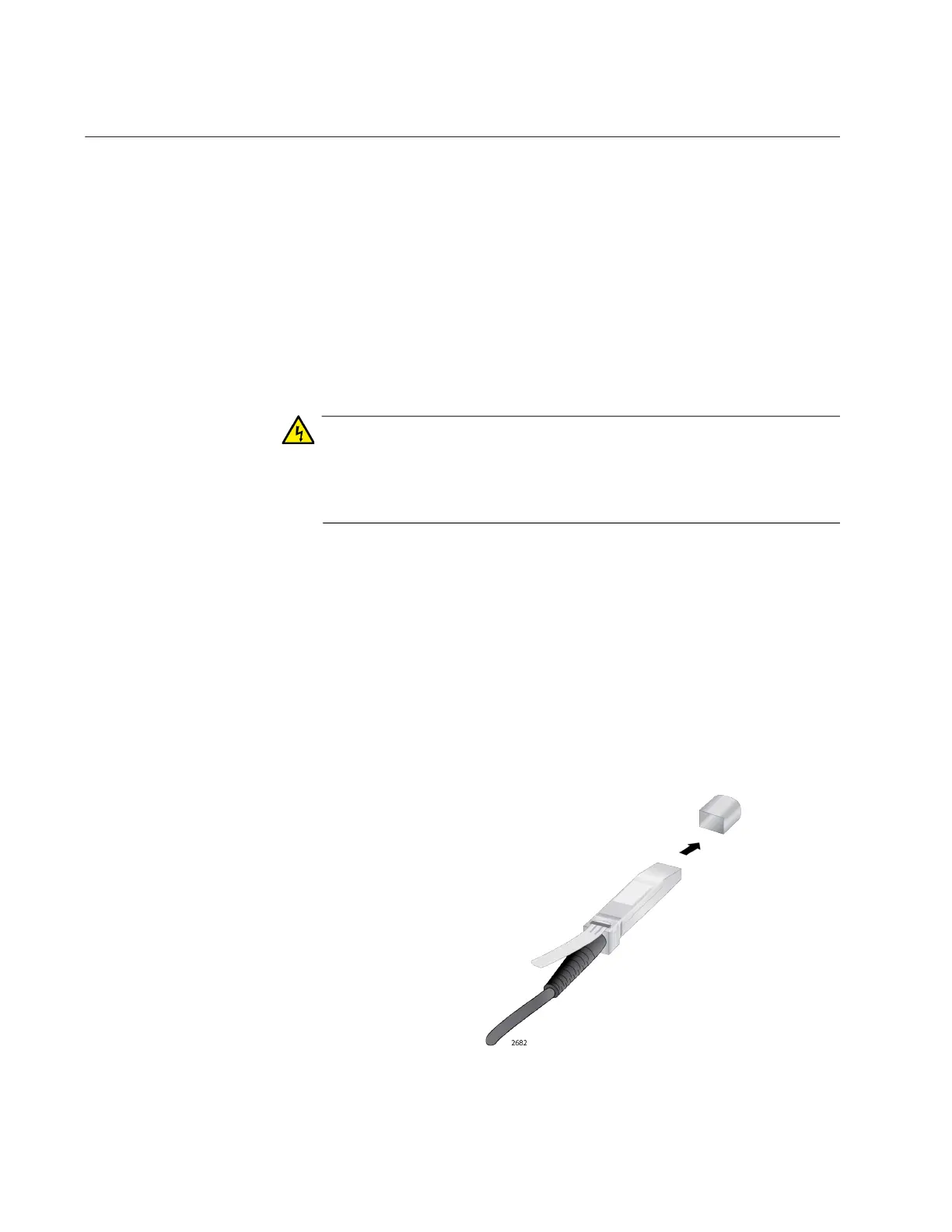

Figure 89. Removing the Dust Cover from the AT-SP10TW Cable
