x930 Series Installation Guide for Virtual Chassis Stacking
193
4. Slide the connector into the port. The release tab on the connector
must be on top when installed in a top SFP+ port and on the bottom
when installed it in a bottom SFP+ port. Refer to Figure 90.

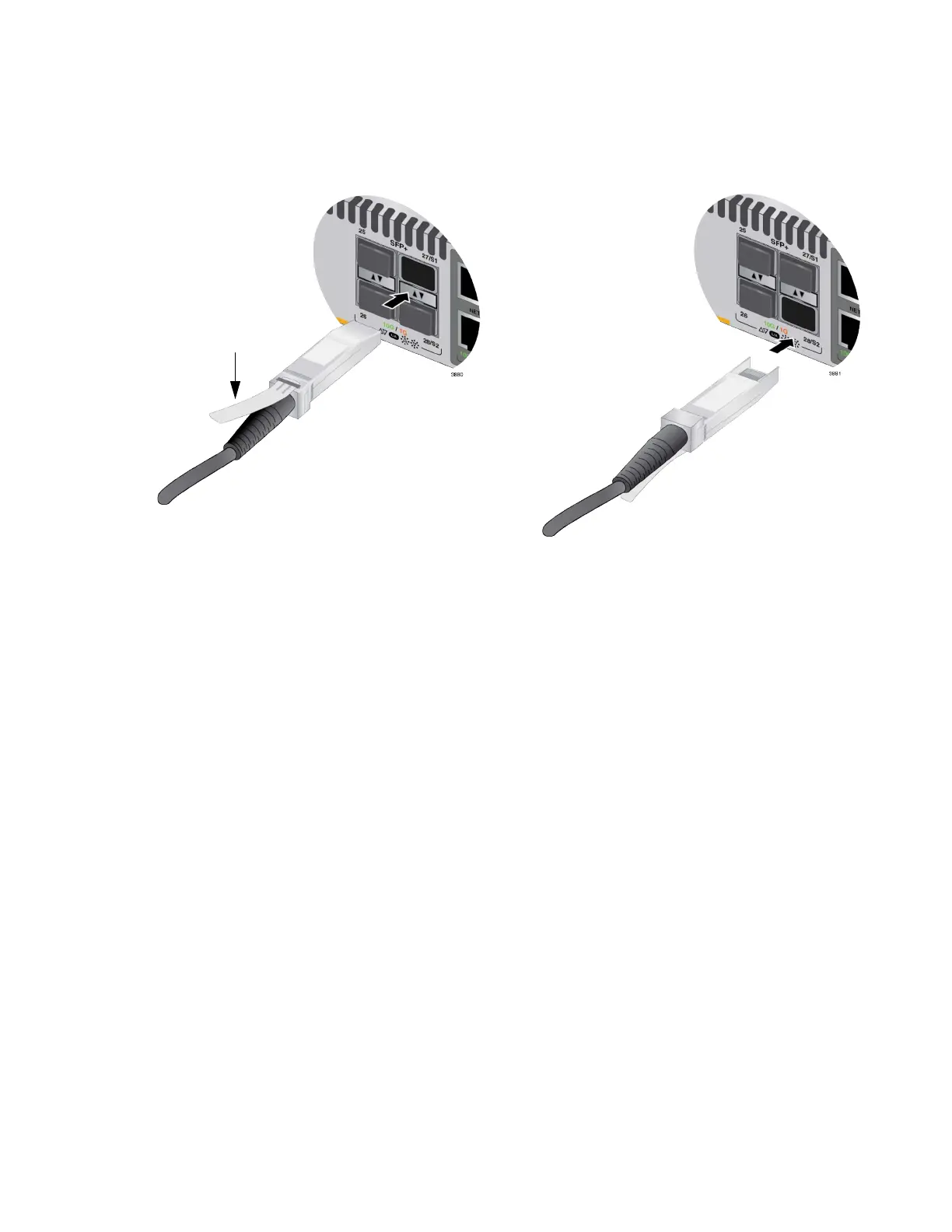

Figure 90. Installing AT-SP10TW Cables
5. Install the other end of the cable in a compatible port on another
network device. To use SFP+ ports as the VCStack trunk, the
connections must crossover on the switches. The connection on port
S1 in one switch must crossover to port S2 in the next switch.
6. Repeat this procedure to cable other SFP+ ports.
7. If you are using SFP+ ports as the VCStack trunk, go to Chapter 11,
“Building the Stack with SFP+ Ports S1 and S2” on page 147 after
cabling all the switches.
Release tab
