Chapter 14: Cabling the Networking Ports
194
Cabling the AT-StackQS Card with AT-QSFPICU Cables
This section contains the procedure for cabling AT-StackQS Cards with
copper AT-QSFPICU Cables. For installation instructions on installing the
card, refer to Chapter 5, “Installing AT-StackQS and AT-x9EM/XT4 Cards”
on page 103
If you are using the ports on the card for the VCStack trunk, review the
guidelines in “Trunks of AT-StackQS Cards” on page 64 before performing
this procedure.
To cable AT-StackQS Cards with AT-QSFPICU Cables, perform the
following procedure:
1. Remove the dust cover from a port on the AT-StackQS Card. Refer to
Figure 91.

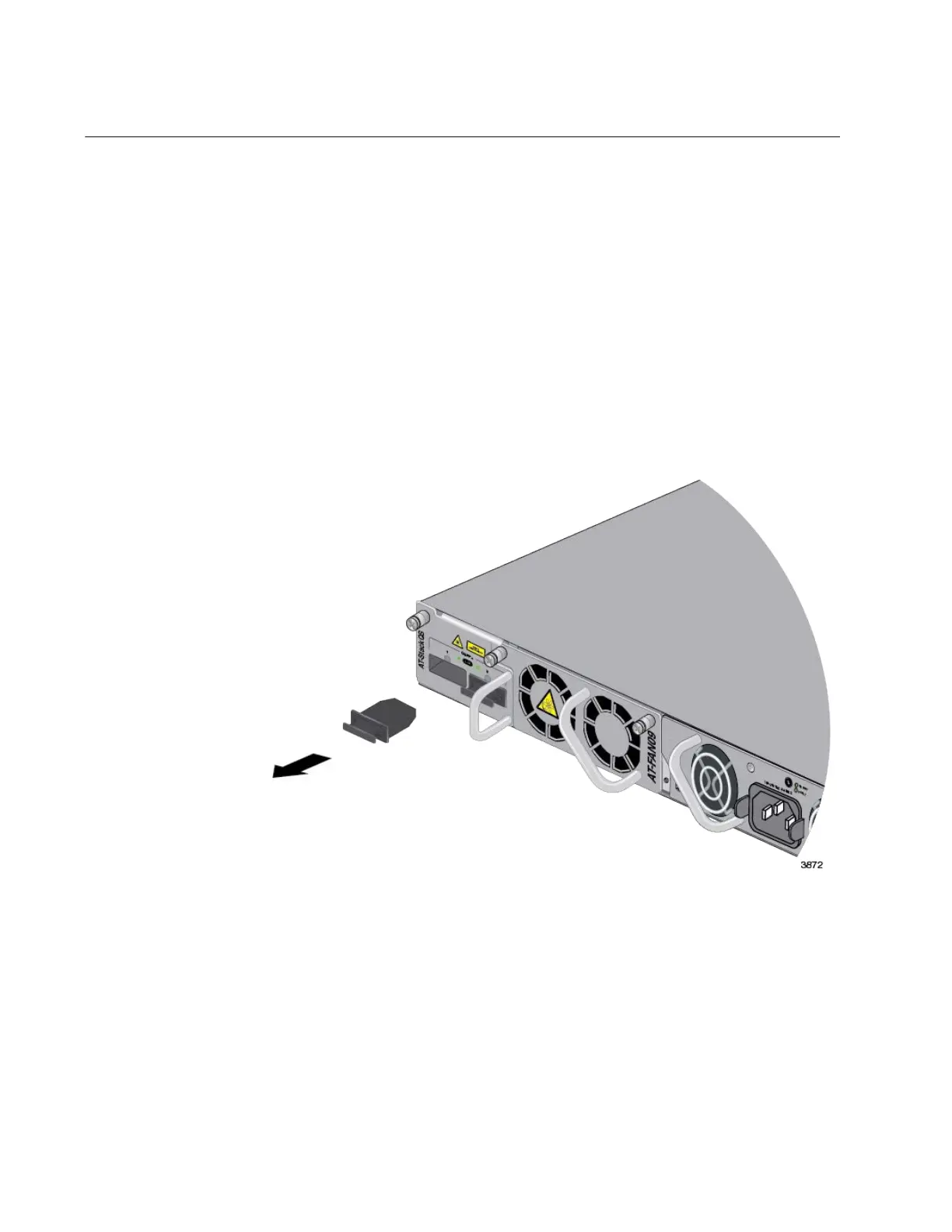

Figure 91. Removing the Dust Cover from Port 1
2. Slide the connector on the AT-QSFPICU Cable into the port until it
clicks into place. Refer to Figure 92 on page 195.
