Front and Back Panels
The front panels of the x930 Series switches are shown in Figure 1 and
Figure 2 on page 20.

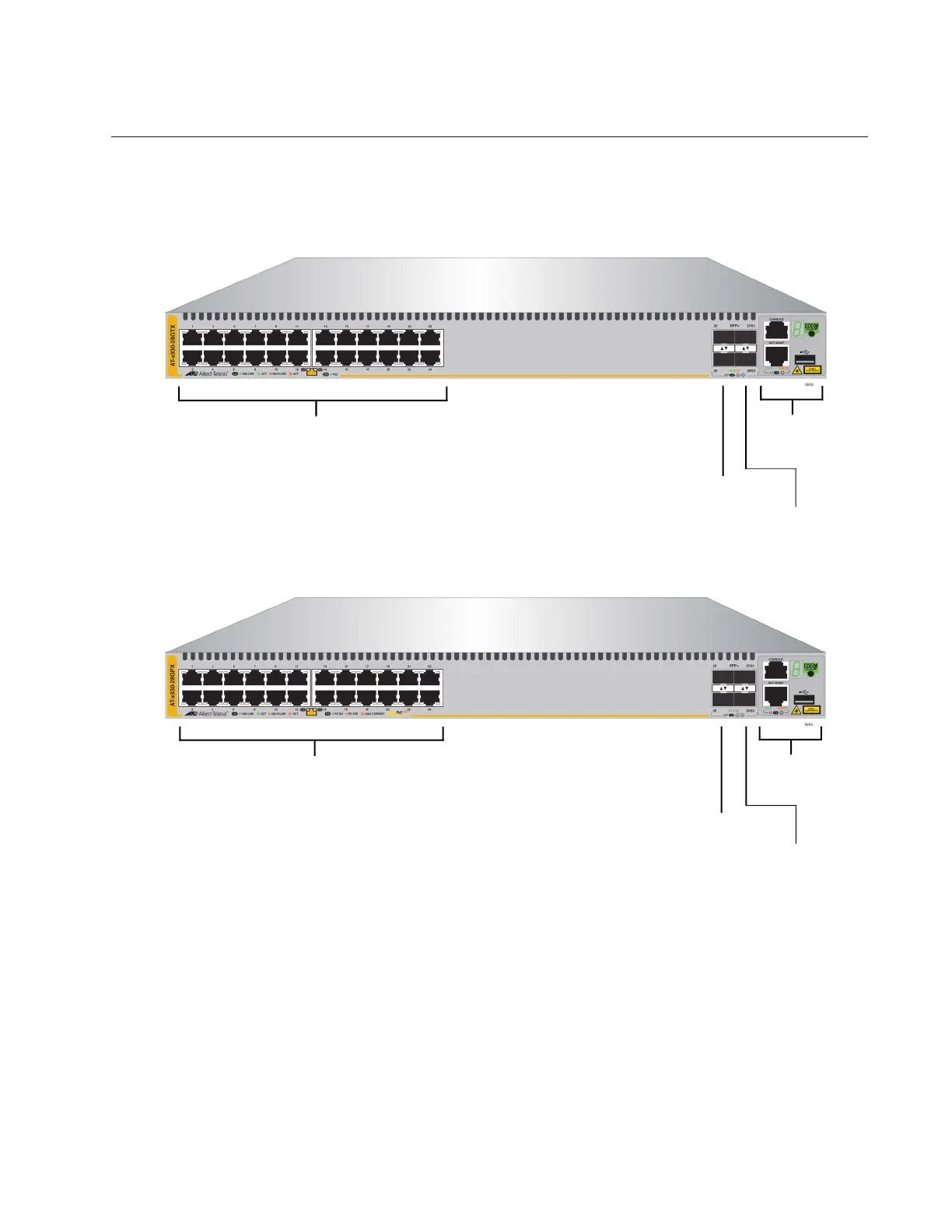

Figure 1. Front Panels of the AT-x930-28GTX and AT-x930-28GPX
Switches
AT-x930-28GPX
AT-x930-28GTX
10/100/1000Base-T Ports
SFP or SFP+ Ports
Management
Panel
SFP, SFP+ or
Stacking Ports
SFP or SFP+ Ports
Management
Panel
SFP, SFP+ or
Stacking Ports
10/100/1000Base-T Ports
with PoE+
