Chapter 8: Installing the Switch on a Wall
130
Installing the Switch on the Plywood Base
This procedure assumes that the plywood base for the switch is already
installed on the wall. Please review “Reviewing Safety Precautions” on
page 84 and “Choosing a Site for the Switch” on page 89 before
performing this procedure. Allied Telesis recommends a minimum of three
people for this procedure.
Caution
The device is heavy. Always ask for assistance before moving or
lifting it to avoid injuring yourself or damaging the equipment.
Caution
The device should be installed on a wall by a qualified building
contractor. Serious injury to yourself or others or damage to the
equipment may result if it is not properly fastened to the wall.
E105
To install the switch on the plywood base, perform the following
procedure:
1. Place the switch in a table.
2. Install the four brackets with the sixteen screws that come with the
switch to the sides of the unit, as shown in Figure 61.

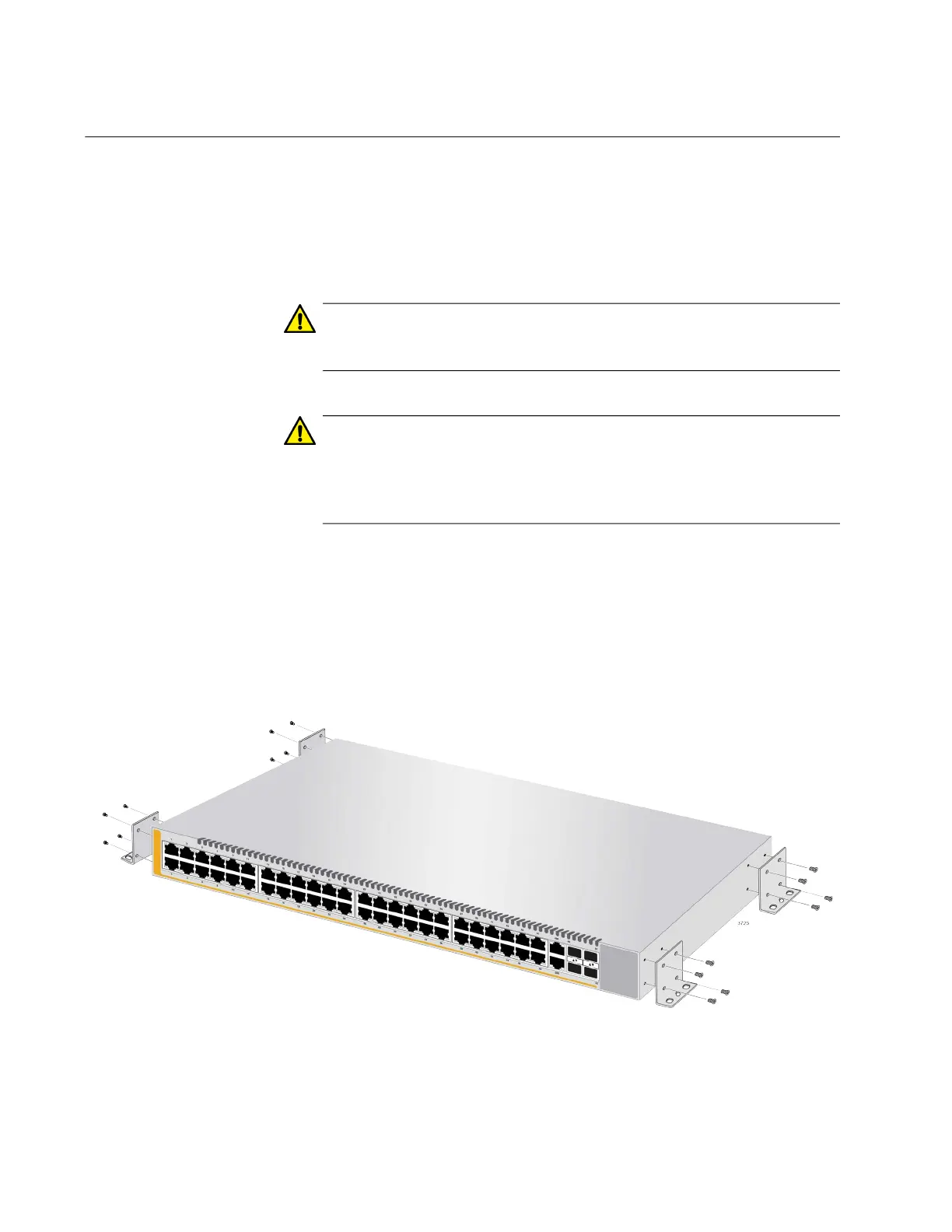

Figure 61. Installing the Brackets to the Switch for Wall Installation
