Chapter 2: Virtual Chassis Stacking
62
An example of a stack trunk for four s
witches is illustrated in Figure
19.

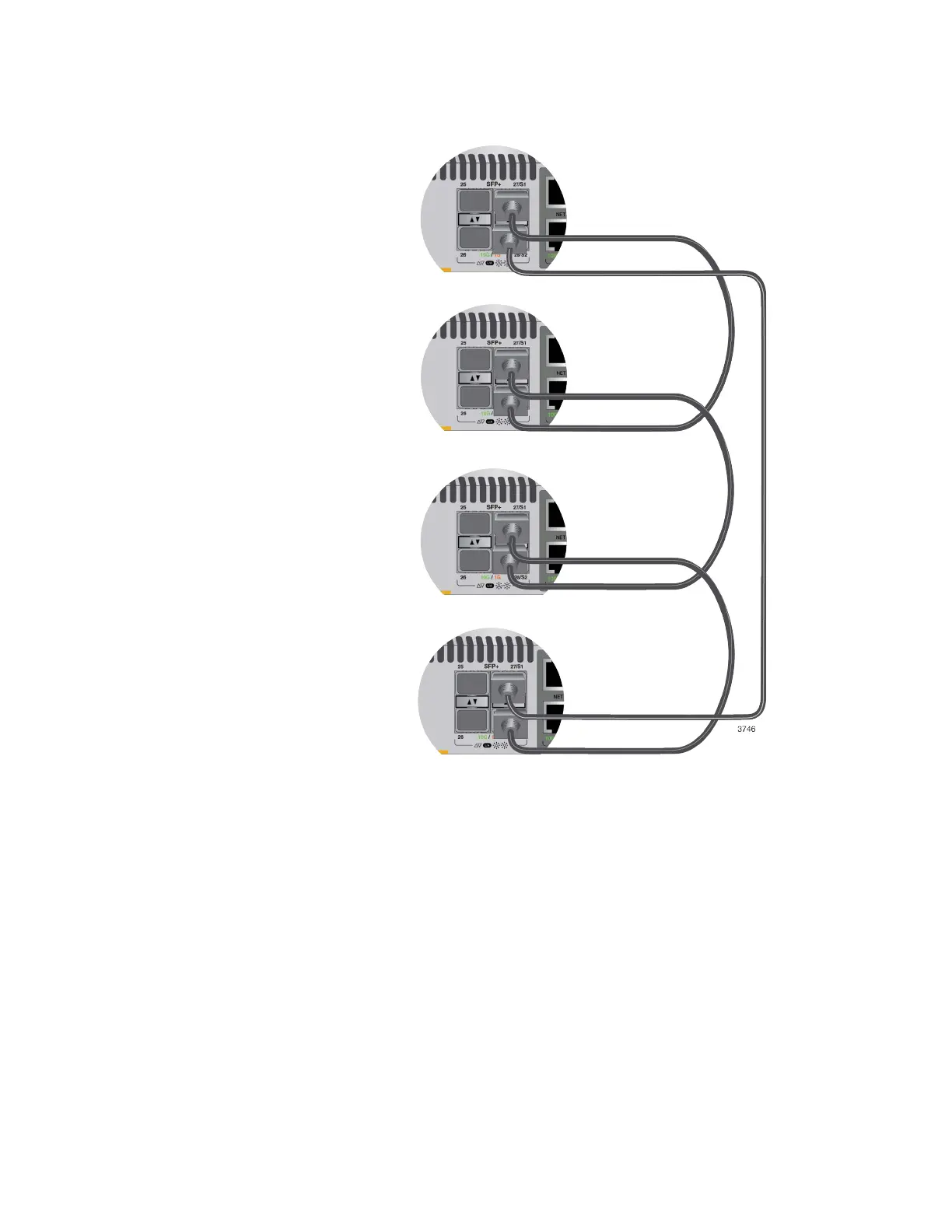

Figure 19. Trunk of Ports S1 and S2
for a Stack of Four Switches
