x930 Series Installation Guide for Virtual Chassis Sta
cking
119

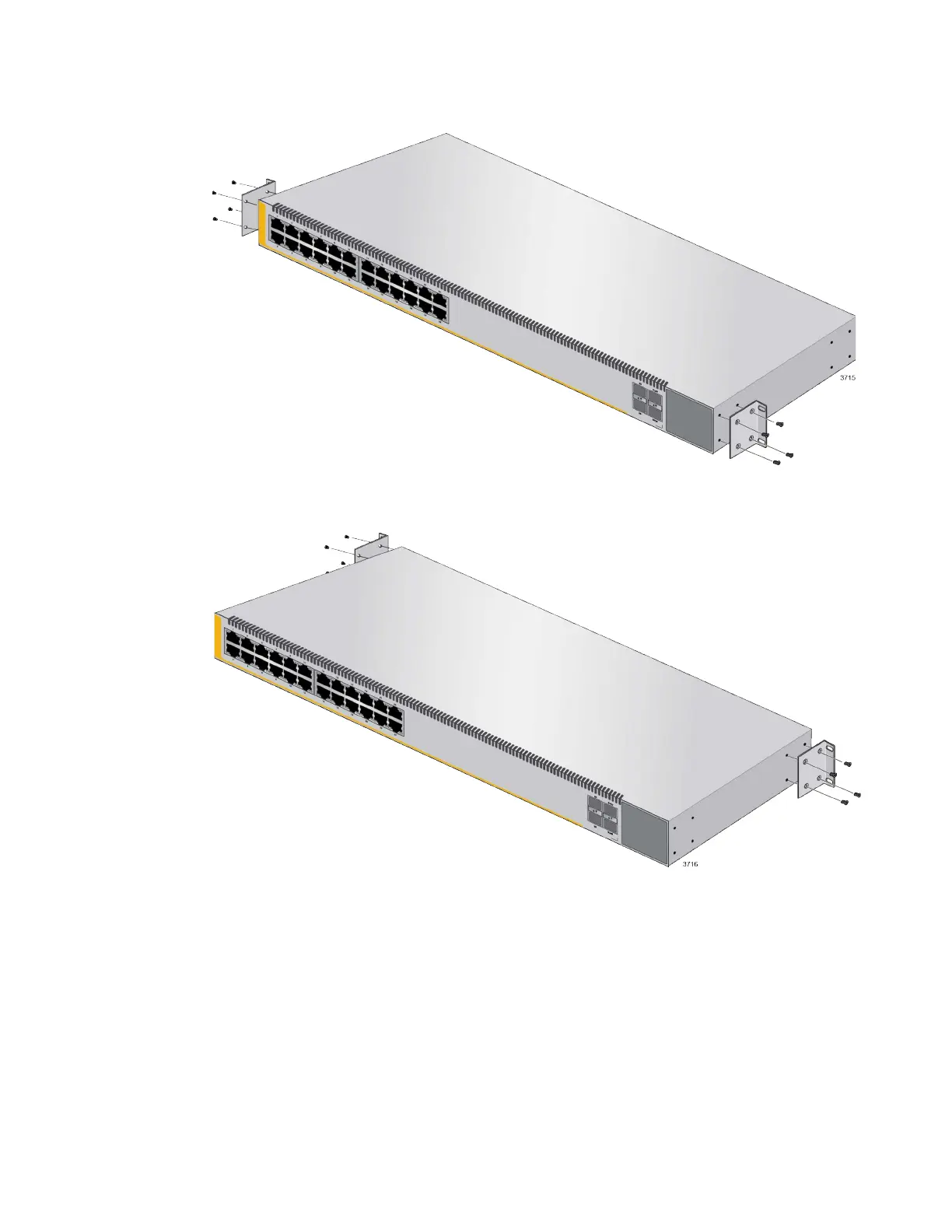

Figure 54. Attaching the Equipm
ent Rack Brackets (Continued)
3.
Have two people hold the swi
tch in the equipment rack while you
secure it using standard equipm
ent rack screws (not provided). Re
fer
to Figure 55 on page 120.
