LEDs
Here are descriptions of the LEDs.
LEDs for the
Copper Ports
The copper ports on the AT-x930-28GTX, AT-x930-28GSTX, and AT-
x930-52GTX Switches have two LEDs that display link, activity and duplex
mode information. The LEDs are shown in Figure 8.

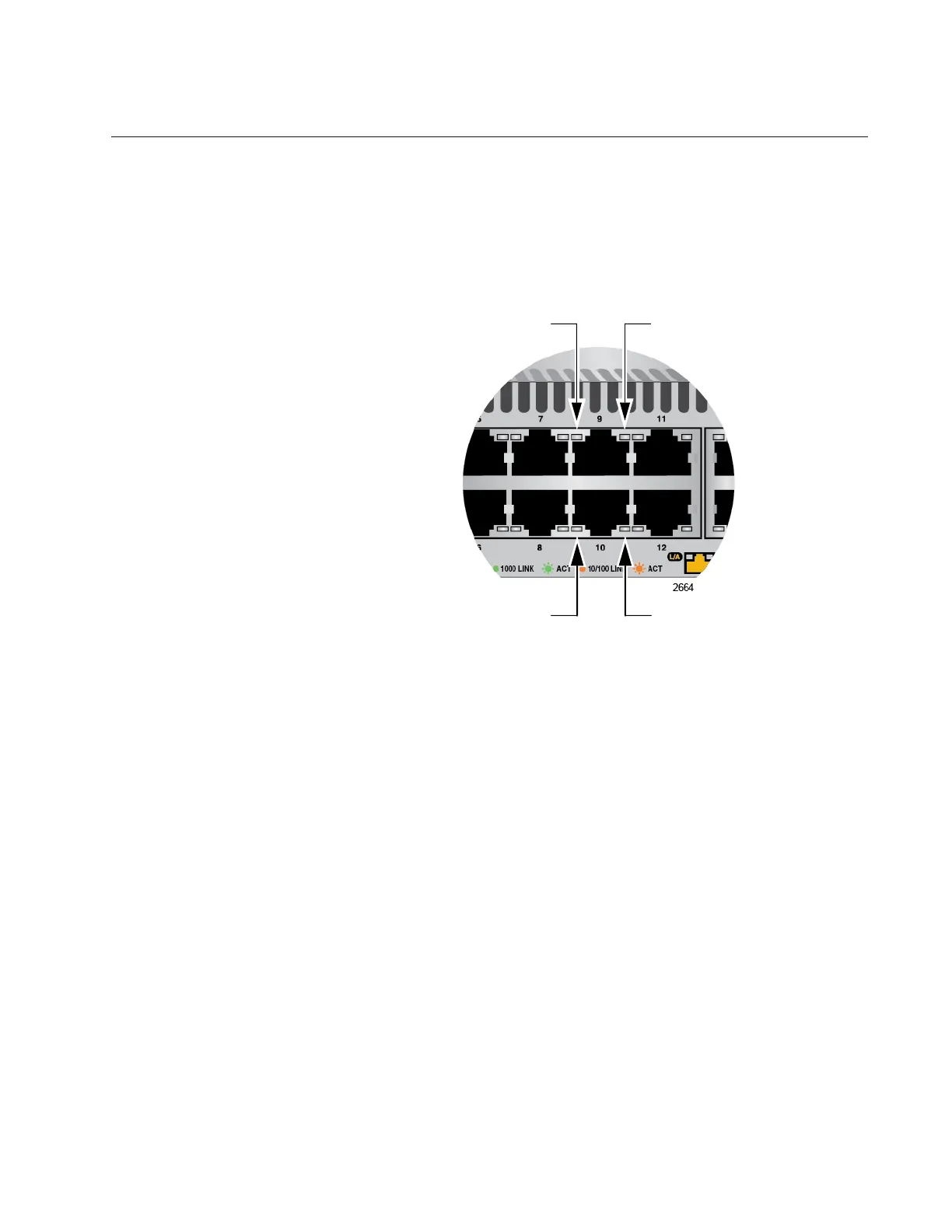

Figure 8. LEDs for the 10/100/1000Base-T Ports on the AT-x930-28GTX,
AT-x930-28GSTX, and AT-x930-52GTX Switches
The LEDs are described in Table 7 on page 44.
Link/Activity
LED
Duplex Mode
LED
Duplex Mode
LED
Link/Activity
LED
