4. Setting the Laser Light Output Schedule
X
Returns to the SCHEDULE screen.
⇒
For the common items in the upper/lower part of the screen, refer to page 63.

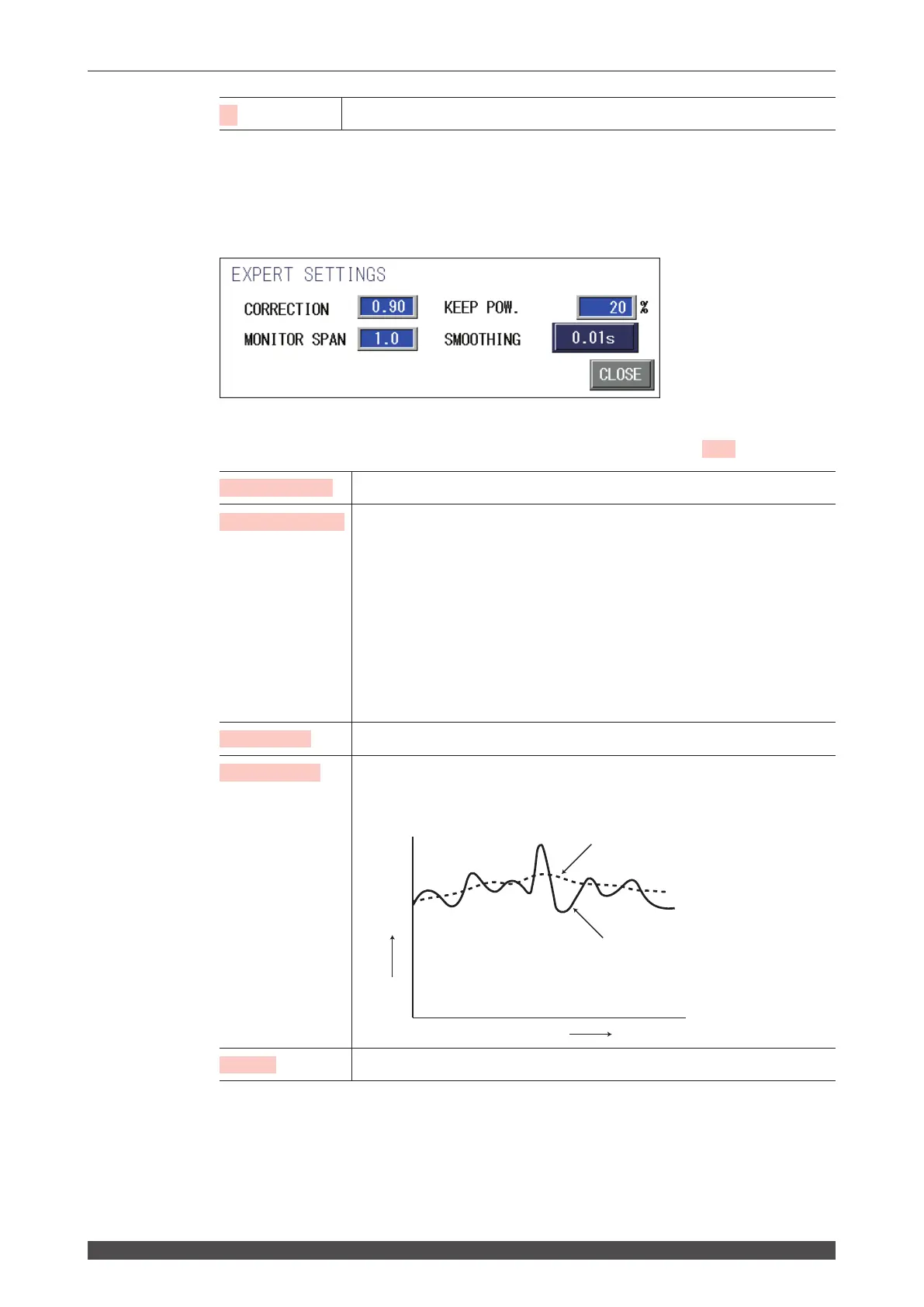

EXPERT SETTINGS
How to see the displayed items
: Settable item
CORRECTION
Sets the correction factor in the range of 0.05 to 1.00.
MONITOR SPAN
Sets the display time of the temperature waveform on the MONITOR screen.
Display time of the temperature waveform = laser emission time × MONITOR
SPAN (Setting range: 1.0 to 2.0)
<Note>
In the CW waveform, the display of the temperature waveform is nished at
the time when the following operation is performed for the laser waveform
with 500 ms.
- Laser stops by the laser stop signal input within the time set in a schedule.
- The next laser output starts.
- The output setting or number of schedule is changed.
- An error occurs.
KEEP POW.
Sets the output in KEEP operation in the range of 0 to 100%.
SMOOTHING
Sets the moving average time of the measured temperature from 0.0001,
0.001, 0.01, 0.1, or 0.2 s. When the temperature change is large and it is
hard to read, increase the set time. The variation is displayed smaller.
CLOSE
Returns to the ACTIVE HEAT CONTROL screen.
Time
Input
value
Smoothing
Input signal
