ML-5120A
4. Setting the Laser Light Output Schedule
4. Setting the Laser Light Output Schedule
On the SCHEDULE screen, the laser light output schedules are set and registered by
giving SCHEDULE numbers.
If a registered SCHEDULE number is entered, the corresponding output schedules
can be called.
The setting items of laser output time and laser output value are dierent between
xed waveform (FIX) and exible waveform (FLEX / CW).

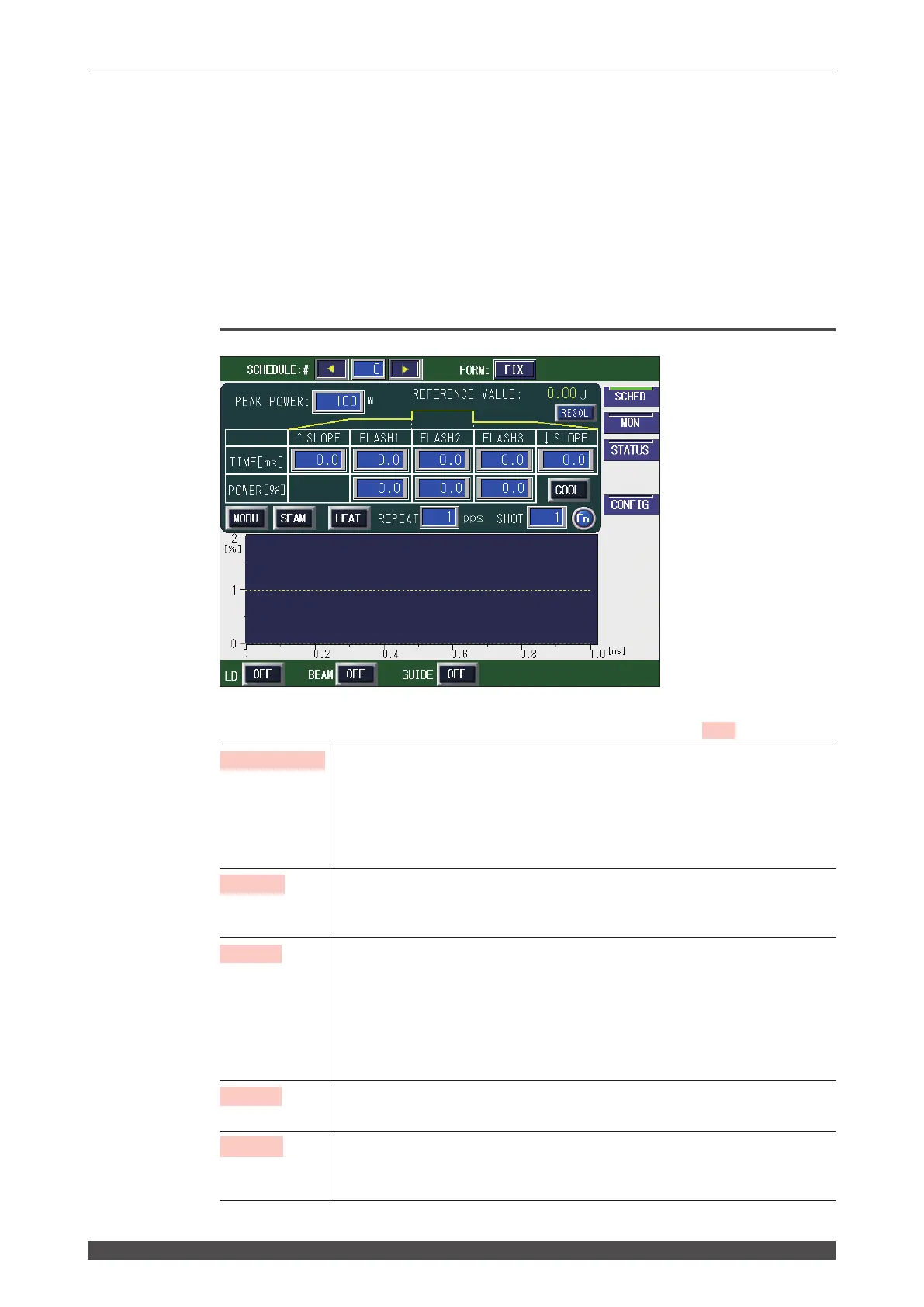

SCHEDULE Screen (Fixed Waveform (FIX))
How to see the displayed items
: Settable item
PEAK POWER
Sets the peak value of laser output (value when "FLASH1" to "FLASH3" are
100%). Regarding the actual laser output value ("FLASH1" to "FLASH3"), set
the ratio (%) to the peak value supposing that the set peak value is the reference
value (100%).
<Note>
The settable peak value of laser output is 0 to 120 W.
SLOPE
Sets the up-sloping (the laser output becomes gradually stronger) time to
"FLASH1."
After setting "FLASH1", set this time in the range of
SLOPE ≤ FLASH1.
FLASH1
Sets the laser output time TIME [ms] and laser output value POWER [%] of the
rst laser in the following range.
Laser output time (TIME [ms])
When "RESOL" is 0.1 ms: 0.0 to 500.0 ms
When "RESOL" is 0.05 ms: 0.00 to 99.95 ms (0 or 5 at the hundredths place)
Laser output value (POWER [%]): 0.0 to 200%
The time of
SLOPE is included in the output time of FLASH1.
FLASH2
Sets the laser output time TIME [ms] and laser output value POWER [%] of the
second laser in the same range as that for the rst laser.
FLASH3
Sets the laser output time TIME [ms] and laser output value POWER [%] of the
third laser in the same range as that for the rst laser.
The time of
SLOPE is included in the output time of FLASH3.
