Amada ML-5120A EU User Manual

4. Commands
169
ML-5120A
Chapter 5 Laser Processing by External Communication Control (RS-485 CONTROL)
Introduction Part Operating Part Maintenance Part Appendixes
Installation and Preparation Part

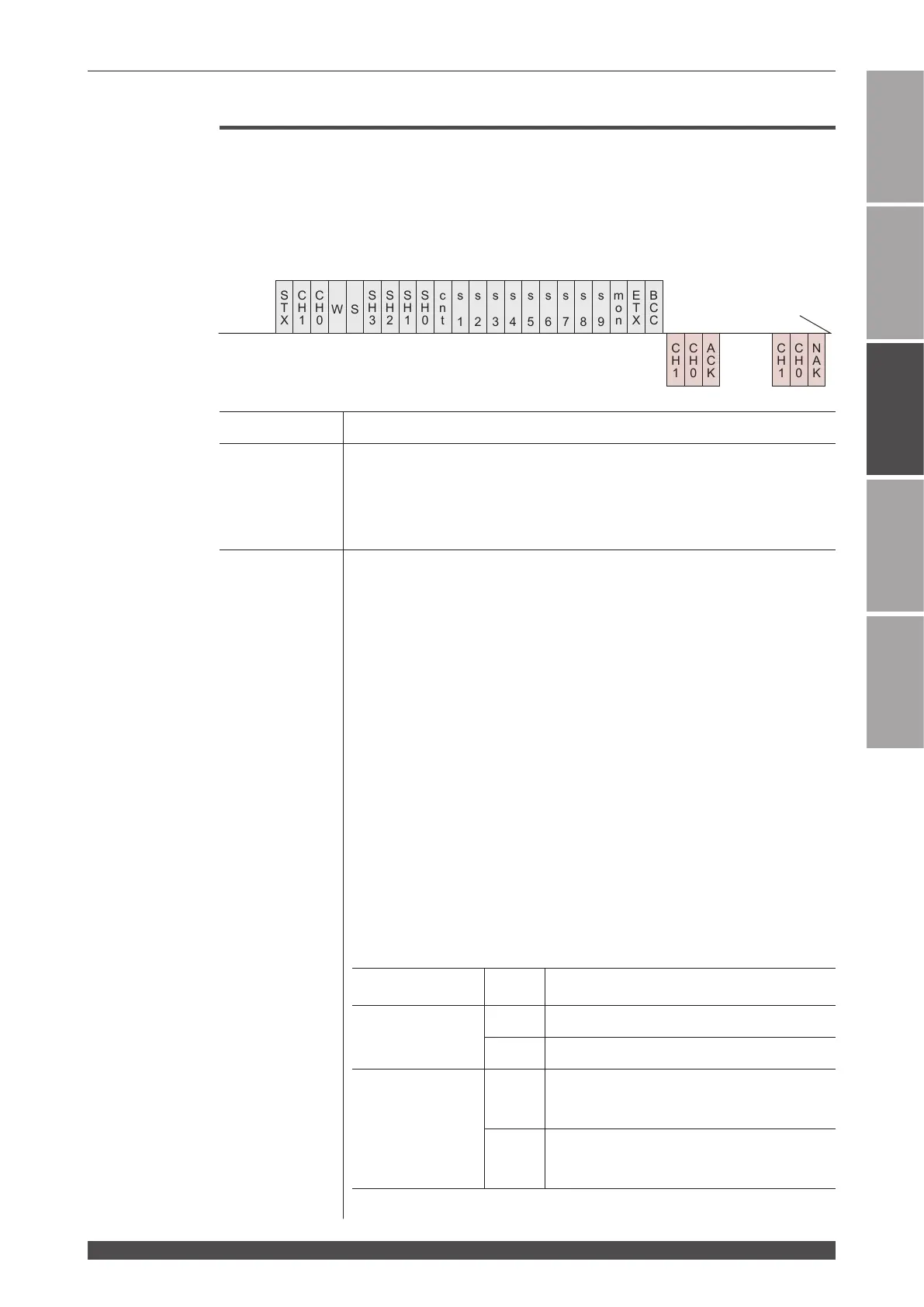

Setting the Control Method, SCHEDULE No., Safety Shutter, etc.
The command (code: WS) to set the control method, SCHEDULE No., safety
shutter, LD ON/OFF status, guide light ON/OFF status, automatic laser power
value transmission ON/OFF status, etc. by specifying equipment No. is ex-
plained below.
CH1/CH0 Equipment No. (CH1 = tens digit, CH0 = units digit)
SH3/SH2/SH1/SH0
Schedule No. (SH3 = thousands digit, SH2 = hundreds digit, SH1 = tens digit,
SH0 = units digit)
The data range is 0000 to 0255, and the schedule No. to be changed is en-
tered.
For □□□□ (space), the current schedule No. in use is entered.
cnt
Control method
0: Control by laser controller
1: Control by external input/output signals (Output schedules are set on
the laser controller.)
2: Control by external communication control
3: Maintenance mode
4: (Missing number)
5: Control by external input/output signals (Output schedules are set on
the personal computer.)
* The cnt value that can be set from the personal computer is "0" and "2." If
another value or □ (space) is set, the control method cannot be changed.
It is impossible to set "Control by external input/output signals" or "Mainte-
nance mode."
* The maintenance mode is used for our engineer to perform maintenance.
Usually, this mode is not used by customer. In the maintenance mode, the
control method cannot be changed.
* When the CONTROL keyswitch is turned OFF, the control method is re-
turned to "0: Control by laser controller" (when the control by external input/
output signals is OFF).
* To change the control method, blank all the other items.
When the control by external input/output signals (EXTERNAL CONTROL) is ON
The control by external input/output signals has priority over the other control
methods. When "0" or "2" is entered from the personal computer, the control
method is as shown in the following table. The order of setting does not matter.
Control by external
input/output signals
Set
value
Control method to be set
At OFF
0 0: Control by laser controller
2 2: Control by external communication control
At ON
0
1: Control by external input/output signals
(Output schedules are set on the laser con-
troller.)
2
5: Control by external input/output signals
(Output schedules are set on the personal
computer.)
...
data
data
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
1
2
3
4
5
W
STX CH1 CH0
W
STX CH1 CH0
W
STX CH1 CH0
R
STX CH1 CH0
R
STX CH1 CH0
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
STX
STX
S
M
S
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
NAK
Or
CH1 CH0 ETX BCC
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon rdy
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon
SH3 SH2 SH1 SH0
SH3 SH2 SH1 SH0 LA1 LA0 DT1 DT0
LA1 LA0 DT1 DT0
m
1
m
2
m
3
m
4
m
5
CH1 CH0
