54
ML-5120A
5. Connecting the Cable for the Heat Detector (Option)
5. Connecting the Cable for the Heat Detector (Option)
To use the output unit FOCH-30B series, connect the cable for the heat detector at-
tached to the output unit.
Item required
Cable for the heat detector
Operating Procedure
(1) Conrm that the MAIN POWER switch is turned OFF.

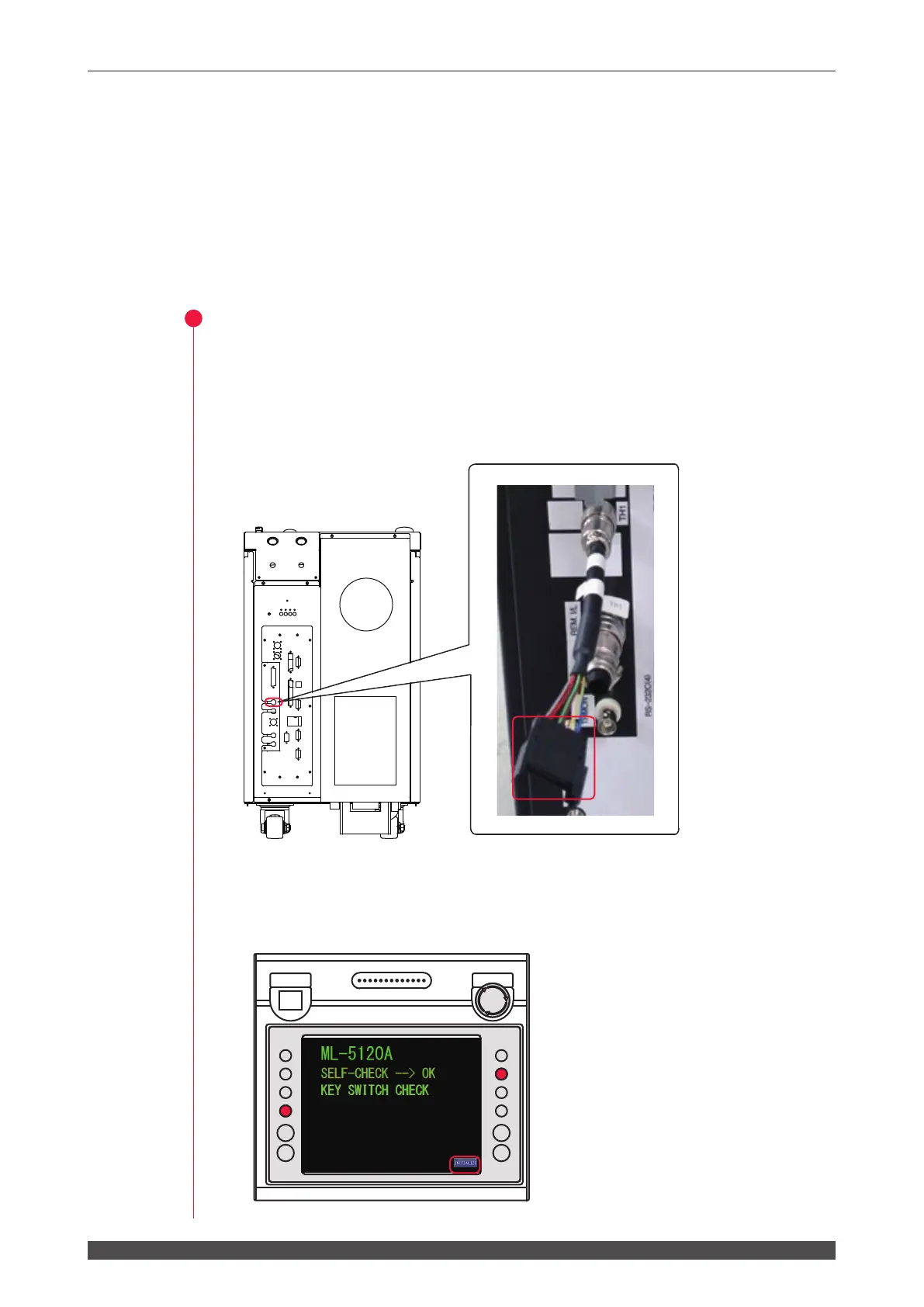

(2) Open the connector cover on the rear to connect the cable for the heat detector
to the TH1 connector.
(3) Turn OFF the CONTROL keyswitch and turn ON the MAIN POWER switch.
Power is supplied and the POWER lamp comes on.
EMERGENCY STOP
LASER
START/STOP
To Next Page
