94
ML-5120A
4. Setting the Laser Light Output Schedule

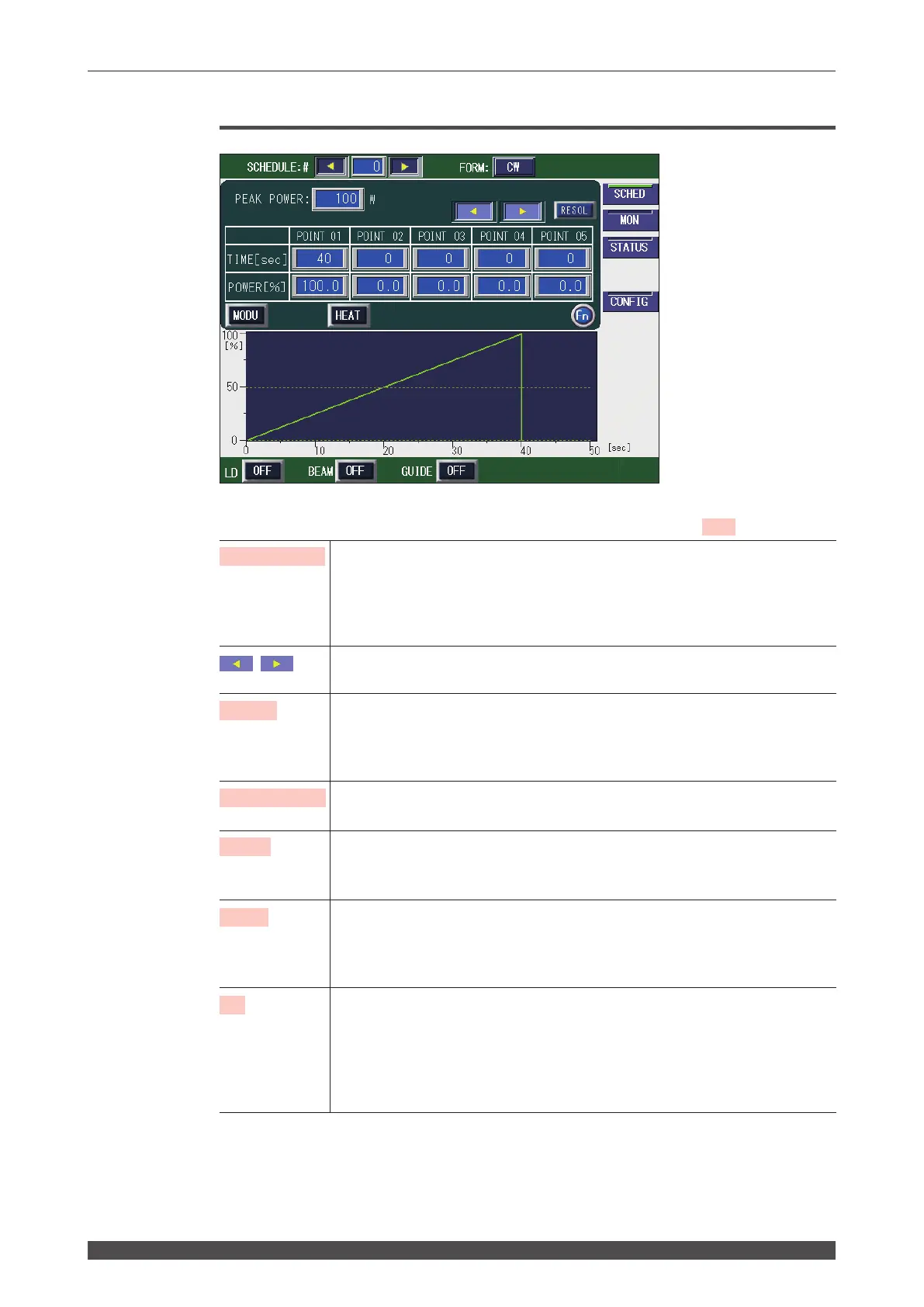

SCHEDULE Screen (Flexible Waveform (CW))
How to see the displayed items
: Settable item
PEAK POWER
Sets the peak value of laser output (value when "POWER" are 100%). Regarding
the actual laser output value ("POWER"), set the ratio (%) to the peak value sup-
posing that the set peak value is the reference value (100%).
<Note>
The settable peak value of laser output is 0 to 120 W.
Scrolls the POINT display column of POINT 01 to POINT 20 to the right and left.
When a POINT is not displayed, press this button to display it.
RESOL
When this button is pressed, the selected setting resolution can be set from 1 s,
0.1 s, 0.01 s, or 0.001 s.
When the setting resolution is changed, the currently-selected schedule is
cleared and the initial value is set.
POINT 01 to 20
Set the laser output time and laser output value (POWER [%]) at each point of
"POINT 01" to "POINT 20."
MODU
When this button is pressed, the modulation setting screen for the selected
schedule number opens. Blinks when the modulation function is enabled. The
function can be set on the MODULATION screen.
HEAT
Displayed when the active heat control function (option) is enabled.
When this button is pressed, the active heat control setting screen for the se-
lected schedule number opens. Blinks when the active heat control function is
enabled. The function can be set on the ACTIVE HEAT CONTROL screen.
Fn
When this button is pressed, a window to select function is displayed and the fol-
lowing editorial assistant functions can be used.
RESET: Initializes the currently-selected schedule.
COPY: Copies the currently-selected schedule to a temporary memory buer.
PASTE: Restores data from a temporary memory buer to the currently-select-
ed schedule.
⇒
For the common items in the upper/lower part of the screen, refer to page 63.
