4. Setting the Laser Light Output Schedule
103
ML-5120A
Chapter 2 Various Settings
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes

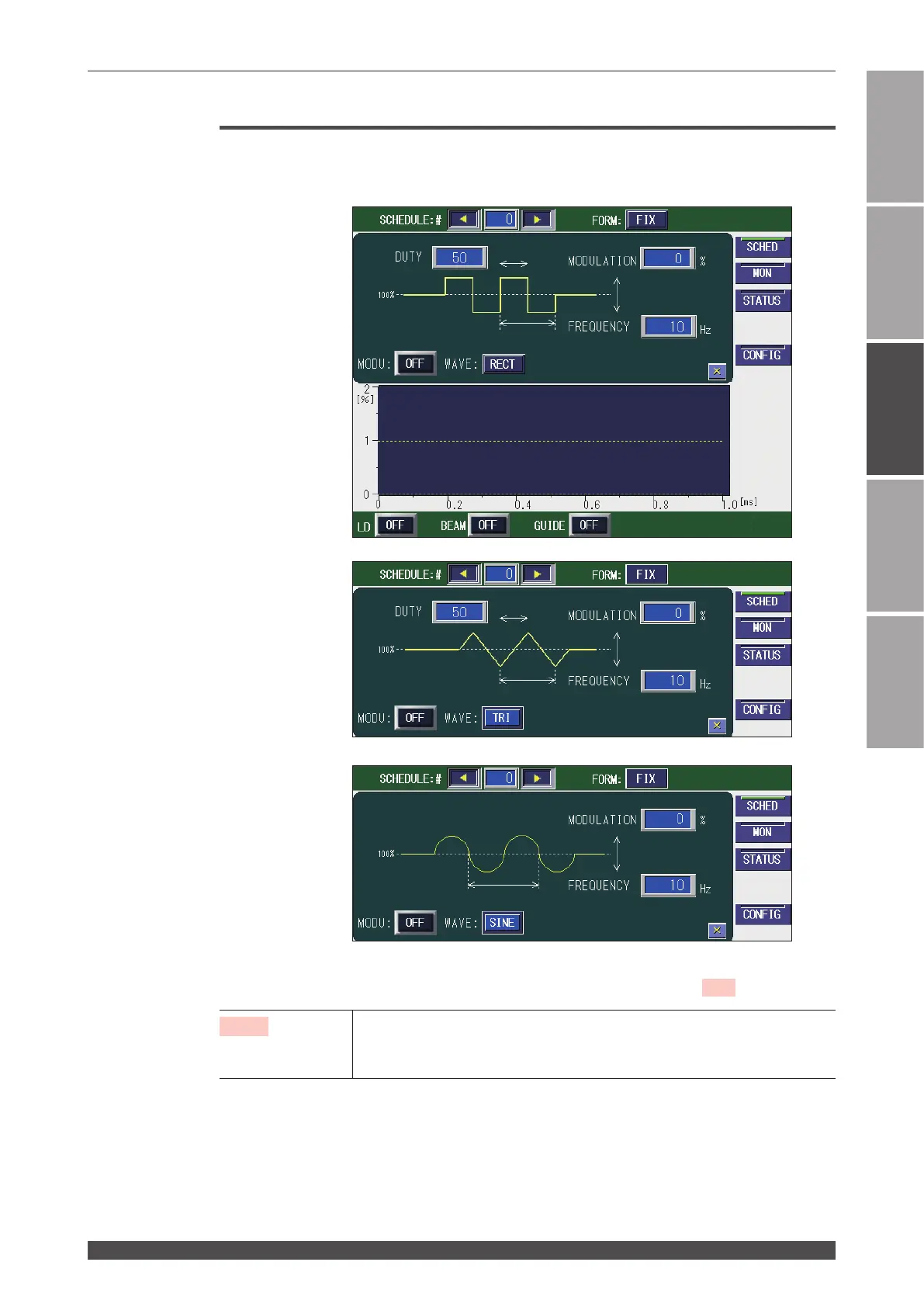

MODULATION Screen
On the MODULATION screen, the laser light modulation degree and the modulation
frequency are set.
Rectangular wave
(RECT)
Triangular wave
(TRI)
Sinusoidal wave
(SINE)
How to see the displayed items
: Settable item
DUTY
Sets the duty ratio of the laser output value.
Sets the ratio of the High period for PEAK in a cycle (%) in the range of 10 to
90.
To Next Page
