Amada ML-5120A EU - For Transportation; Precautions for using a fork lift

12
ML-5120A
Precautions for Handling
For Transportation
When transporting the laser, observe the following precautions to avoid haz-
ards.
⇒
Package the Laser when transporting it.
⇒
The worker must wear a helmet, safety shoes and gloves for safety. (Leather
gloves are recommended.)
⇒
When transporting the Laser, use a lift truck, pallet truck, etc., of at least 120 kg
allowable load.
⇒
Do not transport the Laser with its casters. The casters are for ne adjustment of
installation position.
⇒
Retract the level adjuster fully when transporting the Laser.
Precautions for using a fork lift

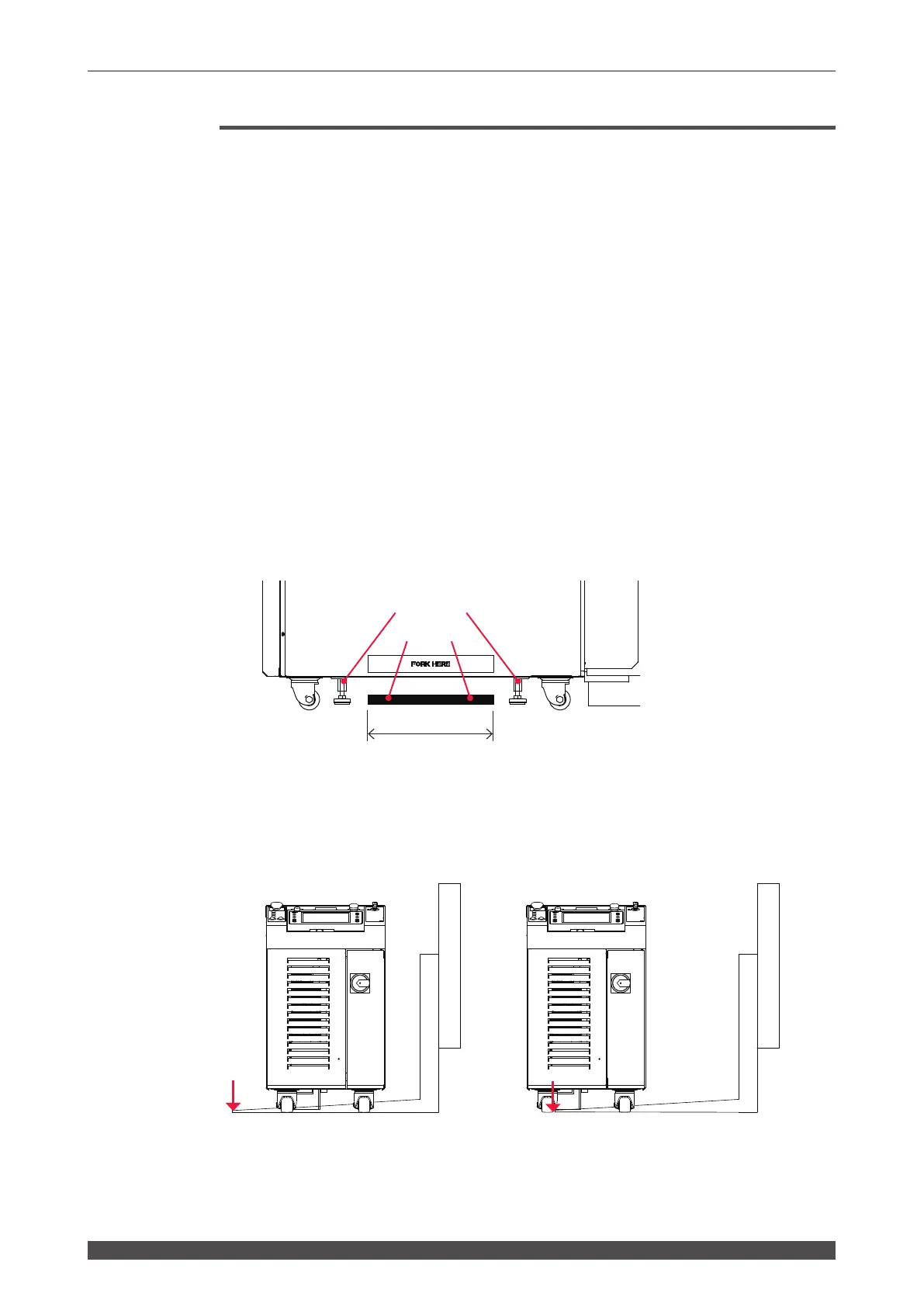

The following gure shows fork inserting positions.
⇒
As shown at right, adjust the distance between the forks; distance between the
outer sides of the forks must be 250 to 330 mm, but the fork must not hit the level
adjuster.
⇒
When transporting, belt the Laser to x and keep it horizontal.
Figures below show example forking; insert the forks fully till the points appear from
under the Laser.
Fork
Adjuster
250 to 330 mm
DO DON'T
Fork Fork
