6. Setting the Laser Light Delivery
121
ML-5120A
Chapter 2 Various Settings
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes
Operating Safety Shutters on Each Screen
In the following, the method of performing open/close operations for safety
shutters on each screen.
Perform open/close operations for safety shutters to transfer laser light.
Operating Procedure
(1) Press the "BEAM" setting button.

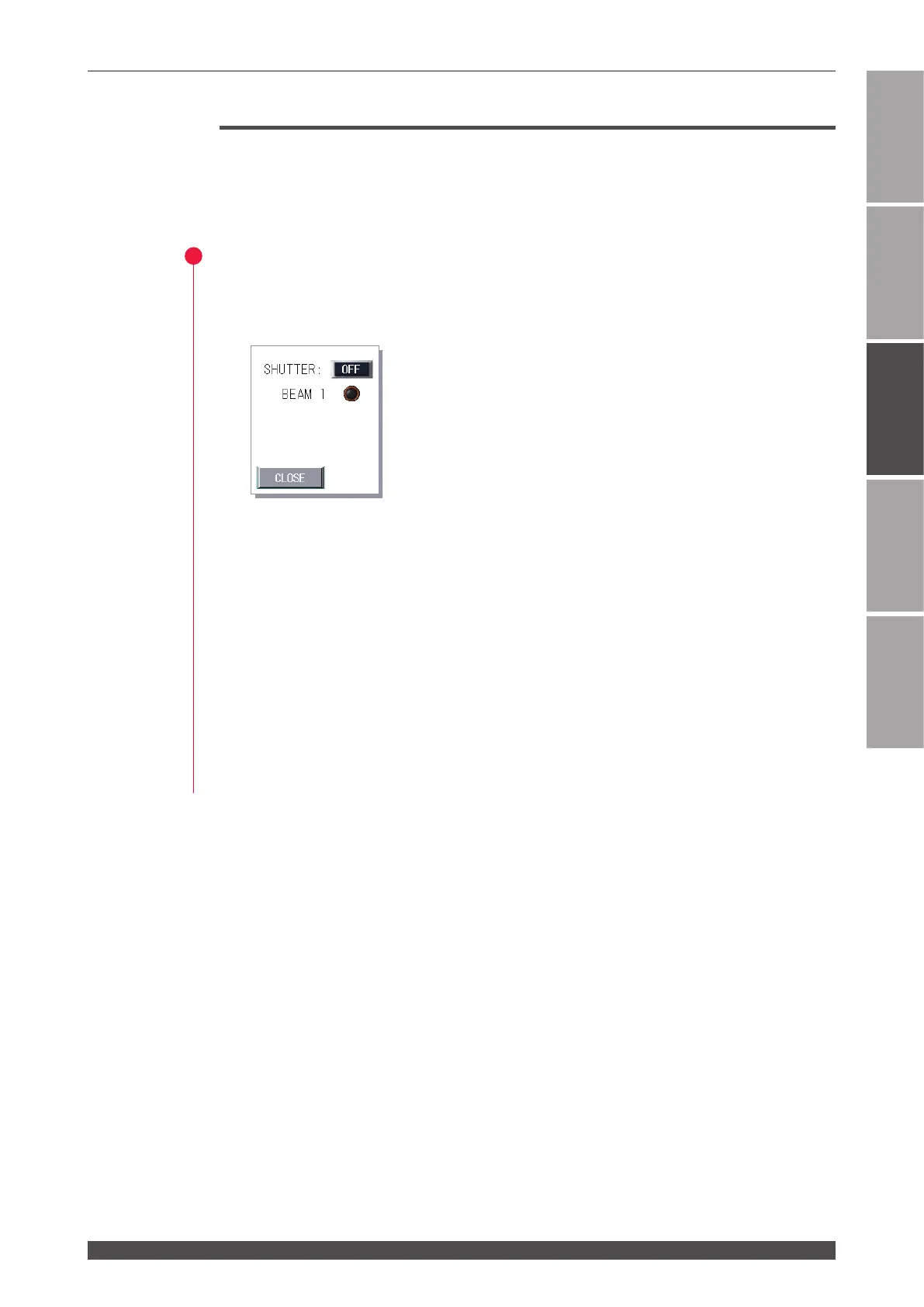

A window to set the opening/closing of the safety shutter is opened.
(2) Press the "SHUTTER" setting button to set it to ON.
"BEAM 1" to "BEAM 2" are associated with branch units 1 to 2. Setting to ON al-
lows laser light to be transmitted.
⇒
The displayed window depends on the delivery specification. "BEAM 1" is
displayed for the single delivery specification. "BEAM 1" and "BEAM 2" are
displayed for the 2-powersharing deliveries.
<Note>
For powersharings, be sure to connect optical fibers based on the number of
deliveries.
(3) Press the "CLOSE" button to close the window.
