4. Setting the Laser Light Output Schedule
<Notes>
- The laser output value (%) setting range is 0 to 200%. However, the laser output
value cannot be set exceeding the maximum value of "PEAK POWER" x 100%. If
the laser output value is set to 100%, the value set in "PEAK POWER" is selected.
- There are limitations of the total time of the laser output time FLASH1 + COOL1
+ FLASH2 + COOL2 + FLASH3 in combination with values of PEAK POWER and
REPEAT. For details, refer to "Limitations of Schedule Setting" on page 113.
- Within the range of 10% of the maximum peak power, a constant power is output
to protect the laser oscillator without reference to waveform input. For details,
refer to "Limitations of Schedule Setting" on page 113.

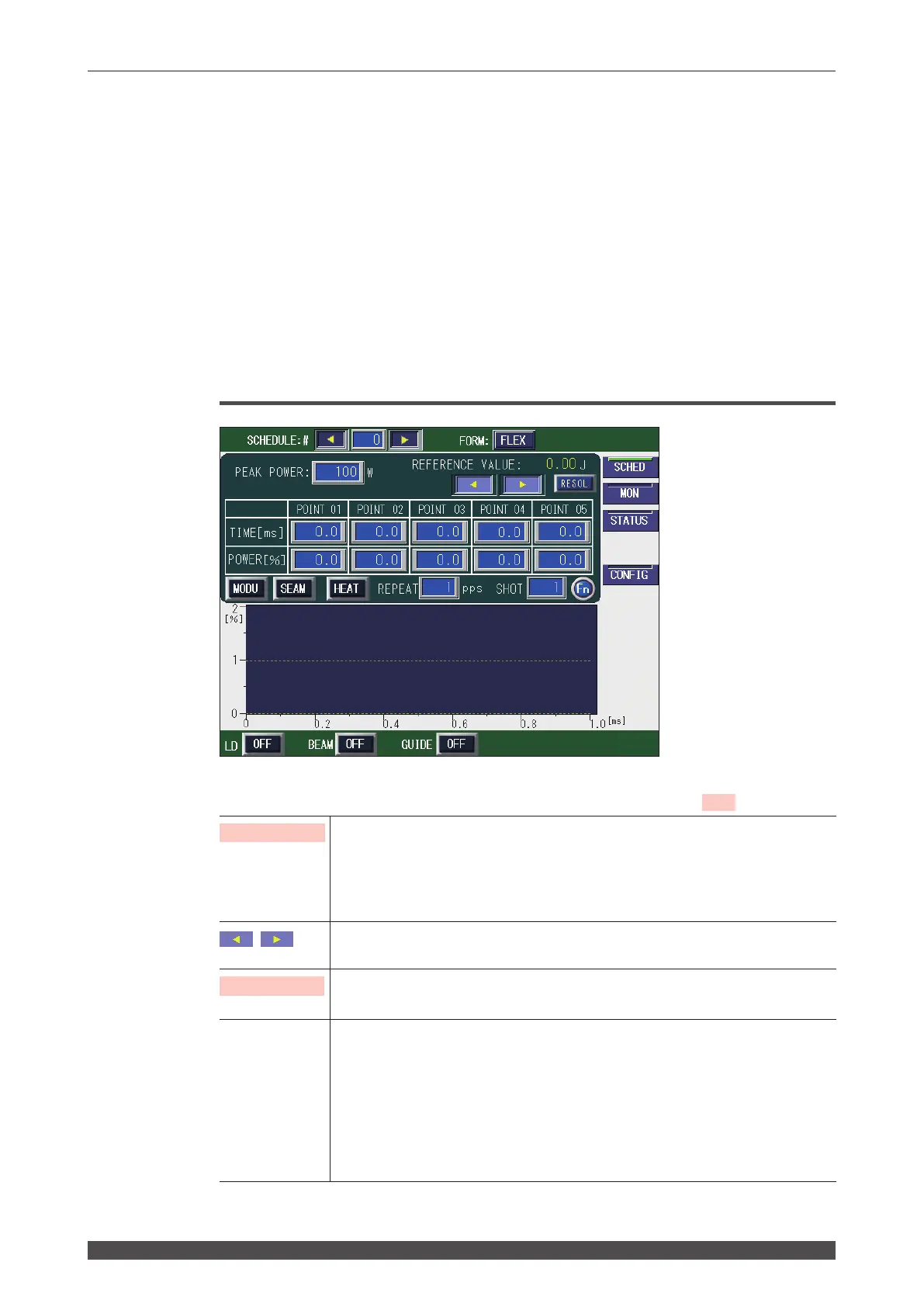

SCHEDULE Screen (Flexible Waveform (FLEX))
How to see the displayed items
: Settable item
PEAK POWER
Sets the peak value of laser output (value when "POWER" are 100%). Regarding
the actual laser output value ("POWER"), set the ratio (%) to the peak value sup-
posing that the set peak value is the reference value (100%).
<Note>
The settable peak value of laser output is 0 to 120 W.
Scrolls the POINT display column of POINT 01 to POINT 20 to the right and left.
When a POINT is not displayed, press this button to display it.
POINT 01 to 20
Sets the laser output time and laser output value (POWER [%]) at each point of
"POINT 01" to "POINT 20."
REFERENCE
VALUE
The forecast value of laser output energy (J) based on the set laser output
schedules is displayed.
<Note>
This laser calculates the laser light output energy by laser power feedback
control. However, there is a little di󰀨erence between the forecast value of laser
output energy and the measured value (actually measured value) depending on
the optical and electrical characteristics. Use the forecast value of laser output
energy as reference.
