Chapter 5 Laser Processing by External Communication Control (RS-485 CONTROL)
Introduction Part Operating Part Maintenance Part Appendixes
Installation and Preparation Part
D1/D0 Day (D1 = tens digit, D0 = units digit)
H1/H0 Hour (H1 = tens digit, H0 = units digit)
MI1/MI0 Minute (MI1 = tens digit, MI0 = units digit)
ACK or NAK
Valid only at external communication control. If there is any setting that can-
not be changed, all are invalidated and [NAK] is returned.
Reading the Control Method, SCHEDULE No., Safety Shutter, etc.

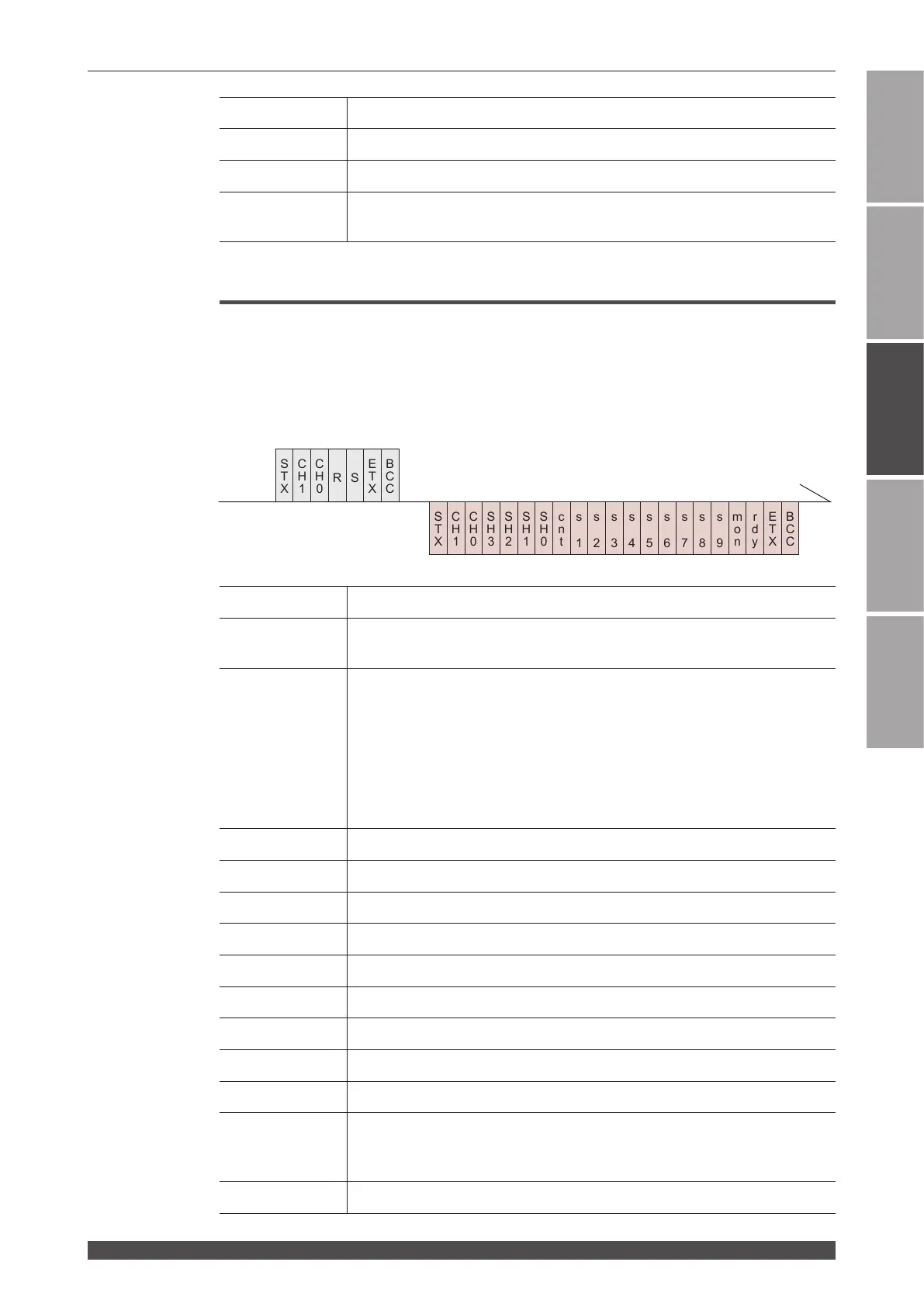

The command (code: RS) to read the control method, SCHEDULE No., safety
shutter, LD ON/OFF status, guide light ON/OFF status, automatic laser power
value transmission ON/OFF status, etc. is explained below.
CH1/CH0 Equipment No. (CH1 = tens digit, CH0 = units digit)
SH3/SH2/SH1/SH0
Schedule No. (SH3 = thousands digit, SH2 = hundreds digit, SH1 = tens digit,
SH0 = units digit)
cnt
Control method
0: Control by laser controller
1: Control by external input/output signals (Output schedules are set on
the laser controller.)
2: Control by external communication control
3: Maintenance mode
4: (Missing number)
5: Control by external input/output signals (Output schedules are set on
the personal computer.)
s1 LD (0: OFF 1: ON)
s2 Guide light (0: OFF 1: ON)
s3 Shutter (0: OFF 1: ON)
s4 Unused (xed to 0)
s5 Unused (xed to 0)
s6 Unused (xed to 0)
s7 Unused (xed to 0)
s8 Unused (xed to 0)
s9 Unused (xed to 0)
mon
Automatic laser power monitor value transmission (0: OFF 1: ON)
Each time the laser is output, "00 Laser Power Monitor-Energy, number of
waveform data, etc." on page 167 is sent.
rdy READY status (0: Laser start disabled 1: Laser start enabled)
...
data
data
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
1
2
3
4
5
W
STX CH1 CH0
W
STX CH1 CH0
W
STX CH1 CH0
R
STX CH1 CH0
R
STX CH1 CH0
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
STX
STX
S
M
S
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
NAK
Or
CH1 CH0 ETX BCC
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon rdy
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon
SH3 SH2 SH1 SH0
SH3 SH2 SH1 SH0 LA1 LA0 DT1 DT0
LA1 LA0 DT1 DT0
m
1
m
2
m
3
m
4
m
5
CH1 CH0
