44
ML-5120A
1. Installation Place

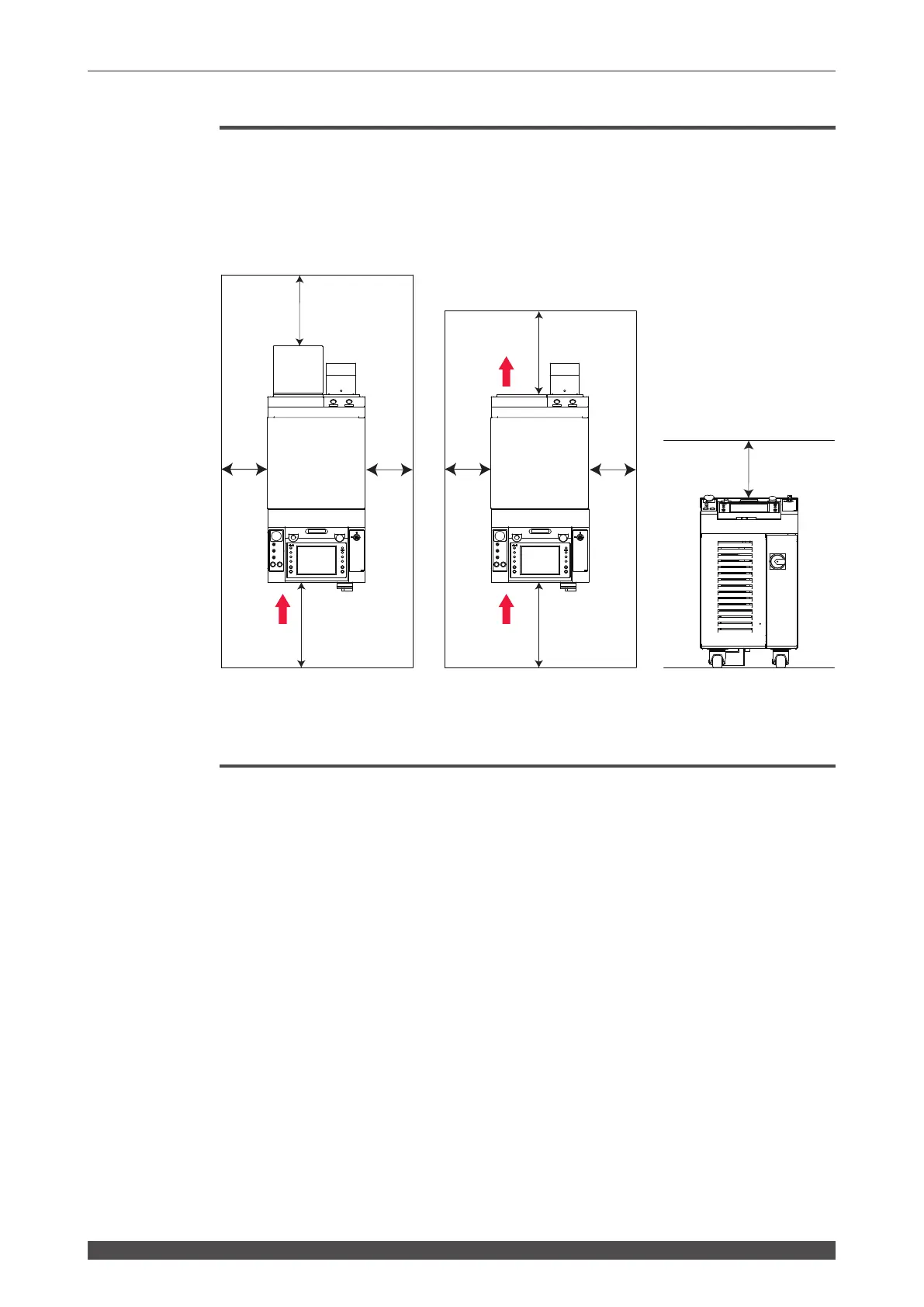

Space Required for Installation
In the installation place of this product, a space is required in the surroundings.
Install the product in a place remote from the wall as shown in the following gure.
⇒
Air ows in the direction of the red arrow shown in the following gure. Install the
product so as not to interrupt the air ow.
Environment Suitable for Installation and Precautions
⇒
In laser processing, dust and fumes are generated from workpiece. Depending
on the kind of workpiece, they may adversely affect a human body. Also, dust
and fumes from workpiece may cause staining and burning of optical parts and
lower the laser output. Furthermore, if conductive dust enters the laser equip-
ment, a short circuit accident may occur to cause malfunction. Therefore, in laser
processing, be sure to install an exhaust device such as dust collector and blow-
er in a proper position to keep a clean environment.
⇒
Use the product in a place where the ambient temperature is 10 to 35ºC (10 to
40ºC for the model with the optional cooler unit) and the ambient humidity is 20
to 80% RH and yet a sudden temperature change does not occur.
⇒
Avoid operating the product in the following places because a failure may occur.
■
Place where there is considerable dirt, dust, or oil mist,
■
where the Laser may be subjected to vibration or impact,
■
where the Laser may be exposed to chemicals,
■
where there is a nearby high noise source,
■
where moisture may be condensed on the surface of the Laser,
■
where the concentration of CO
2
, NOx or SOx is high.
FIBER.OUT 1
FIBER.OUT 2
500mm
200mm
500mm
200mm
200mm
400mm
FIBER.OUT 1
FIBER.OUT 2
200mm
500mm
200mm
With cooler unit (option)
Without cooler unit
