Chapter 5 Laser Processing by External Communication Control (RS-485 CONTROL)
Introduction Part Operating Part Maintenance Part Appendixes
Installation and
Preparation Part
Reading the Error History

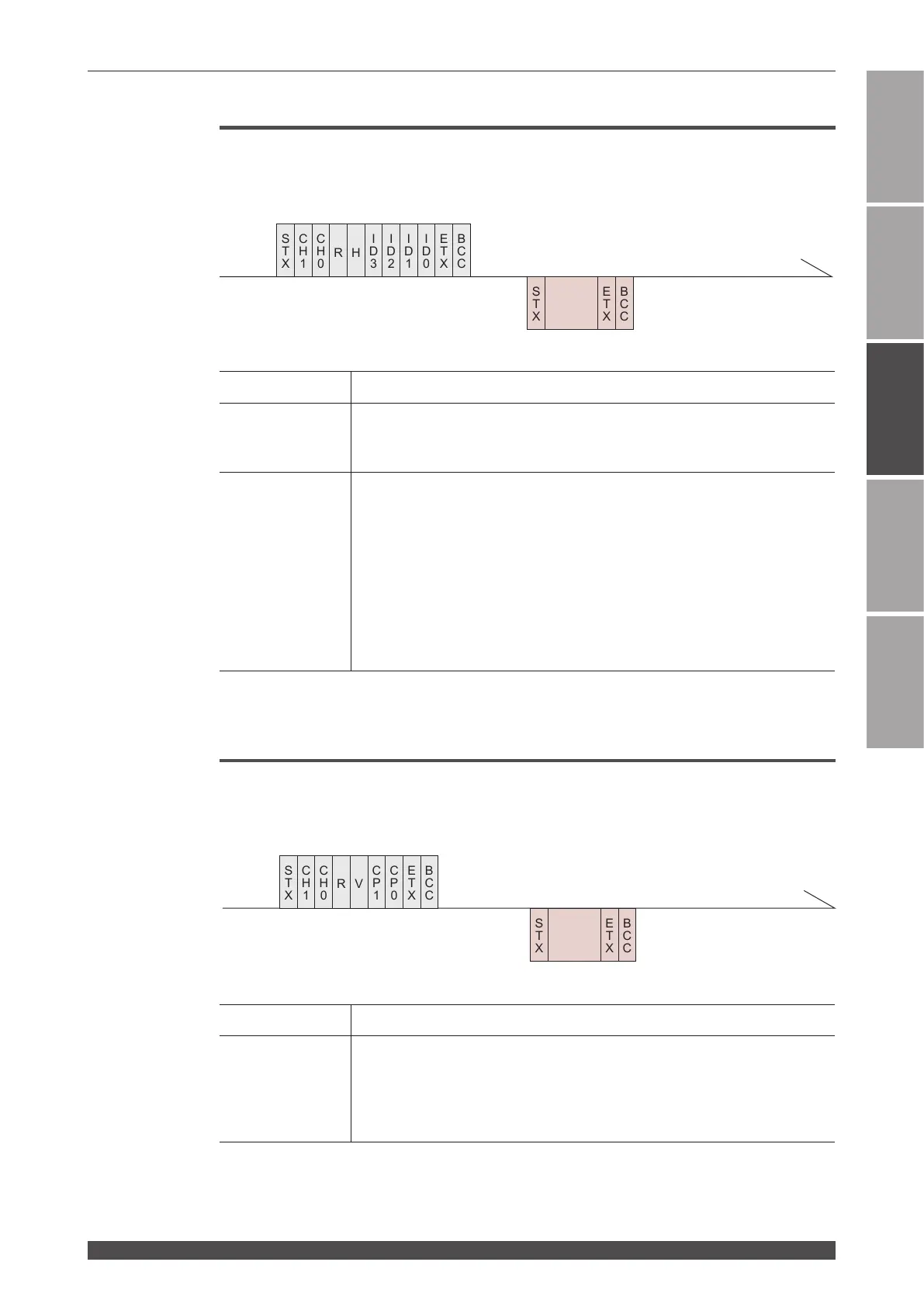

The command (code: RH) to read the error history is explained below.
CH1/CH0 Equipment No. (CH1 = tens digit, CH0 = units digit)
ID3/ID2/ID1/ID0
Index No. (ID3 = thousands digit, ID2 = hundreds digit, ID1 = tens digit, ID0
= units digit)
Ten histories of trouble are read from the specied index No.
error
Error history (yyyymmddhhmm Ennn)
yyyy Year
mm Month
dd Day
hh Hour
mm Minute
Ennn Error No.
error: (Data No.1), (Data No.2), (Data No.3), … (the last Data No.)
Insert [,] between individual data.
If the history does not exist, "000000000000 E000" is read.
Reading the Software Version
The command (code: RV) to read the software version is explained below.
CH1/CH0 Equipment No. (CH1 = tens digit, CH0 = units digit)
CP1/CP0
CPU No. (CP1 = tens digit, CP0 = units digit)
00: CPU
01: MAIN FPGA
02: SUB FPGA
• If “99” is entered, data is read in a batch.
