When a sudden temperature change occurs, for example, at a start of heat-
ing, condensation will be caused to the surface of the lens or the mirror, thereby
sticking dust there. Avoid such a sudden temperature change if possible. When
there is a possibility of condensation, turn ON the power supply of the laser. In
about 2 hours, start to operate the laser.
2. Fixing the Laser Equipment
This section explains how to x the laser equipment on the oor.
Item required
Phillips screwdriver, adjuster pressure xture, and anchor, etc.
Operating Procedure

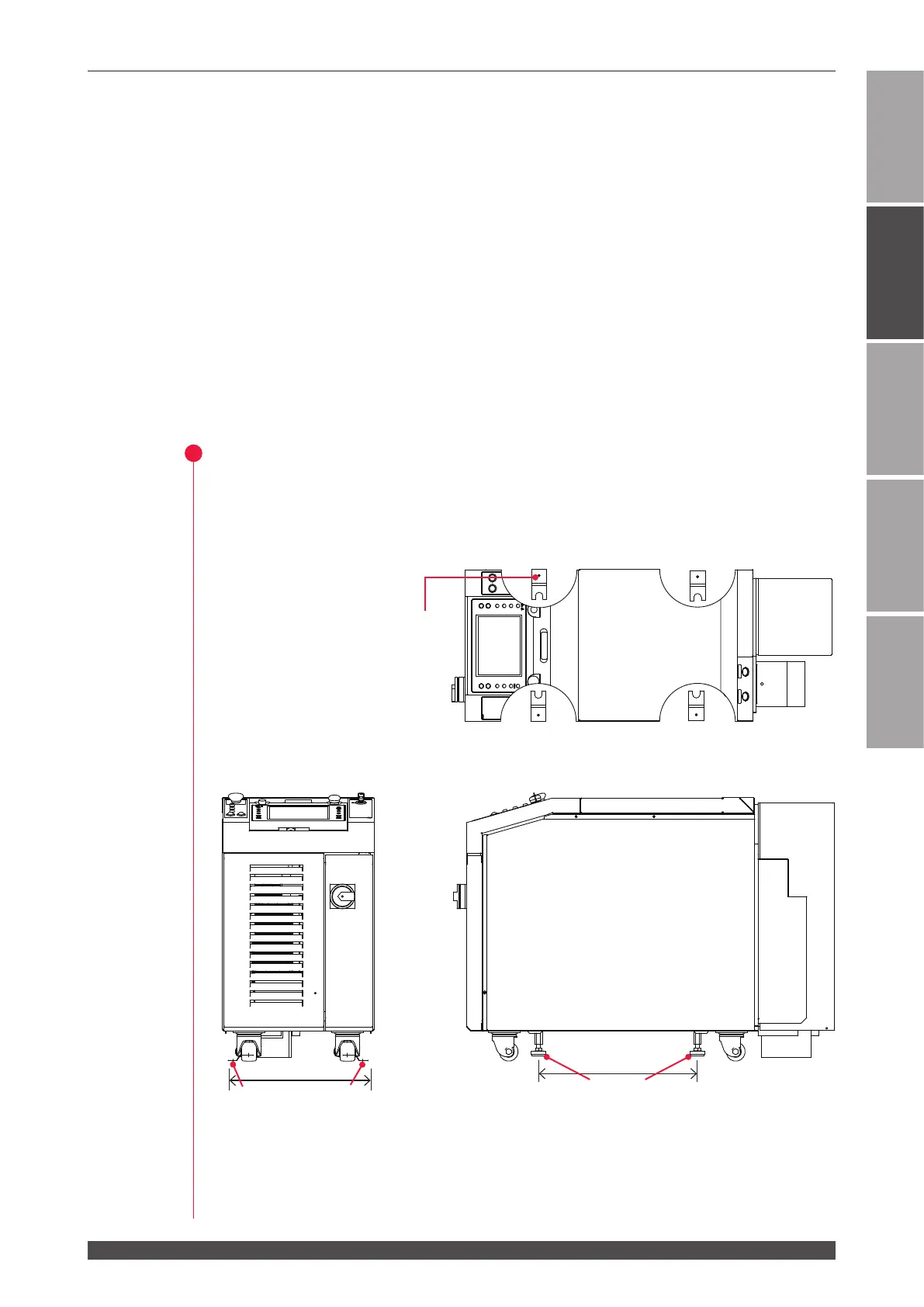

(1) Install the attached adjusters pressure xtures on the adjusters provided in 4 po-
sitions in the lower part of the main unit.
FIBER.OUT 1
FIBER.OUT 2
Adjuster pressure xture
(4 positions)
Adjuster pressure
xture
Adjuster
418
420
To Next Page
